Instructions
Hose Reel
Enclosure Retrofit
Kit
Retrofits the Series 250 Hose Reel Enclosure for use with an LD or SD Series Hose Reel.
Part No. 24C100
Important Safety Instructions
Read all warnings and instructions in this manual
and in LD, SD and XD Series Hose Reel Instruc-
tion manual 313431 and Series 250 Hose Reel
instruction manual 312495.
IMPORTANT!
Use all new parts included in this kit to replace existing
equivalent parts on hose reel. Discard replaced parts.

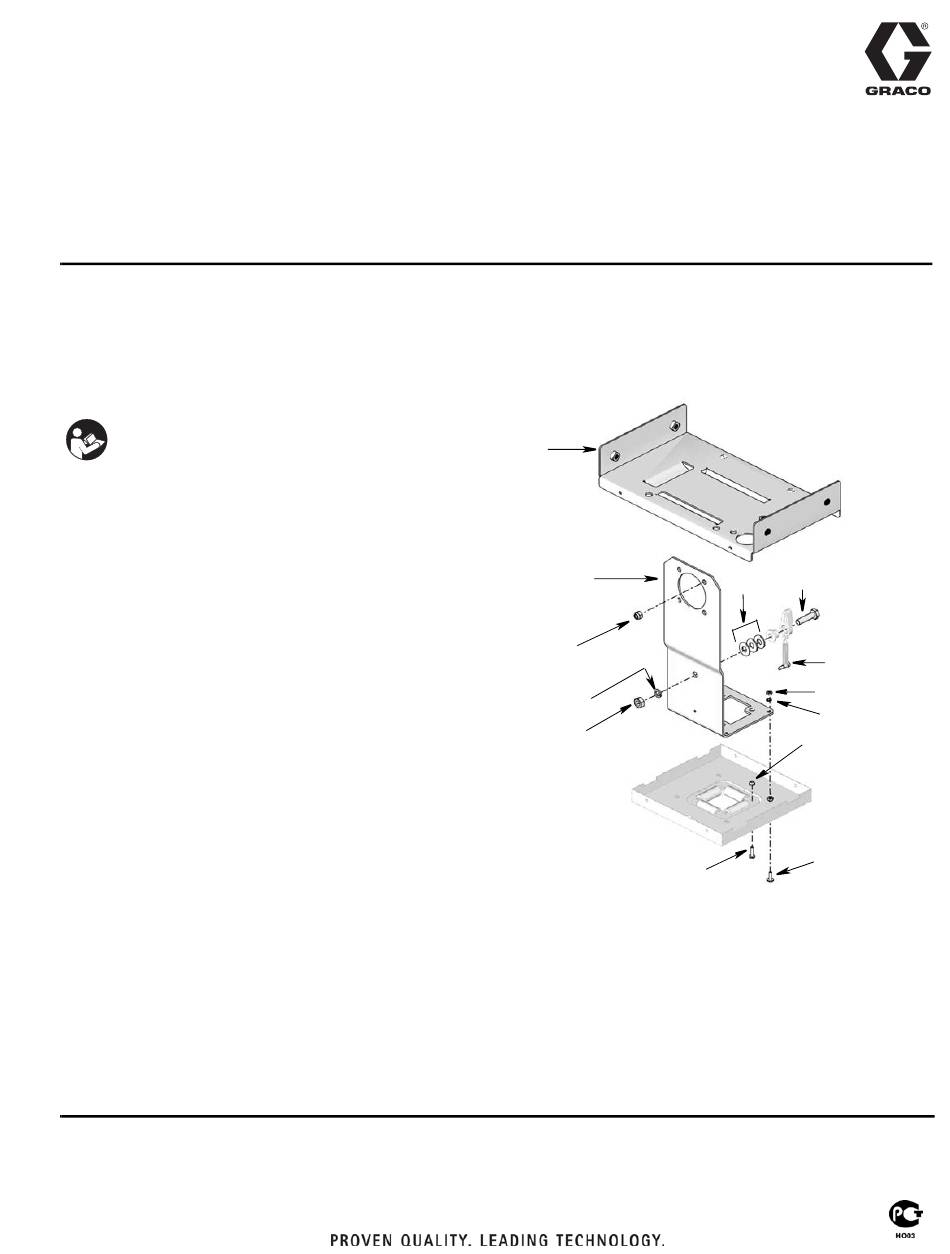

Parts
Ref
No. Description
1
ARM, hose guide
2
BASE, reel, enclosed
3
NUT, lock, #10 - 32
4
SCREW, #10 - 32 x 3/4"
5
WASHER, flat, 10 mm
6
BOLT, M10 x 40 lg
7
NUT, hex, M10
8
WASHER, lock, spring, M10
9
NUT, lock, M8
10 SCREW, #10 - 24 x 5/8"
11 NUT, hex, #10 - 24
12 WASHER, lock, #10
13 SCREW, shoulder, #10 - 24
2
Qty
1
1
4
4
3
1
1
1
4
4
5
1
1
1
5
9
8
7
4
313902A
ENG
6
13
12
11
3
10
Advertisement
Table of Contents
Related Manuals for Graco 250 Series
Summary of Contents for Graco 250 Series
- Page 1 Instructions Hose Reel Enclosure Retrofit 313902A Retrofits the Series 250 Hose Reel Enclosure for use with an LD or SD Series Hose Reel. Part No. 24C100 Important Safety Instructions Read all warnings and instructions in this manual and in LD, SD and XD Series Hose Reel Instruc- tion manual 313431 and Series 250 Hose Reel instruction manual 312495.
- Page 2 WARNING SKIN INJECTION HAZARD High-pressure fluid from dispense valve, hose leaks, or ruptured components will pierce skin. This may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment. • Do not point dispense valve at anyone or at any part of the body.
- Page 3 Instructions Disassembly WRONG 1. Relieve pressure, page 2. 2. Remove Series 250 hose reel from service. If you are unsure of how to do this, see the Series 250 instruction manual 312495 for these instructions. NOTE: Throughout these instructions, parts that are reused for the new hose reel installation and not included in this kit, are identified using alpha characters CORRECT...
- Page 4 6. Secure spool against pedestal with C-Clamp (F 8. Remove nuts (k) securing guide arm (m) to reel pedestal (n) (F . 5) and remove guide arm. These parts will not be reused. Never allow the reel to spin freely. Doing so causes the hose reel to spin out of control, which could cause serious injury if you are hit by the hose or other moving parts.
- Page 5 Assembly 8. Complete hose reel installation using the installation instructions provided in the LD, SD and XD Series Hose Reel Instruction manual. Unless otherwise noted, see F . 8, page 6 for these instructions. 1. Install pawl (q), bushing (r) and spring (s) on guide arm (1) using washers (5), bolt (6), washer (8) and Incorrect nut (7).
- Page 6 All written and visual data contained in this document reflects the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice. This manual contains English. MM 313902 Graco Headquarters: Minneapolis International Offices: Belgium, China, Japan, Korea GRACO INC.
