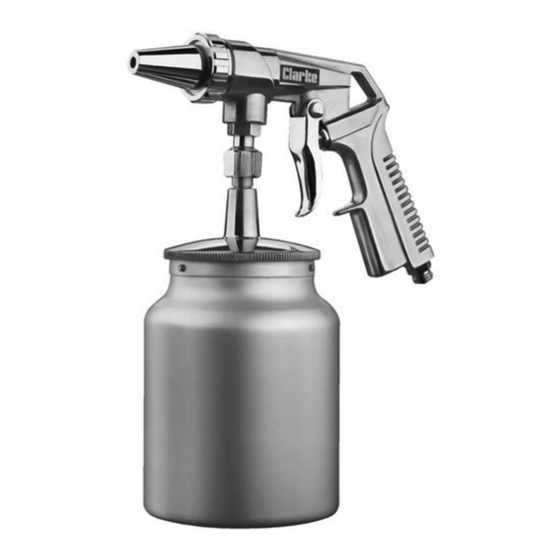

- Page 1 SPOT BLAST GUN MODEL NO: SB3 PART NO: 5091101 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS DL0124 Rev 1...
-
Page 2: Work Environment
INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Transportation And Storage
2. DO NOT connect the air supply hose with your finger on the trigger. 3. DO NOT exceed the maximum pressure for the product. 4. Check hoses for leaks or worn condition before use and ensure that all connections are secure. 5. -
Page 4: Compressed Air Requirements
A wide range of airline accessories is available including filter/regulators, high- pressure hoses (5 to 50 metres) etc. Contact your CLARKE dealer for further information or CLARKE International Service Department. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 5: Installation
INSTALLATION 1. Connect the blast gun to a regulated, dry air supply via a 1/4” BSP connector at the base of the handle. 2. The pressure required to operate the gun is determined by the grit size and the finished required, e.g: •... -
Page 6: Maintenance
MAINTENANCE WARNING: DISCONNECT THE BLAST GUN FROM THE AIR SUPPLY AND RELIEVE ANY PRESSURE IN THE GUN AND HOSE BEFORE ANY DISASSEMBLY • This blast gun requires minimum maintenance, and requires no adjustment, as the air/grit mix is factory set. The nozzle is made of hardened steel for long life, but may need replacing from time to time, as indicated by a decrease in performance. -
Page 7: Component Parts
COMPONENT PARTS 1 Main Body Air Valve 2 Container Cap Assembly 10 O-Ring Large 3 Container 11 Valve Needle 4 Inner Nozzle 12 Valve Spring 5 Nozzle 13 Circlip 6 Retaining Ring 14 Trigger 7 Air Valve Nut 15 Pivot Pin 8 O-Ring Small Parts &...
