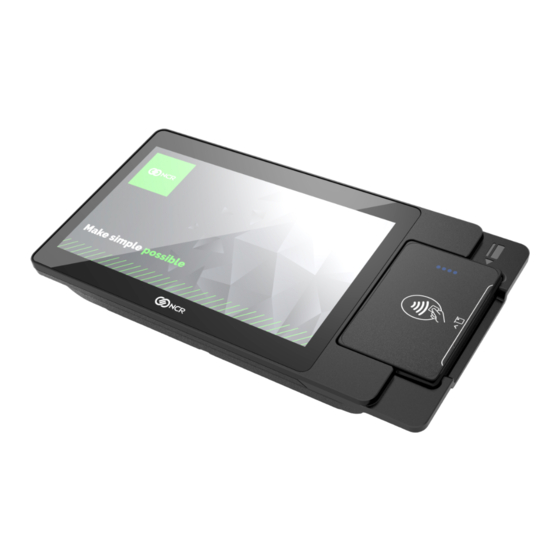

- Page 1 Site Preparation Guide NCR XL55P Payment Display (1607) BCC5-0000-5561 Issue A...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
- Page 3 Audience This book is written for hardware installer/service personnel, system integrators, and field engineers. Notice: This document is NCR proprietary information and is not to be disclosed or reproduced without consent. Safety Requirements The NCR XL55P Payment Display (1607) conforms to all applicable legal requirements.
- Page 4 If you do not have access to a computer, you may leave a voice message at: 1-800-528- 8658 (USA), or (International) +1-770-623-7400. When leaving a message, please provide a phone number and/or an email address so NCR can contact you if additional details are needed.
- Page 5 • Description of the problem, including any system error codes, error condition, or guidance to the area of failure The NCR Agent will provide you with a work order number, which serves as your Return Material Authorization (RMA). Please provide the RMA on the outside of the shipping box.
-
Page 7: Table Of Contents
Table of Contents NCR XL55P Payment Display (1607) Site Preparation Customer Responsibilities Environmental Requirements Barometric Pressure Temperature Humidity NCR XL55P Payment Display (1607) Dimensions Weight Shipping Weight and Dimensions Electrical Requirements Power Consumption AC Store Wiring Requirements Cable Routing... - Page 8 Revision Record Issue Date Remarks July 2022 First Issue...
-
Page 9: Ncr Xl55P Payment Display (1607) Site Preparation
NCR XL55P Payment Display (1607) Site Preparation This publication provides the information necessary to prepare a site to NCR specifications prior to installing an NCR XL55P Payment Display (1607). Prepare the site properly before installing the device. It is the responsibility of the customer to ensure that all installation preparations are complete and in compliance with NCR specifications and requirements and all applicable national, state, or local codes, regulations, and laws. -
Page 10: Customer Responsibilities
• Provide and install floor coverings and environment systems that limit or control static electricity build-up and discharge In general, keep the NCR equipment area free from dust, smoke, lint, and other particles. Restrict smoking, eating, and drinking around the equipment. Avoid installing... -
Page 11: Environmental Requirements
NCR XL55P Payment Display (1607) Site Preparation Environmental Requirements Barometric Pressure The display operates within the following barometric pressure conditions: • Maximum operating altitude: 3,000 m (9,843 ft.) • Operating range of pressure: 105 to 69 kPa (15.2 to 10.0 lb./in.) Temperature The display operates over the temperature ranges shown below. -
Page 12: Ncr Xl55P Payment Display (1607) Dimensions
NCR XL55P Payment Display (1607) Site Preparation NCR XL55P Payment Display (1607) Dimensions The NCR XL55P Payment Display (1607) VESA mounting pattern is 75 mm by 50 mm. Weight Component lbs. NCR XL55P Payment Display 1.45 3.20 (1607) without Moby 5500M NCR XL55P Payment Display 1.55 3.42 (1607) with Moby 5500M... -
Page 13: Electrical Requirements
AC Store Wiring Requirements The customer must provide suitable AC power for the terminals, associated equipment, and devices. We recommend a dedicated unswitched power line dedicated to the NCR equipment installation. Refer to the NCR Workstation and Peripherals AC Wiring Guide (BSTO-2115-53) for store AC wiring requirements. -
Page 14: Cable Routing
NCR XL55P Payment Display (1607) Site Preparation Cable Routing The cable can be routed towards the front or towards the back of the XL55P Payment Display. Ensure the Cable is routed along the cable routing channel.
