- Page 1 Kit Instructions XL Stand 5915–K033/K233 Issue D...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.

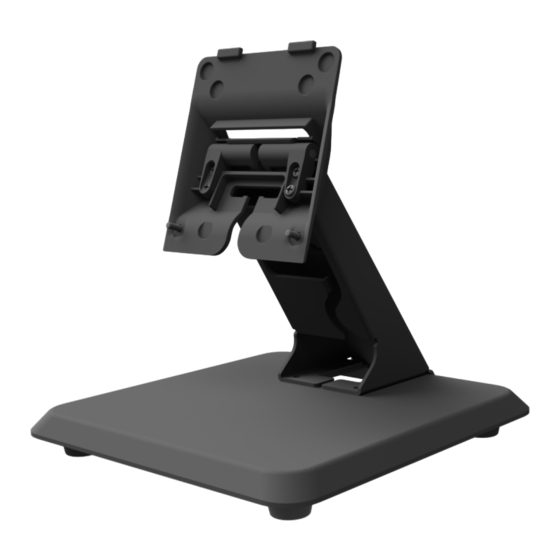

- Page 3 XL Stand This kit provides a table-stop stand for the following displays: • XL10W Display (5910) • XL15 Display (5915) • XL15W Display (5916) • 10.4" X-Series Display (5968/5985) • 15" X-Series Display (5968/5985) Kit Contents...
- Page 4 XL Stand Installation Procedure 1. Lay the display face down on a flat surface. Note: Always use a soft material (cloth, foam) to protect the display screen when placing the display face down. 2. Insert the Mounting Plate Studs (2) into the openings on the back of the display at a...
- Page 5 XL Stand 3. Rotate the stand flush into the back of the display and secure it with screws (2). Use the appropriate screws for the display. Display Screw XL10W Display (5910) 006–8625059 M4–0.7 x 12mm Flat Head, Machine Screw XL15 Display (5915) 006–8625059...
