Please use this procedure only when network primary controller is

missing or otherwise inoperable.

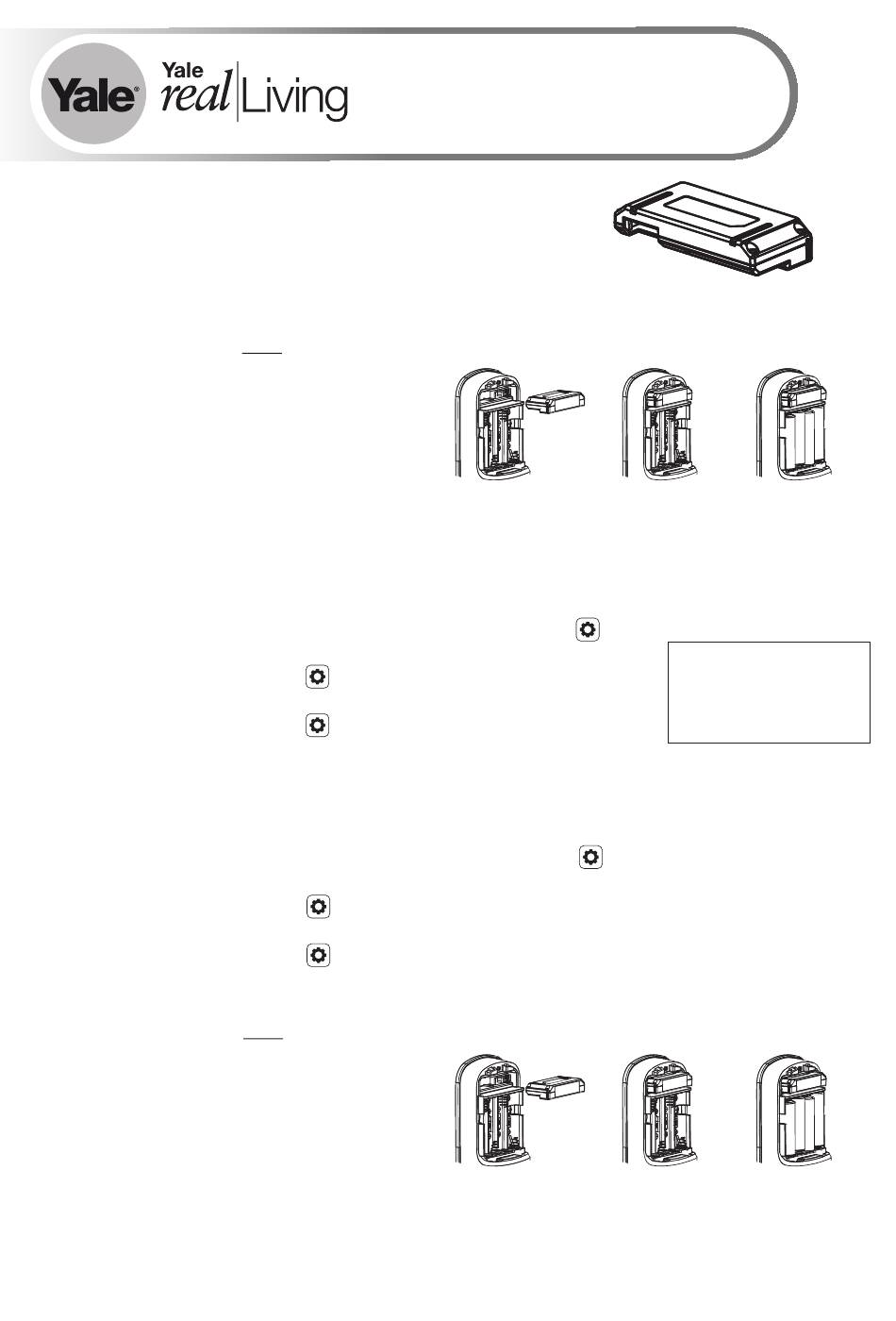

Adding a Yale Z-Wave Plus™ v2 Smart Module to your Assure Lock & Z-Wave™ System

1. Install Yale Smart Module into slot above battery compartment

IMPORTANT: Batteries must be removed before inserting Yale Smart Module:

• Remove battery cover

• Remove batteries

• Insert Yale Smart Module

• Reinstall batteries

• Reinstall battery cover

2. Open Z-Wave™ system's smart home or alarm app on your smartphone or tablet

3. If you have SmartStart* enabled with your Z-Wave™ System follow in-app prompts to add a

new device If you don't have SmartStart or are not sure, follow steps 4 - 6

4. On your lock keypad, enter your master entry code followed by the

5. Press the 7 key followed by the

6. Press the 1 key followed by the

Removing a Yale Z-Wave Plus™ v2 Smart Module from your Assure Lock & Z-Wave™ System

1. Open Z-Wave™ system's smart home or alarm app and follow instructions for removing a device

2. On your lock keypad, enter your master entry code followed by the

3. Press the 7 key followed by the

4. Press the 3 key followed by the

5. Remove Yale Smart Module from slot above battery compartment

IMPORTANT: Batteries must be removed before removing Yale Smart Module:

• Remove battery cover

• Remove batteries

• Remove Yale Smart Module

• Reinstall batteries

• Reinstall battery cover

6. If you're adding a new Yale Smart Module, follow instructions included with it

*SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave QR Code present on the product with a

controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10

minutes of being switched on in network vicinity.

Yale

Z-Wave Plus™ Smart Module

Installation Guide

icon

If prompted, scan QR code

icon

P/N AYR-MOD-ZW3-MNL-0015 Rev A

Table of Contents

Summary of Contents for Yale real living Z-Wave Plus YRD642-ZW3

Page 1 Please use this procedure only when network primary controller is missing or otherwise inoperable. Adding a Yale Z-Wave Plus™ v2 Smart Module to your Assure Lock & Z-Wave™ System 1. Install Yale Smart Module into slot above battery compartment IMPORTANT: Batteries must be removed before inserting Yale Smart Module: •...
Page 2 20cm between the radiator & your body. 24/7 Tech Support: 1-855-492-0505 • www.yalehome.com Yale® is a registered trademark of ASSA ABLOY Residential Group. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only.
Page 3 • Double check door measurements • Install your Assure Lock • Program your Assure Lock • Add your Assure Lock to your smart home system or Yale Access app if purchased with Yale Smart Module or Yale Access Upgrade Kit...
Page 4 What's In The Box Yale Smart Module (with select models) Let's Get Started Optional Installation Guide Fire Kit Parts and Door Template (Required for Fire Rated Openings) Touchscreen Keypad Loosen screw to remove cover Battery Cover Mounting Plate Inside Lock...
Page 5 Remove Existing Deadbolt Do not discard old lock hardware until Assure Lock has been successfully installed. Frame P/N YRD642-MNL-0036 Rev A Part of ASSA ABLOY...
Page 6 Check Door Measurements And Make Adjustments If Needed Door Checker Use door checker from installation guide envelope to verify your door measurements and make any needed adjustments. Check Your Door Guide Let's Get Started New Door Marking Template With the door checker, use the template from installation guide envelope to prep a new door that has not been predrilled for hardware.
Page 7 Install Deadbolt and Strike Plate *2-3/8" Backset, default *Deadbolt position is based on For Deadbolt backset. Choose position Actual Size appropriate for your door. Reference Door Checker measurements E and F. AYRDB-DRIVE Adjustable Drive-In Deadbolt available for purchase *2-3/4" Backset, optional For Strike Plate Actual Size Choose...
Page 8 Install Touchscreen Keypad Inside of Door Outside of Door Door face hole must be at least 2-1/8". If hole is too small, a door lock installation kit or jig should be used to increase hole size. Bolt must be in retracted (unlocked) position.
Page 9 Install Inside Mounting Plate Actual Size optional 3 of 3 To be used with Fire Cup for Fire Rated openings P/N YRD642-MNL-0036 Rev A Part of ASSA ABLOY...
Page 10 Attach Cable This Side Up mark Make sure cable is securely attached Use cable hooks for proper routing, when possible. Position wires carefully when not using hook. Do not pinch wire. P/N YRD642-MNL-0036 Rev A Part of ASSA ABLOY...
Page 11 Install Inside Lock Horizontal Actual Size Make sure thumbturn is vertical. If thumbturn does not move freely, refer to "Hardware Troubleshooting". P/N YRD642-MNL-0036 Rev A Part of ASSA ABLOY...
Page 12 Test Mechanical Operation If thumbturn operation fails, check the installation beginning with Step 7. P/N YRD642-MNL-0036 Rev A Part of ASSA ABLOY...
Page 13 Included with select models optional Inside of Door Batteries must not be installed prior to inserting and/or removing Yale Smart module. For more information about Yale Smart modules and smart home features visit US.YaleHome.com/Smart P/N YRD642-MNL-0036 Rev A Part of ASSA ABLOY...
Page 14 Bolt must be in retracted (unlocked) position before installing batteries. Inside of Door Press the Yale logo to wake the lock. You will be guided through setup by audio instructions on the lock. Additional entry codes and further programming can be done through the Settings Menu.
Page 15 Using Your Lock Touchscreen Keypad Press to wake keypad or lock door Location of RFID Signal Receiver Press to return to previous Settings Menu Press to enter Enter Master Entry Code or unlock and press to access Settings Menu Low Battery All Code Lockout Indicator Indicator...
Page 16 Creating Master Entry Code The Master Entry Code is used to change lock settings. A security best practice is to set your Master Entry Code with 6 or more digits and create a separate code that is used daily to lock and unlock the door. "Register Master Code.
Page 17 Creating Entry Codes Master Entry Code must be created ﬁrst. *Max Entry Codes = 250 with Smart Module; 25 without. "Menu Mode, press the gear key Enter Master to continue." Entry Code Press Press Press Enter 4-8 digit Entry Code Press Press Press...
Page 18 Deleting Entry Codes "Menu Mode, enter number, press the gear key Enter Master to continue." Entry Code Press Press Press Press Press Deleting one Entry Code: To delete all Entry Codes: To delete one Entry Code, (Does not delete you must enter the Entry Master Entry Code) Code you wish to delete.
Page 19 Unlocking Door with Entry Codes Enter Entry Code Press Unlocking Door with RFID (YRD642 ACC ONLY) See "Customizing YRD642 Lock Using Settings Menu" page 19 to conﬁgure RFID communication. Touch and hold fob or card to P/N YRD642-MNL-0036 Rev A Part of ASSA ABLOY...
Page 20 Setting Deﬁnitions Settings Default Setting Deﬁnition The Master Entry Code is used for programming and feature settings. It must be created prior to Creation Master Entry Code required* programming the lock. The Master Entry Code will also operate (unlock/lock) the lock. This feature is enabled by the Master Entry Code.
Page 21 Customizing YRD642 ACC ONLY Lock Using Settings Menu *Master Entry Code Required 1. Press Yale logo to wake up lock 2. Enter Master Entry Code* followed by icon. Lock Response: "Welcome to the Settings Menu. Press each number to hear available settings and then press the settings icon to enter."...
Page 22 Troubleshooting Symptom Suggested Action Keypad becomes active when the Yale logo is pressed. • Verify contact with the logo. If keypad numbers are visible, check they respond when pressed. • Lock does not respond – Check batteries are installed and oriented correctly (polarity) in battery case.
Page 23 1. Remove plate from door frame with a manual screwdriver. (Using an electric driver may strip screw For help with misalignments, watch our door alignment heads or enlarge screw holes.) video: US.YaleHome.com/en/support/yale-assure-lock- faqs/electronic-lock-installation/ P/N YRD642-MNL-0036 Rev A Part of ASSA ABLOY...
Page 24 Resetting Lock to Factory Defaults When lock is reset to factory defaults all Entry Codes (including the Master Entry Code*) are deleted and all programming features are reset to original default settings (see below). 1. Remove battery cover and batteries. 2.
Page 25 Ÿ Consult the dealer or an experienced radio/TV technician for help. Ÿ Warning: Changes or modiﬁcations to this device, not expressly approved by Yale Home could void the user's authority to operate the equipment. Industry Canada: IC ID : 11626A-YRD622BLEV1 This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.
Page 26 Yale Locks Z-Wave Plus ™ v2 System Integrators Guide Yale Assure Electronic Deadbolts YRD216-ZW3, YRD226-ZW3, YRD256-ZW3, YRC216-ZW3, YRC226-ZW3, YRC256-ZW3, YRD652-ZW3, NF-YRD622-ZW3, NF-YRD612-ZW3, YRC652-ZW3, NF-YRC622-ZW3, NF-YRC612-ZW3, YRD622-ZW3, YRD642-ZW3, YRC622-ZW3, YRC642-ZW3, YRD410-ZW3, YRD420-ZW3, YRD430-ZW3, YRD450-ZW3 Document Revision: 2.0 March 2023...
Page 27: Table Of Contents
Contents Revision History ..................4 Yale Z-Wave Plus ™ Product Info ..............6 Network Operations ..................6 Enroll/Add device to network (SmartStart) ........... 6 Enroll/Add device to network (Classic Inclusion Mode) for Assure Lock [YRC/D216/226/256/622/642/652, NF-YRC/D612/622] ........6 Enroll/Add device to network (Classic Inclusion Mode) for Assure 2 Lock [YRD410/420/430/450] ................
Page 28 Command Class Application Status, Version 1 ..........29 Command Class Transport Service, Version 2 ..........29 Command Class Supervision, Version 1 ............29 Command Class Indicator, Version 3* ............29 Command Class Basic, Version 2* ............. 30 * This command class requires security.
Page 29: Revision History
Revision History Rev. Details Initial Release Made the following updates: • Added Command Class Clock section. • Added Clock Report to the Association Group Info commands list. • Marked Time as a secure command class. • Added the following note to Time, Time Parameters, and Clock command classes: “If the controller does not support either the Time CC, Time Parameters CC, or Clock CC, then scheduled users will not have access.”...
Page 30 • Re-added Scheduling Alarms • Fixed Door State Alarm value...
Page 31: Yale Z-Wave Plus ™ Product Info
Yale Z-Wave Plus ™ Product Info Manufacturer ID: ASSA ABLOY (0x0129) Z-Wave ™ Device Type: Door Lock Keypad Z-Wave Role Type: Listening Sleeping Slave (LSS) ™ Network Operations Enroll/Add device to network (SmartStart) SmartStart enabled products can be added into a Z-Wave network by scanning the ™...
Page 32: Enroll/Add Device To Network (Classic Inclusion Mode) For Assure 2 Lock [Yrd410/420/430/450]
When the Yale lock is unenrolled/excluded from the network through the device menu mode, any changes previously made to the user code database and configuration settings will be retained, as opposed to set back to defaults.
Page 33: Supported Command Classes
The supported command classes are listed below, and certain sections contain details about operations that may be specific to the Yale lock. If a section is blank, then please refer to the Z-Wave ™...
Page 34 0x46C2 for YRC226-ZW3 (Interconnected Keyed Touch Screen ▪ Deadbolt) 0x46C5 for YRC256-ZW3 (Interconnected Keyless Touch Screen ▪ Deadbolt) 0x4DD5 for YRD652-ZW3 (2 Generation Keyless Touch Screen ▪ Deadbolt) 0x4DD2 for NF-YRD622-ZW3 (2 Generation Keyed Touch ▪ Screen Deadbolt) 0x4DD1 for NF-YRD612-ZW3 (2 Generation Keyed Push Button ▪...
Page 35: Command Class Security, Version 1
Command Class Device Reset Locally, Version 1* * This command class requires security. The Yale door locks covered in this guide can be reset to their factory default settings by manually resetting the lock or by BLE command via app for BLE locks (by following the procedure outlined in the specific lock’s manual).
Page 36: Command Class Power Level, Version 1
Command Class Version, Version 3* * This command class requires security. The Yale Real Living locks are a multi-processor system with 1 additional firmware target. All processors can be updated through the Firmware Update Meta Data command class. The firmware targets are numbered as follows: •...
Page 37: Command Class Battery, Version 1
(keypad lock/unlock, RF lock/unlock, etc.), controller sends Get Battery command, or the unsolicited battery report was triggered. Yale locks will generate an unsolicited Battery Report every 8 hours if a node is listed in the Lifeline Group.
Page 38: Command Class Door Lock, Version 4
Door Unsecured (0x00), and Door Unsecured with timeout (0x01). When Auto Relock is enabled, the lock will automatically relock after all unlock events. Yale Z- Wave Plus ™ locks do not support any of the “Door Unsecured for outside Door Handles”...
Page 39 1 of this command class. For version 2, the Master Code Set/Get/Report commands must be used. Yale locks do not support bulk commands (setting or getting multiple user codes at once) or CRC functionality for this command class. It should be noted that the lock’s operation mode (called “User Code Keypad Mode”...
Page 40 Table 3 - User ID Status User Code CC v1 vs v2 User ID Status User Code CC v1 Set User Code CC v1 Report Value Description Value Value Available 0x00 0x00 Enabled / Grant Access 0x01 0x01 0x02 Disabled 0x03 0x03 Messaging:...
Page 41 User ID User Code CC v2: Extended User Code CC v2: Extended User Status User Code Set Code Report Value Description Value Value Available 0x00 0x00 Enabled / 0x01 0x01 Grant Access Disabled 0x02 0x02 Messaging: The user code is accepted, but the lock does not grant access to the...
Page 42: Command Class Time Parameters, Version 1
Command Class Time Parameters, Version 1* * This command class requires security. The controller must set the Time Parameters in the lock anytime the lock loses power. If the time is not set by the controller, then user codes with schedules applied to them cannot be granted access.
Page 43: Command Class Firmware Update Meta Data, Version 5
Command Class Firmware Update Meta Data, Version 5* * This command class requires security. Yale Z-Wave Plus ™ locks support over-the-air (OTA) upgrading of 2 firmware targets: 1. Firmware Target 0: Z-Wave chip ™ 2. Firmware Target 1: The lock main processor Firmware Target 0 is used to determine the correct Z-Wave ™...
Page 44: Command Class Association, Version 2
This command class has been implemented per the Z-Wave™ Specification. Command Class Multi Channel Association, Version 3* * This command class requires security. This command class has been implemented per the Z-Wave™ Specification. Yale locks support only one group, which can contain up to 5 nodes.
Page 45: Command Class Association Group Info, Version 3
Command Class Association Group Info, Version 3* * Command Class Requires Security Yale locks support the Lifeline Association Group. Table 5 - Association Table Group ID Maximum Nodes Description Commands • Command_Class Battery Battery_Report • Command_Class_Configuration Configuration_Report • Command_Class_Notification Notification_Report •...
Page 46 The following are the actions to trigger the reports: Table 6 – Lifeline Report Trigger Table Report Command RF Trigger Manual Trigger Battery Report Any RF Lock Operation when lock is Any manual/keypad Lock Operation under the battery thresholds when lock is under the battery thresholds or Power Cycle Lock Configuration Report Configuration Set...
Page 47: Command Class Notification, Version 8
Command Class Notification, Version 8* * This command class requires security. Table 7 - Notification Table Alarm Alarm Notification Alarm Reports Description Event type Level Type 0x01 Deadbolt jammed while locking 0x06 0x0B Deadbolt Jammed 0x09 0x02 Deadbolt jammed while unlocking 0x06 0x0B 0x (01 –...
Page 48 Manual Unlock 0x16 0x01 By key cylinder or inside thumb turn 0x06 0x02 RF Operate Lock 0x18 0x01 by RF module 0x06 0x03 RF Operate Unlock 0x19 0x01 by RF module 0x06 0X04 Auto Lock Operate 0x1B 0x01 Auto re-lock cycle complete, locked. 0x06 0x09 Locked...
Page 49 0x(01-max Daily Repeating Schedule(s) were Daily Repeating 0x61 users) enabled/disabled for User ID specified 0x06 0xFE Schedule in Alarm Level. If Alarm Level = 0xFFFF Enabled/Disabled then all users were affected. Year Day Schedule 0x(01-max Schedule(s) has been set/erased for 0x62 0x06 0xFE...
Page 50 0x06 0X04 *The Yale lock also supports a 3 low battery alarm: too low to operate. This alarm is sent out as a Battery Report (with value = 0xFF) through the Battery Command Class. This is the last low battery alarm level before the product stops functioning.
Page 51: Command Class Configuration, Version 4
Command Class Configuration, Version 4* * This command class requires security. Table 8 - Configurable Parameters Length of Info Configuration Properties Info String (max length Param. allowed Num. Name Length Default is 90) 0x02 (Low Volume) Set Volume Level to high (1), [0x8002, low (2), or silent (3).
Page 52 Adjust the limit for wrong Wrong Code code entries allowed by your Entry Limit 1 byte 0x03 0x0A 0x05 lock. Set the language to English 0x01 0x03 0x01 (1), Spanish (2), or French Language* 1 byte (English) (French) (English) (3). Adjust the time your lock is Shut down 0x0A (10...
Page 53 One Touch 0x00 0xFF 0xFF Set One Touch Locking Locking 1 byte (Disable) (Enable) (Enable) feature to enable or disable. Privacy 0x00 0xFF 0x00 Set Privacy Button feature to Button 1 byte (Disable) (Enable) (Disable) enable or disable. Lock Status 0x00 0xFF 0x00...
Page 54 Command Class Application Status, Version 1 This command class has been implemented per the Z-Wave ™ Specification. Command Class Transport Service, Version 2 This command class has been implemented per the Z-Wave ™ Specification. Command Class Supervision, Version 1 This command class has been implemented per the Z-Wave ™...
Page 55 Command Class Basic, Version 2* * This command class requires security. This command class is mapped to Door Lock CC: Table 11 – Basic Mapping Overview Basic Command Door Lock Mapped Command Basic Set (Value) Door Lock Operation Set (Door Lock Mode) Basic Report (Current Value = 0x00) Door Lock Operation Report (Door Lock...
