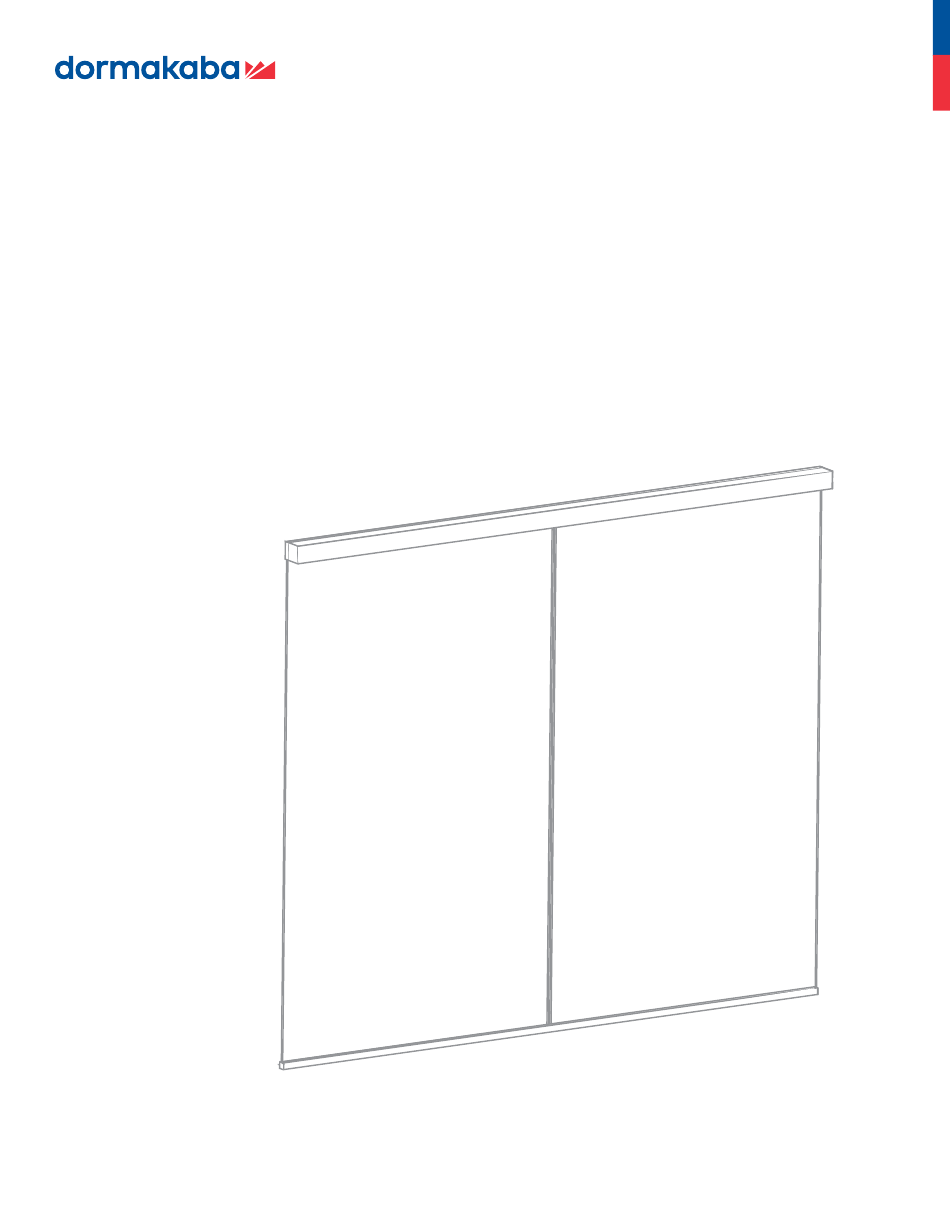

- Page 1 MUTO Premium XL150/80 Ceiling mount with Dormotion (Glass door) Installation Manual 936002 - 11/2023 Original document...
-
Page 2: Table Of Contents
MUTO XL150/80 Ceiling Mount with Dormotion Table of Contents Installation Instructions Table of contents 1 Technical specifications Overview 1.1.1 General information 1.1.2 Intended use 1.1.3 Glass requirements and fittings 1.1.4 Requirements for glass panel 1.1.5 Safety instructions 1.1.6 Symbols used - Safety/Installation 1.1.7 Maintenance, care, repair... -
Page 3: Technical Specifications
MUTO XL150/80 Ceiling Mount with Dormotion Technical specifications Installation Instructions 1 Technical specifications Overview • Only properly qualified and specially trained staff are authorized to mount dormakaba glass These instructions are for installation of MUTO hardware. PREMIUM sliding door system XL150/80 for the •... -
Page 4: Specifications - Technical Data
MUTO XL150/80 Ceiling Mount with Dormotion Technical specifications Installation Instructions Specifications - technical data Single Door Double Door XL150 XL80 XL150 XL80 Ceiling Door leaf weight lbs [kg]* ≤330lbs ≤176lbs ≤330lbs 2 x ≤176lbs mount [≤150] [≤80] [≤150] [2 x ≤80] * Including weight of auxiliary hardware. -
Page 5: Installation Instructions
MUTO XL150/80 Ceiling Mount with Dormotion Overall Installation Instructions 2 Installation instructions Overall Fig. 1 MUTO Premium 936002 11-2023... -
Page 6: Securing Track To Mounting Surface
MUTO XL150/80 Ceiling Mount with Dormotion Track Installation Instructions Securing track to mounting surface Fig. 2 Track 2.2.1 Ensure the track is properly level and secure it to 2.2.2 Use appropriate fasteners according to the the ceiling per the appropriate measurements on following recommendations. -
Page 7: Door/Wall Dimensions
MUTO XL150/80 Ceiling Mount with Dormotion Technical specifications Installation Instructions Door/wall dimensions Fig. 3 Single door mount clear Back of track to center opening of mounting hole in track height (CH) 7/8" [23] Glass door (DW) Glass door panel 1-3/16"... -
Page 8: A Installing Roller Carriers: On Monolithic Glass Only
MUTO XL150/80 Ceiling Mount with Dormotion Roller carriers Installation Instructions 2.4A Installing roller carriers: on monolithic glass ONLY Fig. 4 DETERMINE THE LEADING (X) VERSUS TRAILING (Z) EDGE OF THE GLASS. "LEADING IS SIDE CLOSEST TO LATCH CLOSED." Roller location on glass with DORMOTION unit... -
Page 9: B Installing Roller Carriers: On Tempered Laminate Glass Only
MUTO XL150/80 Ceiling Mount with Dormotion Roller carriers Installation Instructions 2.4B Installing roller carriers: on tempered laminate glass ONLY Fig. 5 DETERMINE THE LEADING (X) VERSUS TRAILING (Z) EDGE OF THE GLASS. "LEADING IS SIDE CLOSEST TO LATCH CLOSED."... -
Page 10: Install Dormotion Start/Stop
MUTO XL150/80 Ceiling Mount with Dormotion Start/stop Installation Instructions Anti-jump Install DORMOTION start/stop Fig. 6 PRODUCT SHIPPED WITH 7/8” [22] PIN INSTALLED. Torque PIN CAN BE CHANGED TO 1” [25] IF NECESSARY. Set screws 3 ft lbs [3 Nm]... -
Page 11: Installing End Stops
MUTO XL150/80 Ceiling Mount with Dormotion End stops Installation Instructions Track Installing end stops Fig. 8 Track screw Hex key size End stops Bottom section XL150/80 of end stop NOTE: FOR XL150 end stops, be sure set screw is flush 2.7.1... -
Page 12: Install Floor Guide
MUTO XL150/80 Ceiling Mount with Dormotion Floor guide Installation Instructions Install floor guide Fig. 10 XL150/80 13/16" [20] Floor Glass guide anchor Wall Glass Floor guide REMEMBER ANTI-JUMP IS DISENGAGED! TEMPORARILY REMOVE GLASS AND 2.9.4 ROLLERS FROM TRACK (TO ALLOW FOR 2.9.1... -
Page 13: Engaging Anti-Jump
MUTO XL150/80 Ceiling Mount with Dormotion Anti-jump Installation Instructions Height adjustment 2.11 Engaging anti-jump Fig. 12 Anti- jump 1/4 turn Anti-jump Hex key size adjustment screw XL150/80 2.11.1 Engage anti-jump on roller carrier. 2.11.2 Using appropriate-size hex key, push anti-jump adjustment screw IN and turn CLOCKWISE 90°... -
Page 14: Adjustment End Stop Location: Leading End Stop
MUTO XL150/80 Ceiling Mount with Dormotion End stops Installation Instructions 2.13 Adjustment end stop location: LEADING end stop Fig. 14 NOTE: bi-folding: Hex key size Be sure there is a XL150/80 1/4" [6] gap between END STOP LOCATION: the right and left hand LEADING EDGE sets. -
Page 15: Install Dormotion Units
MUTO XL150/80 Ceiling Mount with Dormotion Dormotion unit Installation Instructions 2.14 Install DORMOTION units RH Dormotion -door closed 2.14.1 Rotate RH DM fastening plates. Fig. 16 • Using 4 mm hex key, loosen Fig. 16.1 RH DM unit fastening plate hex screws. - Page 16 MUTO XL150/80 Ceiling Mount with Dormotion Dormotion unit Installation Instructions LH Dormotion -door open Fig. 16 (Con’t) 2.14.6 Rotate DM fastening plates. • Using 4 mm hex key, loosen Fig. 16.9 LH DM unit fastening plate hex screws. •...
-
Page 17: Adjust Start/Stop Pin Height (If Necessary)
MUTO XL150/80 Ceiling Mount with Dormotion Start/stop Installation Instructions 2.15 Adjust start/stop pin height (if necessary) Fig. 17 screw screw Start/stop 2.15.1 Adjust HEIGHT of start/stop pin, if necessary: • Loosen hex screws. • Slide pin and plate up or Hex key size down. -
Page 18: Cover Clips
MUTO XL150/80 Ceiling Mount with Dormotion Cover clips Installation Instructions Brush profile 2.16 Install Cover clips Fig. 18 Cover clip 2.16.1 Insert cover clips into track. (One clip per foot) 2.16.2 Insert perpendicular to track, and turn CLOCKWISE to snap into place. -
Page 19: Install View Protection Clips
MUTO XL150/80 Ceiling Mount with Dormotion View protection clips Installation Instructions 2.18 Install view protection clips Fig. 20 TO BE USED WITH ONE OR MULTIPLE SIDELITE APPLICATIONS. Empty sliding portion of track (Slide door panel) Sidelite glass Door panel... -
Page 20: Install Cover And View Protection Profile
MUTO XL150/80 Ceiling Mount with Dormotion View protection profile Installation Instructions End caps 2.19 Install cover and view protection profile Fig. 21 Cover clip Cover Cover View protection clip and profile removed for easier viewing of cover View installation. - Page 21 MUTO XL150/80 Ceiling Mount with Dormotion Blank page Installation Instructions This page left intentionally blank. MUTO Premium 936002 11-2023...
- Page 22 Scan for product details and downloads. dormakaba USA, Inc. Call 800-523-8483 or visit 1 Dorma Drive, Drawer AC glasstechserv.us@dormakaba.com Reamstown, PA 17567 for assistance or warranty information...
