ED250
Installation in In-ground Case
Installation Instructions
DL4614-070 – 08-2018
| EN |

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ED250 and is the answer not in the manual?

Questions and answers

Louis Mothon
May 20, 2025

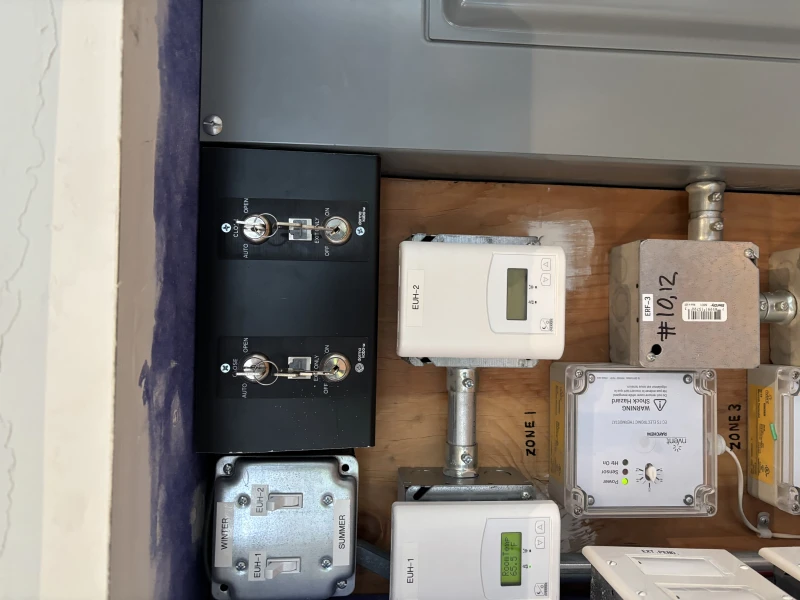

We are using a DX4604-21C Key switch panel with RJ45 Connector. Our bldg. Department would like to program this to shut down during non-business hours so the door opener motor will not burn out. IS THIS POSSIBLE?
