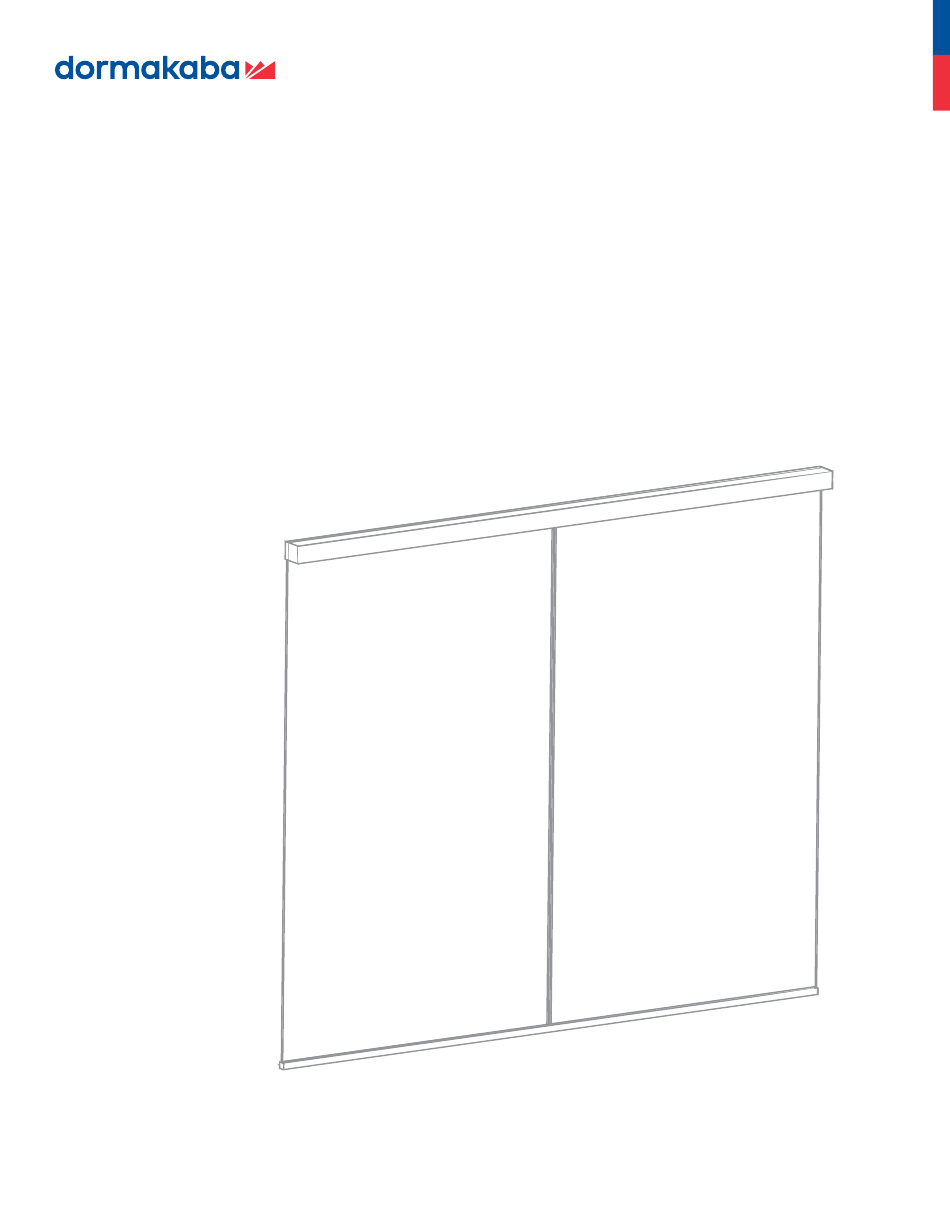

- Page 1 MUTO Premium XL120 Ceiling mount with Dormotion and Self-close (Wood door) Installation Manual 936014 - 11/2023 Original document...
-
Page 2: Table Of Contents
MUTO XL120 Ceiling Mount with Dormotion and Self-Close Table of Contents (Wood Door) Installation Instructions Table of contents 1 Technical specifications Overview 1.1.1 General information 1.1.2 Intended use 1.1.3 Door requirements and fittings 1.1.4 Safety instructions 1.1.5 Symbols used - Safety/Installation 1.1.6 Maintenance, care, repair... -
Page 3: Technical Specifications
MUTO XL120 Ceiling Mount with Dormotion and Self-Close Technical specifications (Wood Door) Installation Instructions 1 Technical specifications Overview 1.1.5 Symbols used - Safety/Installation These instructions are for installation of MUTO CAUTION PREMIUM sliding door system XL120 for wood doors for... -
Page 4: Installation Instructions
MUTO XL120 Ceiling Mount with Dormotion and Self-Close Overall (Wood Door) Installation Instructions 2 Installation instructions Overall MUTO Premium 936014 11-2023... -
Page 5: Securing Wood Door Adaptor
MUTO XL120 Ceiling Mount with Dormotion and Self-Close Overall (Wood Door) Installation Instructions Securing wood door adaptor Fig. 1 XL120 XL120 Wood door adaptor 1/2" [13] Wood door NOTE: Top of door must be reinforced to secure wood XL120: door adaptor. -
Page 6: Door/Wall Dimensions
MUTO XL120 Ceiling Mount with Dormotion and Self-Close Technical specifications (Wood Door) Installation Instructions Door/wall dimensions Single door mount Back of track to center of 7/8" mounting [23] hole in clear track opening height (CH) Wood door (DW) Wood... -
Page 7: Installing Roller Carriers
MUTO XL120 Ceiling Mount with Dormotion and Self-Close Roller carriers (Wood Door) Installation Instructions Installing roller carriers Fig. 3 DETERMINE THE LEADING (X) VERSUS TRAILING (Z) EDGE OF THE GLASS. "LEADING IS SIDE CLOSEST TO LATCH CLOSED." Roller location on wood door with DORMOTION unit... -
Page 8: Installing Dormotion Start/Stop
MUTO XL120 Ceiling Mount with Dormotion and Self-Close Start/stop (Wood Door) Installation Instructions Anti-jump Installing DORMOTION start/stop Fig. 4 Torque PRODUCT SHIPPED WITH 7/8” [22] PIN INSTALLED. PIN CAN BE CHANGED TO 1” [25] IF NECESSARY. Set screws 3 ft lbs... -
Page 9: Installing The End Stops
MUTO XL120 Ceiling Mount with Dormotion and Self-Close End stops (Wood Door) Installation Instructions Track Installing the end stops Fig. 6 Slide open to the Slide open to the Legend right: RIGHT hand left: LEFT hand Handing self-close end stop... -
Page 10: Install Floor Guide
MUTO XL120 Ceiling Mount with Dormotion and Self-Close Floor guide (Wood Door) Installation Instructions 2.10 Install floor guide Fig. 8 Wood door Wall 5/16" Wood door Floor Floor guide guide REMEMBER ANTI-JUMP IS DISENGAGED! TEMPORARILY REMOVE WOOD DOOR AND 2.10.4... -
Page 11: Engaging Anti-Jump
MUTO XL120 Ceiling Mount with Dormotion and Self-Close Anti-jump (Wood Door) Installation Instructions Height adjustment 2.11 Engaging anti-jump Fig. 9 Anti- jump 1/4 turn Anti-jump Hex key size adjustment Anti- screw jump XL120 2.11.1 Engage anti-jump on roller carrier. -
Page 12: Adjustment End Stop Location: Leading End Stop
MUTO XL120 Ceiling Mount with Dormotion and Self-Close End stops (Wood Door) Installation Instructions 2.13 Adjustment end stop location: LEADING end stop Fig. 11 NOTE: bi-folding: Hex key size Be sure there is a XL120 1/4" [6] gap between... -
Page 13: Install Rh Dormotion Units
MUTO XL120 Ceiling Mount with Dormotion and Self-Close DORMOTION unit (Wood Door) Installation Instructions 2.14 Install RH DORMOTION unit - door closed 2.14.1 Rotate RH DM fastening plates. Fig. 13 • Using 4 mm hex key, loosen Fig. 13.1 RH DM unit fastening plate hex screws. -
Page 14: Install Optional Lh Dormotion Unit In Opening Cycle
MUTO XL120 Ceiling Mount with Dormotion and Self-Close DORMOTION unit (Wood Door) Installation Instructions 2.15 Install optional LH DORMOTION unit in opening cycle 2.15.1 Rotate DM fastening plates. Fig. 14 • Using 4 mm hex key, loosen Fig. 14.1 LH DM unit fastening plate hex screws. -
Page 15: Adjust Start/Stop Pin Height (If Necessary)
MUTO XL120 Ceiling Mount with Dormotion and Self-Close Start/stop (Wood Door) Installation Instructions 2.16 Adjust start/stop pin height (if necessary) Fig. 15 screw screw Start/stop 2.16.1 Adjust HEIGHT of start/stop pin, if necessary: • Loosen hex screws. • Slide pin and plate up or Hex key size down. -
Page 16: Install Self-Close Hold Open Ball
MUTO XL120 Ceiling Mount with Dormotion and Self-Close Self-closing unit (Wood Door) Installation Instructions 2.18 Install self-close hold open ball Fig. 17 Legend Closing edge of door Self-close Hex key size hold open XL120 ball • Use two screws and tighten at 2.5 ft lbs [3Nm]. -
Page 17: Install Self-Close Cable Unit
MUTO XL120 Ceiling Mount with Dormotion and Self-Close Self-closing unit (Wood Door) Installation Instructions 2.20 Install self-close cable unit Fig. 19 Cable unit Track End stop plates 4" [100] Self-close cable unit Self-close cable unit 2.20.1 Secure self-close cable unit into first groove of •... -
Page 18: Adjust Tension In Self-Close Cable Unit
MUTO XL120 Ceiling Mount with Dormotion and Self-Close Self-closing unit MUTO COMFORT selF-ClOsing (Wood Door) Installation Instructions — 2.22 Adjust tension in self-close cable unit Fig. 21 Cable Holder clamp Second holder 'knot' Beginning v = max. 0.2 m/sec v = max. -
Page 19: Cover Clips
MUTO XL120 Ceiling Mount with Dormotion and Self-Close Cover clips (Wood Door) Installation Instructions Brush profile 2.23 Cover clips Fig. 21 Cover clip 2.23.1 Insert cover clips into track. (One clip per foot) 2.23.2 Insert perpendicular to track, and turn CLOCKWISE to snap into place. -
Page 20: Install View Protection Clips
MUTO XL120 Ceiling Mount with Dormotion and Self-Close View protection clips (Wood Door) Installation Instructions 2.25 Install view protection clips Fig. 23 TO BE USED WITH ONE OR MULTIPLE SIDELITE APPLICATIONS. Empty sliding portion of track (Slide door panel) -
Page 21: Install Cover And View Protection Profile
MUTO XL120 Ceiling Mount with Dormotion and Self-Close View protection profile (Wood Door) Installation Instructions End caps 2.26 Install cover and view protection profile Fig. 24 Cover clip Cover Cover View protection clip and profile removed for View easier viewing of cover protection installation. - Page 22 Scan for product details and downloads. dormakaba USA, Inc. Call 800-523-8483 or visit 1 Dorma Drive, Drawer AC glasstechserv.us@dormakaba.com Reamstown, PA 17567 for assistance or warranty information...
