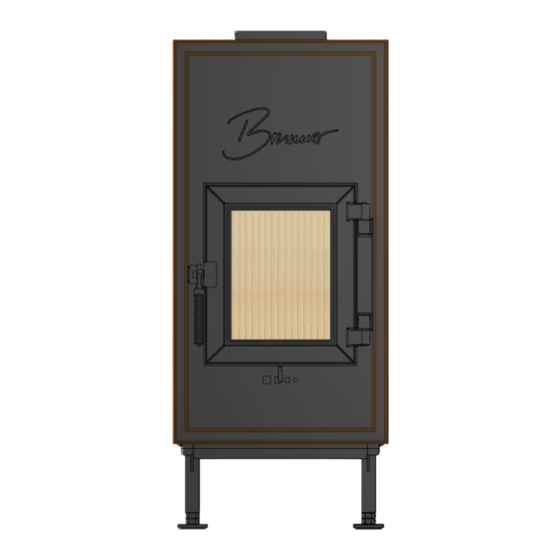

Fireplaces equipped with a water boiler must be pressure-tested after hydraulic connection to the heating system. Masonry work may follow only after this pressure test. Ulrich Brunner GmbH does not cover any costs incurred by necessary dismantling of masonry for rework at water boiler installation or replacement of the boiler.
Page 3: Safety Precautions
If additional parts are installed on the fireplace which are not approved for this appliance by Ulrich Brunner GmbH (for example, an external control unit), it is a customized product that meets cus- tomer requirements. The resulting fireplace insert is not type-tested; the declaration of performance of this fireplace insert will be no longer valid.
Page 4: Equipotential Bonding And Lightning Protection
The installation of a combustion air duct with outside air supply is possible with this heating insert. The combustion air is supplied via a connection piece. The combustion air is set by the operator using a combustion air control element. (1.19) © 2023 Brunner GmbH...
Page 5: Delivery Contents
Part no. Designation C011007 Firing door C011003 Front 830x480 C011100 Front 895x480 C011039 Front 790x420 C011111 Front 1060x480 C013003 Combustion chamber lining C013007 Body C013023 Air control unit N002104 Support bearing Im. 1: Overview of © 2023 Brunner GmbH (1.19)
Page 6 BG Door closer 02096 Cheese head screw M5x20 10.2 C011033 Hinge pin 10.1 800143 Shank screw M5x25 10.4 900360 Semicircular rivet 6x6 10.3 C011020 Door pull spring 10.6 800431 Clamping sleeve D3x12 10.5 900350 Dowel pin D4x22 (1.19) © 2023 Brunner GmbH...
Page 7 Screw connection Im. 2: Components Air control unit Im. 3: Air actuator Pos. Part no. Designation Pos. Part no. Designation 00628 Washer D6 800512 Cheese head screw M6x10 00608 Hexagon nut M6 800463 Washer 6.5x20 © 2023 Brunner GmbH (1.19)
Page 8 C014042 Rear panel C011090-02 Air inlet C011110 Rear air duct plate C013009 Intermediate floor C013026 Inspection cover for sump C013008 Bottom tray C011038 Front inspection panel C011077 Text plate C011017 Air adjuster Im. 4: Body (1.19) © 2023 Brunner GmbH...
Page 9: Mounting Aid For Cast Iron Dome
Release the fixation of the door spring by loosening the side shaft screw B. Now the door closure can be adjusted tighter or softer by turning the Allen screw A to the left or right. Tighten the shaft screw B again. © 2023 Brunner GmbH (1.19)
Page 10 Insert the air connection spigot and secure it with the three clamping plates. Insert the enclosed inspection cover. The WF 25 / 25 can be installed with different reheating surfaces. The options range from prefabricated metallic or ceramic post-heating surfaces to a structure with individually created ceramic strips.
Page 11: Fitting The Combustion Air Connection (Optional)
Floor stone WF 33 / WF 50 C011075 Inspection plate tray 800016 Flat head screw M5x5 C011057 Standard air sliding plate 800512 Cheese head screw M6x10 C011056 Air inlet plate D250 C011011 Machined floor pan C011037 Combustion air connection piece © 2023 Brunner GmbH (1.19)
Page 14: Mounting Combustion Air Connection Wf With Eas / Eos
Floor stone WF 33 / WF 50 C011075 Inspection plate for tray 800512 Cheese head screw M6x10 C011095 Retaining plate WF C011011 Machined floor pan C011037 Combustion air connection piece 02344 Brass screw connection for WF EOS (1.19) © 2023 Brunner GmbH...
Page 17: Requirements For Location
- If the construction type or dimensioning of the systems are excluding the possibility of dangerous negative pressure. Please consult the location of your fireplace, chimney connection and combustion air supply with your local chimney sweep. © 2023 Brunner GmbH (1.19)
Page 18: Combustion Air
(calculation of flow and thermal balance and ap- proval from chimney sweep are necessary). However, it is not possible for fireplaces designed for open door use. Remember to use a separate chimney connection in this case. (1.19) © 2023 Brunner GmbH...
Page 19: Mounting Instructions For Eas / Eos Variants
Installation of electronic components must be prepared and performed carefully. Please pay attention to the following points: • The flush-mounting box must be fitted in level and clean, to ensure easy, tension-free installation of elec- tronics. © 2023 Brunner GmbH (1.19)
Page 20 All electronic components must be accessible after installation for revision and replacement. When selecting place of installation, keep in mind the max. permitted temperature for the component. Components cannot be installed in closed spaces; proper ventilation must ensure sufficient heat discharge. (1.19) © 2023 Brunner GmbH...
Page 21: Overview Of Fire Safety And Heat Insulation Guidelines
Installation in front of or next to an adjacent wall: Installation in front of or next to a flammable wall Installation in front of or next to a protected wall: Installation in front of or next to a flammable wall © 2023 Brunner GmbH (1.19)
Page 22 (heat accumulation). Adjacent walls: walls from mineral building materials, such as aerated concrete, bricks, sand-lime bricks, without flammable objects behind them. (1.19) © 2023 Brunner GmbH...
Page 23 Structure made of flammable materials Furniture or flammable objects on adjacent wall Air cooled heat protection Distance between floor insulation and air intake Decorative beam over fireplace door Thermal insulation of the smoke pipe connecting piece Heat radiation surface © 2023 Brunner GmbH (1.19)
Page 24: Building Protection
Required insulation measures depend on the type and design of the surface. The load bearing capacity of the mounting surface must be checked; appropriate means for load distribution must be taken if necessary. (1.19) © 2023 Brunner GmbH...
Page 25 Active air cooling is a permanently open, non-closing shaft, gap or empty space, where part of the heat pro- jected by the fireplace is dissipated by convection to protect the building or flammable components in adja- cent walls or mounting surface. © 2023 Brunner GmbH (1.19)
Page 26: Connections And Assembly
Heating gas pipe (21) between heating device and downstream heat radiator or storage mass, as well as the smoke pipe connecting piece (39) connected to chimney must be made of heat-resistant steel with CE mark. The connecting pipe must be connected directly to the chimney. When the connecting piece is leading (1.19) © 2023 Brunner GmbH...
Page 27 Stream of air in this convection space helps to transfer some of the heat which is produced during combus- tion through the openings in external casing (circulating air/warm air) to the room of installation. Convection casing © 2023 Brunner GmbH (1.19)
Page 28: Approved Insulation Materials
The dimensions and design of active trim must be adapted to the heating power of the heating device. APPROVED INSULATION MATERIALS Thermal insulation materials used must fulfil the following requirements according to AGI-Q 132 standard: (1.19) © 2023 Brunner GmbH...
Page 29 Shells, Limit 2 Shells Slabs, Limit 1 Segments Slabs, Limit 2 Braids Panels *) 99 is valid only for delivery forms in column 2, which have no declared limits. **) 99 is valid only for shells. © 2023 Brunner GmbH (1.19)
Page 30: Drawings And Technical Data
Dimension sheets - WF 25 Ø180/Ø160/Ø145 Ø218 … cast iron front plate 830 X 480 Ø180/Ø160/Ø145 Ø218 … cast iron front plate 790 x 420 Stand: 2023-11-13...
Page 31 Dimension sheets - WF 25 Ø180/Ø160/Ø145 Ø218 … cast iron front plate 895 x 480 Ø180/Ø160/Ø145 Ø218 ... cast iron front plate 1060 x 480 Stand: 2023-11-13...
Page 32 Dimension sheets - WF 25 A Ø180/Ø160/Ø145 A Ø180/Ø160/Ø145 E Ø180/Ø160/Ø145 … with GNF 8 at the side A Ø180/Ø160/Ø145 E Ø180/Ø160/Ø145 A Ø180/Ø160/Ø145 … with GNF 8 behind Stand: 2023-11-13...
Page 33 Dimension sheets - WF 25 3. Abbrand 2. Abbrand 1. Abbrand MSS-Zuglänge nebenstehend (m) Speichermasse nebenstehend (kg) Design characteristics for adjacent storage mass GNF 8 GNF 10 Holzverbrauch in kg/h ... Auslegungsdiagramm mit metallischer Nachheizfläche Stand: 2023-11-13...
Page 34 Values determined with air cross-sections recorded by testing; stove envelope designed to dissipate heat We suggest for CAD planning Palette CAD. Permanent updated drawings: www.brunner.de Frames/ flue gas outlet connection/ combustion air supply connection/ front variants/ support bearing are marked in col-...
Page 35 Planning and installation - WF 25 Tested according to EN 13229 W EN 13229 WA Values measured at Rated power Storage operation Suitable for all construction types according to rules Data for functional demonstration Rated heat power Fire wood volume...
Page 36 Technical and assortment changes as well as errors and Zellhuber Ring 17-18 misprints reserved. D-84307 Eggenfelden Reprinting and reproduction, even in part, only with the express permission of the publisher. Tel.: +49 (0) 8721/771-0 / Fax: +49 (0) 8721/771-100 Email: info@brunner.de Art.Nr.: 200262 (1.19) © 2023 Brunner GmbH...
