Summary of Contents for Brunner HKD 5.1
- Page 1 Installation manual HKD 5.1 ©2023...
-
Page 2: Table Of Contents
Chimney and smoke pipe connection..............14 Mounting instructions for EAS / EOS variants............. 15 Overview of fire safety and heat insulation guidelines........17 Building protection....................19 Connections and assembly..................21 Approved insulation materials................23 Drawings and technical data.................. 25 Installation manual HKD 5.1 (1.21) © 2023 Brunner GmbH... -
Page 3: Basic Informations
Fireplaces equipped with a water boiler must be pressure-tested after hydraulic connection to the heating system. Masonry work may follow only after this pressure test. Ulrich Brunner GmbH does not cover any costs incurred by necessary dismantling of masonry for rework at water boiler installation or replacement of the boiler. -
Page 4: Safety Precautions
If additional parts are installed on the fireplace which are not approved for this appliance by Ulrich Brunner GmbH (for example, an external control unit), it is a customized product that meets cus- tomer requirements. The resulting fireplace insert is not type-tested; the declaration of performance of this fireplace insert will be no longer valid. -
Page 5: Equipotential Bonding And Lightning Protection
The chamotte inner linings are delivered as a separate packaging unit and must be fitted inside the fireplace on site. Check the delivery for damage or missing parts. Report complaints immediately to your supplier. © 2023 Brunner GmbH Installation manual HKD 5.1 (1.21) -

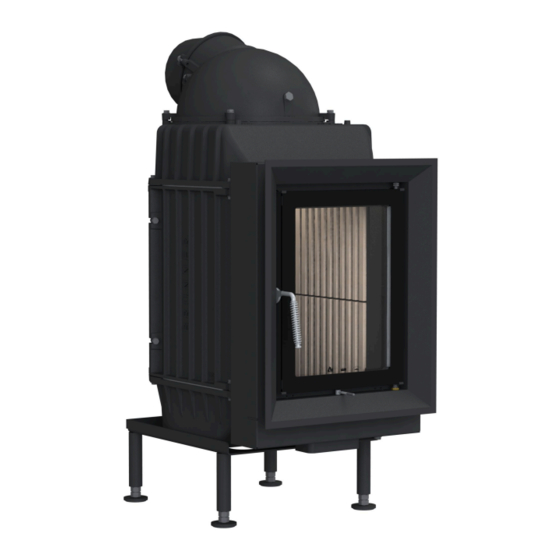

Page 6: Product Description
HKD 5.1: 6 kg HKD 5.1: 6 kg DIN Plus Multiple devices on sin- gle flue (*2) (*1) a damper flap must be installed (*2) only for variants with selfclosing firing door Installation manual HKD 5.1 (1.21) © 2023 Brunner GmbH... -
Page 7: Setting Up The Stove Insert
After completing the stove insert installation, remove the wooden wedges from the primary and secondary air inlets and adjust the air inlets for primary air (PL) and secondary air (SL). HKD 4.1 / HKD 5.1 EOR HKD 4.1 / HDK 5.1 manual / EOS... -
Page 8: Mounting Of Door Frame
The threaded pin is accessible after removal of air leading plate from the inside (see picture “Position of threaded pin”). After the adjustments are done, the brass nut must be secured again with the threaded pin. Installation manual HKD 5.1 (1.21) © 2023 Brunner GmbH... - Page 9 To do this, unscrew the two countered screws completely, as shown in the picture 'Loosening the door stop'. The furnace door can now be lifted out. Im. 3: Loosening the door stop © 2023 Brunner GmbH Installation manual HKD 5.1 (1.21)
- Page 10 When a variant with electronic stove control (EOS ) is used, make sure that there is enough space within the external cladding under the fireplace door to enable installation of the door contact switch wiring. Installation manual HKD 5.1 (1.21) © 2023 Brunner GmbH...
-
Page 11: Combustion Air Hose Connection
(see arrow on the picture in the middle of page) from the sliding plate. Now attach the control element as shown in the low- er picture and put the warning plate in place again. Check function! © 2023 Brunner GmbH Installation manual HKD 5.1 (1.21) -
Page 12: Storage Mass
- If the construction type or dimensioning of the systems are excluding the possibility of dangerous negative pressure. Please consult the location of your fireplace, chimney connection and combustion air supply with your local chimney sweep. Installation manual HKD 5.1 (1.21) © 2023 Brunner GmbH... -
Page 13: Combustion Air
Combustion air ducts Stoves and fireplaces with BRUNNER heating inserts are classified by law as indoor air-dependent fire- places. The combustion air can be supplied from outside via a sufficiently dimensioned pipework. This for BRUN- NER heating inserts are fitted with a combustion air connection piece. -
Page 14: Chimney And Smoke Pipe Connection
CE mark. The connecting pipe must be connected directly to the chimney. A soot fire resistant chimney of T400 type is necessary for safe operation. All smoke pipe connections must be sealed tightly! Remember to provide access for cleaning! Installation manual HKD 5.1 (1.21) © 2023 Brunner GmbH... -
Page 15: Mounting Instructions For Eas / Eos Variants
• If possible, avoid installation of electronic components in exterior walls to prevent risk of corrosion at tem- peratures below dew point. • The control unit must not be installed in hot parts of the tiled stove casing. © 2023 Brunner GmbH Installation manual HKD 5.1 (1.21) - Page 16 All electronic components must be accessible after installation for revision and replacement. When selecting place of installation, keep in mind the max. permitted temperature for the component. Components cannot be installed in closed spaces; proper ventilation must ensure sufficient heat discharge. Installation manual HKD 5.1 (1.21) © 2023 Brunner GmbH...
-
Page 17: Overview Of Fire Safety And Heat Insulation Guidelines
Installation in front of or next to an adjacent wall: Installation in front of or next to a flammable wall Installation in front of or next to a protected wall: Installation in front of or next to a flammable wall © 2023 Brunner GmbH Installation manual HKD 5.1 (1.21) - Page 18 (heat accumulation). Adjacent walls: walls from mineral building materials, such as aerated concrete, bricks, sand-lime bricks, without flammable objects behind them. Installation manual HKD 5.1 (1.21) © 2023 Brunner GmbH...
-
Page 19: Building Protection
Technical Data for flammable materials or other materials including flammable components are valid only for components with a heat transfer coefficient (U value) ≥ 0,4W/m²K. For U value < 0,4W/m²K, additional mea- sures for thermal insulation must be taken (see DIN 18896:2013-12). © 2023 Brunner GmbH Installation manual HKD 5.1 (1.21) - Page 20 (37), only outside the heat ra- diation range. The clearance must not allow for heat accumulation be- tween the beam and the fireplace wall. Decorative beams cannot be parts of the building structure. Installation manual HKD 5.1 (1.21) © 2023 Brunner GmbH...
-
Page 21: Connections And Assembly
Outside air duct / combustion air pipe If external combustion air supply is necessary, it must be connected directly to the air connecting piece of the heating device, to prevent possible drafts. © 2023 Brunner GmbH Installation manual HKD 5.1 (1.21) - Page 22 Ducts and duct sections within the fireplace must be executed according to TROL specifications. Appropriate insulation must be provided where necessary. Construction law requirements regarding fire protection must be observed. Installation manual HKD 5.1 (1.21) © 2023 Brunner GmbH...
-
Page 23: Approved Insulation Materials
Group 01 - 21 Upper temperature limit: Group 70 - 76 equivalent to 700 C - 760 Nominal density kg/m Group 08 - 18 equivalent to 80 kg/m - 180 kg/m © 2023 Brunner GmbH Installation manual HKD 5.1 (1.21) - Page 24 Slabs, Limit 1 Segments Slabs, Limit 2 Braids Panels *) 99 is valid only for delivery forms in column 2, which have no declared limits. **) 99 is valid only for shells. Installation manual HKD 5.1 (1.21) © 2023 Brunner GmbH...
-
Page 25: Drawings And Technical Data
Dimension sheets - HKD 5.1 Ø180 … with steel door frame Ø180 … with steel front plate Stand: 2023-09-07... - Page 26 Dimension sheets - HKD 5.1 Ø180 … with cast iron frame … with steel door frame Stand: 2023-09-07...
- Page 27 Dimension sheets - HKD 5.1 Ø180 … with mounting frame Ø180 … with cast iron front plate Stand: 2023-09-07...
- Page 28 Dimension sheets - HKD 5.1 Ø180 174 - 294 815 - 935 … with additional fire door … with MAS Stand: 2023-09-07...
- Page 29 Dimension sheets - HKD 5.1 Design characteristics for adjacent storage mass We suggest for CAD planning Palette CAD. Permanent updated drawings: www.brunner.de Frames/ flue gas outlet connection/ combustion air supply connection/ front variants/ support bearing are marked in col- Stand: 2023-09-07...
- Page 30 Planning and installation - HKD 5.1 Tested according to EN 13229 W EN 13229 WA Values measured at Rated power Storage operation Suitable for all construction types according to rules Data for functional demonstration Rated heat power Fire wood volume...
- Page 31 D-84307 Eggenfelden Reprinting and reproduction, even in part, only with the express permission of the publisher. Tel.: +49 (0) 8721/771-0 / Fax: +49 (0) 8721/771-100 Email: info@brunner.de Art. No.: 19953 © 2023 Brunner GmbH Installation manual HKD 5.1 (1.21)
