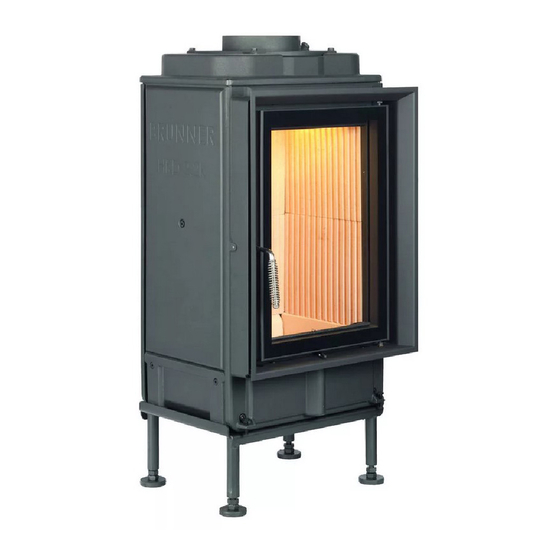

- Page 1 Installation Guide HKD 2.2 k ©2023...
-
Page 2: Table Of Contents
Chimney and smoke pipe connection..............10 Mounting instructions for EAS / EOS variants............. 12 Overview of fire safety and heat insulation guidelines........14 Building protection....................16 Connections and assembly..................18 Approved insulation materials................20 Drawings and technical data.................. 22 Installation Guide HKD 2.2 k (1.38) © 2023 Brunner GmbH... -
Page 3: Basic Informations
Fireplaces equipped with a water boiler must be pressure-tested after hydraulic connection to the heating system. Masonry work may follow only after this pressure test. Ulrich Brunner GmbH does not cover any costs incurred by necessary dismantling of masonry for rework at water boiler installation or replacement of the boiler. -
Page 4: Safety Precautions
If additional parts are installed on the fireplace which are not approved for this appliance by Ulrich Brunner GmbH (for example, an external control unit), it is a customized product that meets cus- tomer requirements. The resulting fireplace insert is not type-tested; the declaration of performance of this fireplace insert will be no longer valid. -
Page 5: Equipotential Bonding And Lightning Protection
Dimensioning of heat projecting walls of the casing must by © 2023 Brunner GmbH Installation Guide HKD 2.2 k (1.38) -
Page 6: Delivery Contents
The chamotte inner linings are delivered as a separate packaging unit and must be fitted inside the fireplace on site. The combustion air regulator, door handle, product documentation plus evtl. necessary small parts are deliv- ered inside the fireplace. Installation Guide HKD 2.2 k (1.38) © 2023 Brunner GmbH... -
Page 7: Assembly
An HKD fireplace can be combined with different additional heating surfaces. It is possible to use a topmount water boiler (Kesselmodul), to connect to a metallic radiator or a modular ceramic accumulator, or to build a ceramic accumulator individually. © 2023 Brunner GmbH Installation Guide HKD 2.2 k (1.38) -
Page 8: Requirements For Location
Where flammable materials or explosives are stored, manufactured or processed. Which are commonly accessible. Stairways in residential buildings with access from only two flats are not considered as commonly accessible rooms. Installation Guide HKD 2.2 k (1.38) © 2023 Brunner GmbH... - Page 9 - If the construction type or dimensioning of the systems are excluding the possibility of dangerous negative pressure. Please consult the location of your fireplace, chimney connection and combustion air supply with your local chimney sweep. © 2023 Brunner GmbH Installation Guide HKD 2.2 k (1.38)
-
Page 10: Combustion Air
(calculation of flow and thermal balance and ap- proval from chimney sweep are necessary). However, it is not possible for fireplaces designed for open door use. Remember to use a separate chimney connection in this case. Installation Guide HKD 2.2 k (1.38) © 2023 Brunner GmbH... - Page 11 CE mark. The connecting pipe must be connected directly to the chimney. A soot fire resistant chimney of T400 type is necessary for safe operation. All smoke pipe connections must be sealed tightly! Remember to provide access for cleaning! © 2023 Brunner GmbH Installation Guide HKD 2.2 k (1.38)
-
Page 12: Mounting Instructions For Eas / Eos Variants
• If possible, avoid installation of electronic components in exterior walls to prevent risk of corrosion at tem- peratures below dew point. • The control unit must not be installed in hot parts of the tiled stove casing. Installation Guide HKD 2.2 k (1.38) © 2023 Brunner GmbH... - Page 13 All electronic components must be accessible after installation for revision and replacement. When selecting place of installation, keep in mind the max. permitted temperature for the component. Components cannot be installed in closed spaces; proper ventilation must ensure sufficient heat discharge. © 2023 Brunner GmbH Installation Guide HKD 2.2 k (1.38)
-
Page 14: Overview Of Fire Safety And Heat Insulation Guidelines
Installation in front of or next to an adjacent wall: Installation in front of or next to a flammable wall Installation in front of or next to a protected wall: Installation in front of or next to a flammable wall Installation Guide HKD 2.2 k (1.38) © 2023 Brunner GmbH... - Page 15 (heat accumulation). Adjacent walls: walls from mineral building materials, such as aerated concrete, bricks, sand-lime bricks, without flammable objects behind them. © 2023 Brunner GmbH Installation Guide HKD 2.2 k (1.38)
-
Page 16: Building Protection
Technical Data for flammable materials or other materials including flammable components are valid only for components with a heat transfer coefficient (U value) ≥ 0,4W/m²K. For U value < 0,4W/m²K, additional mea- sures for thermal insulation must be taken (see DIN 18896:2013-12). Installation Guide HKD 2.2 k (1.38) © 2023 Brunner GmbH... - Page 17 (37), only outside the heat ra- diation range. The clearance must not allow for heat accumulation be- tween the beam and the fireplace wall. Decorative beams cannot be parts of the building structure. © 2023 Brunner GmbH Installation Guide HKD 2.2 k (1.38)
-
Page 18: Connections And Assembly
Outside air duct / combustion air pipe If external combustion air supply is necessary, it must be connected directly to the air connecting piece of the heating device, to prevent possible drafts. Installation Guide HKD 2.2 k (1.38) © 2023 Brunner GmbH... - Page 19 Ducts and duct sections within the fireplace must be executed according to TROL specifications. Appropriate insulation must be provided where necessary. Construction law requirements regarding fire protection must be observed. © 2023 Brunner GmbH Installation Guide HKD 2.2 k (1.38)
-
Page 20: Approved Insulation Materials
Group 01 - 21 Upper temperature limit: Group 70 - 76 equivalent to 700 C - 760 Nominal density kg/m Group 08 - 18 equivalent to 80 kg/m - 180 kg/m Installation Guide HKD 2.2 k (1.38) © 2023 Brunner GmbH... - Page 21 Slabs, Limit 1 Segments Slabs, Limit 2 Braids Panels *) 99 is valid only for delivery forms in column 2, which have no declared limits. **) 99 is valid only for shells. © 2023 Brunner GmbH Installation Guide HKD 2.2 k (1.38)
-
Page 22: Drawings And Technical Data
Dimension sheets - HKD 2.2k flat and round Ø180 Ø125 … flat with door frame Ø180 Ø125 ... with Cast iron front plate Stand: 2023-09-06... - Page 23 Dimension sheets - HKD 2.2k flat and round Ø180 Ø125 … flat with steel front plate Ø360 Ø125 … flat with door frame and MAS 360 Stand: 2023-09-06...
- Page 24 Dimension sheets - HKD 2.2k flat and round Ø180 Ø125 … round with door frame R=380 Ø125 … round with door frame R=380 and MAS 440 Stand: 2023-09-06...
- Page 25 … round with door frame R=330 Design characteristics for adjacent storage mass We suggest for CAD planning Palette CAD. Permanent updated drawings: www.brunner.de Frames/ flue gas outlet connection/ combustion air supply connection/ front variants/ support bearing are marked in col-...
- Page 26 Planning and installation - HKD 2.2k flat and round Tested according to EN 13229 W EN 13229 WA Values measured at Rated power Storage operation Suitable for all construction types according to rules Data for functional demonstration Rated heat power Fire wood volume kg/h Combustion performance...
- Page 27 D-84307 Eggenfelden Reprinting and reproduction, even in part, only with the express permission of the publisher. Tel.: +49 (0) 8721/771-0 / Fax: +49 (0) 8721/771-100 Email: info@brunner.de Art. No.: 200749 © 2023 Brunner GmbH Installation Guide HKD 2.2 k (1.38)
