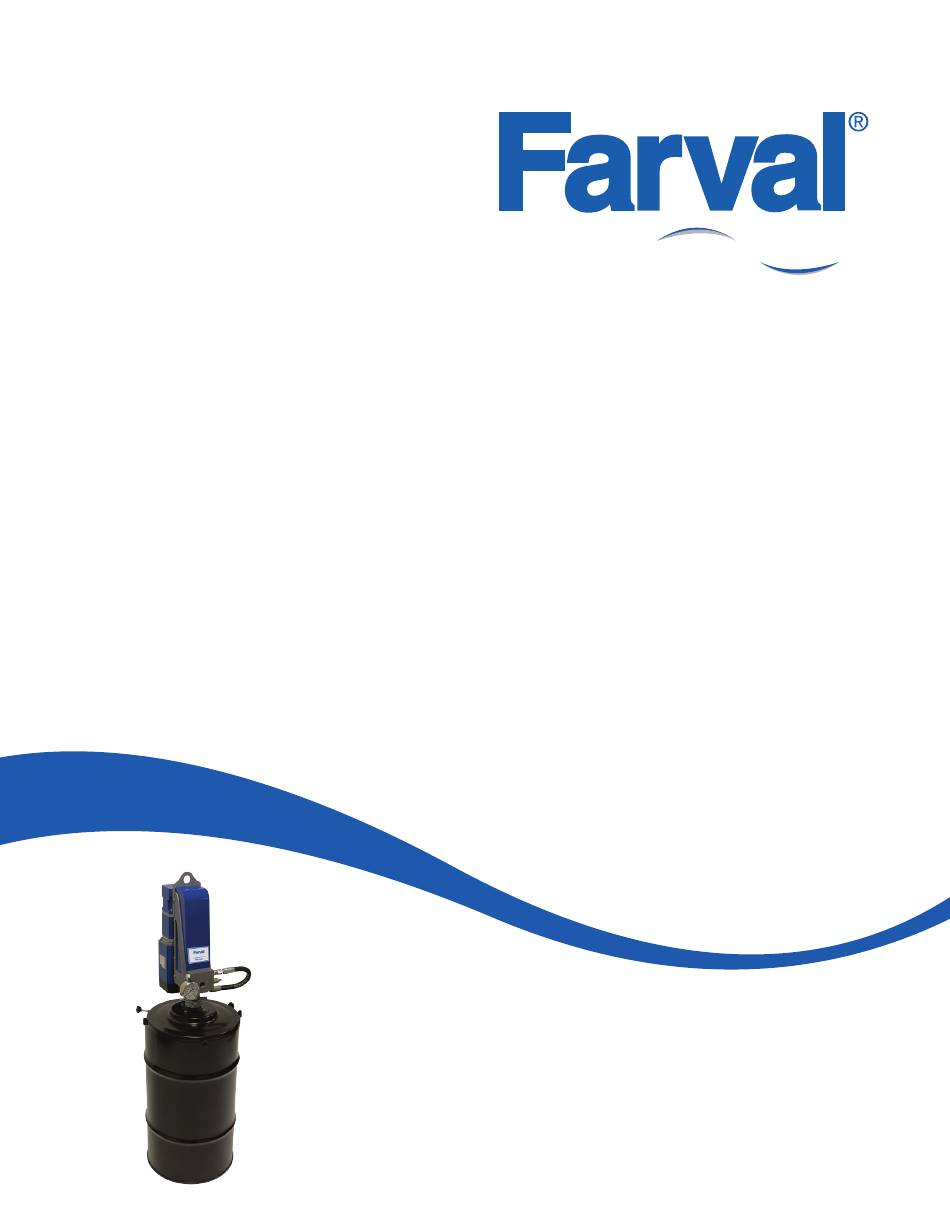

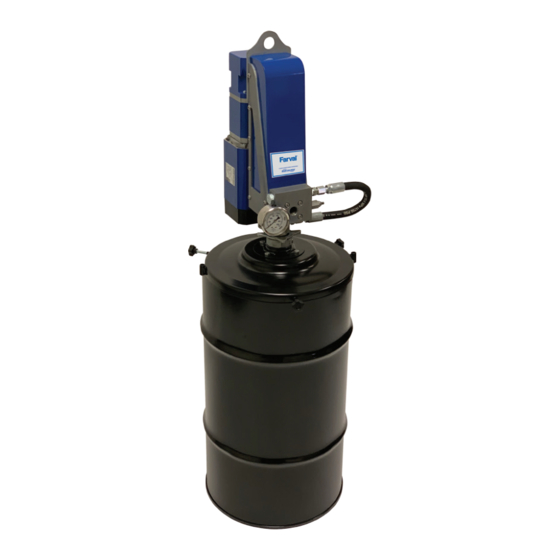

- Page 1 BIJUR DELIMON A BRAND OF ® I N T E R N A T I O N A L OperatOrs Manual Electric Barrel Pump 36915 R8...
-
Page 2: Table Of Contents
Bijur Delimon International reserves the right to update or improve the technical specifica- tions for this product without prior notice. BIJur DelIMOn InternatIOnal BIJur DelIMOn’s InDustrY leaDInG FaMIlY OF BranDs (9 1 9) 465-4448 lOCal tOll-Free (800) 63 1-0 1 68... -
Page 3: Operation
OperatIOn The pump end (bottom) consists of a hardened steel bushing, through which the piston runs. As the piston strokes down, grease is pushed past the check valve ball and out through the extruded discharge holes in the pump stem. As the piston strokes up, the check valve prevents drawback, and a vacuum is created inside the bushing. -
Page 4: Ebp How To Order
HOW tO OrDer eBp Cover & Follow Options Motor Voltage 24 – 24VDC – Leave BLANK for no Cover/ 1 1 – 110VAC 50/60Hz 1Ph Follower X – With Cover Y – With Follower Down Tube Size Z – With Cover & Follower A –... -
Page 5: Ebp Service Parts & Repair Kits
serVICe parts eBp Item Description part # Pressure Gauge U902FB Elbow Adapter U1104B Coil 24VDC 37636 Coil 110VAC 37743 Coil 220VAC 55601 Cartridge Valve 37637 Pressure Relief Valve 55660-E Hose Assembly 35869-400 Bung Adapter F360002 * Injector version only repaIr KIts eBp Item Description part #... -
Page 6: Exploded View
eXplODeD VIeW eBp RELIEF DETAIL OPERATORS MANUAL ElEctric barrEl pump... -
Page 7: Repair Kit Illustration
nOtes repaIr KIt parts IllustratIOn eBp repaIr KIts Description part number Pressure Valve Repair Kit FGK3 Foot Valve Repair Kit FGK4 High Pressure Piston Repair Kit FGK5 Grease Intake Repair Kit F740958 Item Description Large Roll Pin Tabbed Lock Washer Check Spring Check Ball HP Piston... -
Page 8: Example Layouts
Versions are also available for all standard drum sizes. Now you can standardize on one pump design throughout your plant! FL1 INJECTORS ELECTRIC BARREL PUMP M2500G & PVBM DIVIDERS M2500G BIJUR DELIMON REVERSING VALVE & DD VALVES OPERATORS MANUAL ElEctric barrEl pump... -
Page 9: Wiring & Hydraulic Schematics
WIrInG eBp 110 VaC & 220 VaC 50/60 Hz sInGle pHase BLACK (LIVE 1) WHITE (NEUTRAL) GREEN (GROUND) 24 VDC RED (+) BLACK (-) HYDraulIC sCHeMatICs eBp progressive/Dualine schematic eBp Injector schematic OPERATORS MANUAL ElEctric barrEl pump... -
Page 10: Ebp Dimensions
eBp DIMensIOnal sCHeMatICs Pump does not include drum. See page 12 for accessories. Measurements shown in inches. sIze [mm in brackets] 120 lb Drum (50 kg) 47.0” (1194mm) 400 lb Drum (185 kg) 55.0” (1397mm) Drum sizes that can be serviced: • 120 lb. -
Page 11: Ebp Accessories
eBp aCCessOrIes DesCrIptIOn part nuMBer Hose Assemblies 72”-IN LG 200549 345 bar/5000 psi WP 1/2”I.D. Hose X 144”-IN LG HOS13907B 3/4-16 SAE female ends 3/4-16 x 1/2NPT U43188 STR Male Adapters for hoses 3/4-16 x 3/8NPT U43168 (Additional sizes in Catalog 151) 3/4-16 x 1/4NPT U43148 Drum Covers... -
Page 12: Ebpd How To Order
HOW tO OrDer eBpD EBPD - Motor Voltage Level Switch Options 24 – 24VDC – Leave BLANK for no Level Switch 1 1 – 110VAC 50/60Hz 1Ph L – With Level Switch NEMA 4 Valve Options Container Size 1 – Progressive/Dualine with A –... -
Page 13: Ebpd Dimensions
eBpD DIMensIOnal sCHeMatICs 60 & 90 lB RETURN TUBE 8 " MAX. Measurements shown in inches. RETURN TUBE BOTTOM [mm in brackets] TO THE TOP OF COVER 90 LB. DETAIL 4 " [1149.4] 49" [1244.6] 2 " [723.9] 8 " [511.2] 8 "... -
Page 14: Ebpc - Ac Control Pkg 110V
eBpC COntrOl paCKaGes aC applications – 110VaC Farval’s EBPC AC Control Packages are available for the Electric Barrel Pumps. The packages are assembled into a Polycarbonate Nema 4X enclosure, 12” x 10” x 4” with window. They include a relay, terminal blocks and SMAC controller. - Page 15 eBpC COntrOl paCKaGes aC applications – 110VaC electrical terminal Connections eBpC-11aC Fuse replaCeMent The EBPC uses Type CC Fuses (slow blow recommended). EBPC-11AC uses a 4A delay fuse P.N. FUS14033E OPERATORS MANUAL ElEctric barrEl pump...
-
Page 16: Ebpc - Ac Control Pkg 220V
eBpC COntrOl paCKaGes aC applications – 220VaC Farval’s EBPC AC Control Packages are available for the Electric Barrel Pumps. The packages are assembled into a Polycarbonate Nema 4X enclosure, 12” x 10” x 4” with window. They include a relay, terminal blocks and SMAC controller. - Page 17 eBpC COntrOl paCKaGes aC applications – 220VaC electrical terminal Connections eBpC-22aC Fuse replaCeMent The EBPC uses Type CC Fuses (slow blow recommended). EBPC-22AC uses a 2A delay fuse P.N. FUS14033D OPERATORS MANUAL ElEctric barrEl pump...
-
Page 18: Ebpc - Dc Control Package
eBpC COntrOl paCKaGes DC applications Farval’s EBPC DC Control Packages are available for the Electric Barrel Pumps. The packages are assembled into a Polycarbonate Nema 4X enclosure, 12” x 10” x 4” with window. They include a Solid State Relay, terminal blocks and SMDC controller. HOW tO OrDer name Description... - Page 19 eBpC COntrOl paCKaGes DC applications electrical terminal Connections eBpC-24DC Fuse replaCeMent The EBPC uses Type CC Fuses (slow blow recommended). EBPC-24DC uses a 15A delay fuse P.N. FUS14033G OPERATORS MANUAL ElEctric barrEl pump...
-
Page 20: Package
preMIuM eleCtrIC enClOsure paCKaGes aC applications Farval’s Premium AC Control Packages are available for the Electric Barrel Pumps. The 55084 Packages are assembled into a Fiberglass Nema 4X enclosure, 14” x 12” x 8”. They include a Motor starter and options for heater or buzzer. - Page 21 eleCtrIC enClOsure paCKaGes aC applications WIrInG OPERATORS MANUAL ElEctric barrEl pump...
-
Page 22: Troubleshooting
trOuBlesHOOtInG Issue pOssIBle Cause reMeDY The lube pump is pow- No power to pump motor Connect proper voltage to pump ered up and no lubricant motor is pumped out the outlet port. No pressure been built Pressure relief valve does not Check that there is no lubricant up in the main outlet line. -
Page 23: Notes
nOtes OPERATORS MANUAL ElEctric barrEl pump... - Page 24 Innovators of engineered lubrication technology since 1872 Bijur Delimon International has ISO 9001:2015 and ISO 14001:2015 quality certified manufacturing facilities around the world, so your centralized lubrication system meets the highest industry quality standards. It’s all part of our commitment to quality and customer service.
