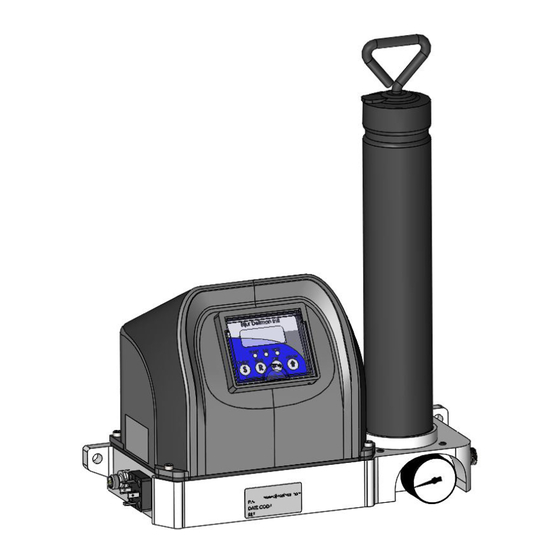

2 x 8.5 Dia. holes, 306 center dimension Option A Option B Option C Option M Option N Height (mm)(loaded condition) Weight (excluding cartridge) 4.7 kg (10.4lbs) 4.4 kg (9.7lbs) 3.9 kg (8.6lbs) 4.0 kg (8.8 lbs) Overhead Clearance (mm) BIJUR DELIMON INTERNATIONAL OPERATORS MANUAL 36917 r#1...
Controls F— Terminal Strip G— Controller Example: To order a Cartridge Lube Pump 24VDC that uses standard 14oz. grease cartridges, controller with cable gland connectors and a Mobile Finish, use Part #CLP-A2GXM. Pump Cartridge Styles OPTION A OPTION B OPTION C...
Follower Cap on Inlet (remains in cartridge) Follower Cap on Inlet (remains in cartridge) The table below summarizes the benefits of each of these cartridges, when used in the CLP and should assist in deciding which type of cartridge to use for your particular application...
Mounting & Installation/Start-up Mounting CLP should be mounted horizontally, via the 2 mounting lugs on the baseplate of the pump. Mounting Centers: 306 mm Mounting Bolts: M8 or 5/16” (Lengths dependent on the specific installation) Use of flat & locking washers is also recommended.
CLP. Type B 1. Ensure the appropriate thread adaptor is threaded tight to the base of the CLP to provide the necessary seal on the gasket underneath. Orientation of the thread adaptor after installation is not important.
3. Withdraw empty cartridge and discard carefully. 4. Carry out the steps outlined in “Loading a Cartridge” for Type A. 5. For Controller models, the “R” button must be pressed to resume CLP operation. Type B 1. Unscrew the cartridge from the CLP.
The CLP may be used in conjunction with lubrication divider valves to progressively apply grease to individual lube points. Consideration should be given to the number of lube points, the size and length of the feed tube from the CLP to the divider valve and the size and length of the tubes to the individual lube points.
9. Terminal 6,8 for -vdc supply to all switches All wiring labels are adhered to the underside of the motor cover of the CLP. For Options Y & Z, external labels may be found overhead the connectors. The wiring diagram labels and the external connector labels for all the available options are given in the next section.
Wiring NO CONNECTORS (OPTION X) TERMINAL STRIP MODELS (OPTION F) CLP- A _ F X _ and CLP-B_F X_ CLP-C_F X _ NO CONNECTORS (OPTION X) CONTROLLER MODELS (OPTION G) CLP-A_GX_ and CLP-B_GX_ CLP-C_GX_ BIJUR DELIMON INTERNATIONAL OPERATORS MANUAL 36917 r#1...
Page 13
Wiring DIN CONNECTOR (OPTION Y) TERMINAL STRIP MODELS (OPTION F) CLP- A_FY_ and CLP-B_FY_ CLP-C_F Y _ INTERNAL WIRING INTERNAL WIRING CONNECTOR PIN-OUTS CONNECTOR PIN-OUTS BIJUR DELIMON INTERNATIONAL OPERATORS MANUAL 36917 r#1...
Page 14
Wiring DIN CONNECTOR (OPTION Y) CONTROLLER MODELS (OPTION G) CLP-A_GY_ and CLP-B_GY_ CLP-C_GY_ INTERNAL WIRING INTERNAL WIRING CONNECTOR PIN-OUTS BIJUR DELIMON INTERNATIONAL OPERATORS MANUAL 36917 r#1...
+ Furthermore, If a low level fault is signalled, and the cartridge replaced, the “R” button must be depressed, in order to resume operation. (A power reset is not sufficient, as the low level fault is held in memory) BIJUR DELIMON INTERNATIONAL OPERATORS MANUAL 36917 r#1...
Page 18
Example 1 – Configure CLP for Timer Mode 30 seconds on, and 4 hours off Open protective flap on motor cover to access the programming keys. Hold down the S and R keys until the d mode is flashing.
Page 19
Cycle Control Mode (d 3) Continued Example 2 – Configure CLP for Cycle Switch Mode 5 cycles on, and 60 minutes off (expect cycles to be complete in max. 2 minutes) Open protective flap on motor cover to access the programming keys.
(Mode d3 - Progressive) Cycle switch did not activate within monitor time. • ”EE”-Internal memory failure (Checked at power up) No recovery. Turn off power and try again. If problem persists, replace control. • ”LLPP”-”Green LED” -Low Voltage Check and apply correct voltage BIJUR DELIMON INTERNATIONAL OPERATORS MANUAL 36917 r#1...
Check for wear of the connecting rod mechanism and that pins/clips are present. Check security of lock nut and retighten as necessary. Re-apply grease on both pivot points once more of the connecting rod Check sump gasket still intact, replace as necessary. BIJUR DELIMON INTERNATIONAL OPERATORS MANUAL 36917 r#1...
Check switch is functioning ok No switch signal received by controller within EEcY displayed on controller Check wiring from switch to CLP is correct preset time Check that system is operating switch. Check that controller monitor time PXXX (in seconds) appropriate for system D2 mode has inadvertently been set.
