Summary of Contents for Brunner IRON DOG 02
Page 1
User manual IRON DOG 02 ©2021...
Page 2
Winter can come; we’re looking forward to it. Welcome to the IRON DOG family. Eggenfelden, August 2007 Ulrich Brunner The name >>EISERNER HUND<< - >>IRON DOG<< - is a registered and protected mark. Individual models are registered as design patents. (1.4) © 2021 Brunner GmbH...
Page 3: Table Of Contents
Basic principles............11 Firewood and heating power........14 Seasoning of firewood..........16 Amount of fuel............. 17 Operation..............18 Heating with the Iron Dog...........19 Ashes................21 Cleaning and maintenance......... 22 Hint................23 Error search..............24 Attention............... 26 © 2021 Brunner GmbH (1.4)
Page 4: My Iron Dog

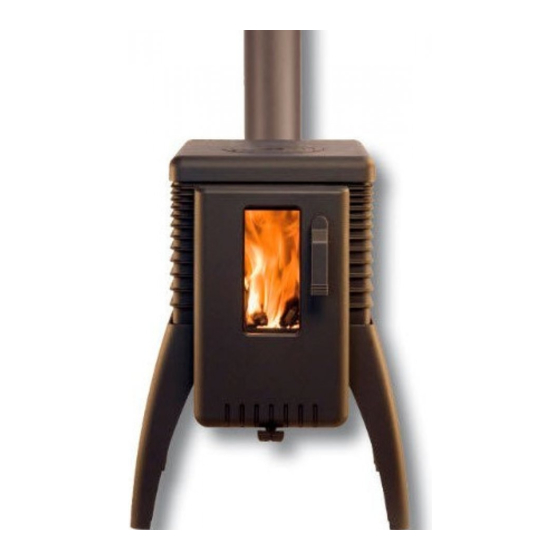

Nearly all components of the IRON DOG are made of solid cast iron. Ash boxes, screws and bolts are made of stainless steel. A special, tempera- ture-firm color coating protects the surface. All components of this cast iron stove are manufactured and assembled in Germany with great care (1.4) © 2021 Brunner GmbH...
Page 5: Technical Data
TECHNICAL DATA Illustration 1: measurements 1 Ash pan 2 Air control push rod 3 Fire chamber 4 Identification plate 5 Hot plate 6 Hot plate cover © 2021 Brunner GmbH (1.4)
Page 6
Illustration 2: components (1.4) © 2021 Brunner GmbH...
Page 7
Lower heat shield door 15.4 Firing door window 15.6 Door handle assembly 15.7 Closing tongue Air channel front Air channel back cover Air control rod Back wall firing chamber Blanking cover for flue exit Illustration 3: minimum distances © 2021 Brunner GmbH (1.4)
Page 8
(1.4) © 2021 Brunner GmbH...
Page 9
(without insulation panel) approvals CE nach EN 13240 1) the data was determined in an EN 13240 test with a chimney stove with a horizontal smoke tube connec- tion, tube length 35 cm © 2021 Brunner GmbH (1.4)
Page 10: Safety Guidelines
The external surfaces of the IRON DOG become hot, especially the window of the fire door. Don’t touch – Burning risk! Particularly warn children for this. Keep children away from the heated IRON DOG. Use safety gloves during operation. (1.4) © 2021 Brunner GmbH...
Page 11: Basic Principles
The wood load degases with beautiful flames in approximately 60 - 70 minutes and produces a heating output between 5 - 9 kW/h depending on the quantity of wood (1,5 kg - 2,5 kg). © 2021 Brunner GmbH (1.4)
Page 12
For a simple operation the air income is regulated with one single air con- trol rod. Please heat with the given combustion air regulations. Insufficient combustion air leads to an increased environmental impact, bad efficiency and creosote in the stove and the chimney. (1.4) © 2021 Brunner GmbH...
Page 13
– flame and flue gases must visibly take off). In case of too little draught first light kindling and add burning wood when the draught has been created. © 2021 Brunner GmbH (1.4)
Page 14: Firewood And Heating Power
Natural firewood (left) is the best fuel for fireplaces, but you can use also wood briquettes according to DIN 17225-3, Class A1, length >14 cm (5.51 in), diameter >8 cm (3.15 in) (right). (1.4) © 2021 Brunner GmbH...
Page 15
Most suitable for use in open fireplaces are all types of hardwood, like beech or birch. Softwood species (conifers) have a closed-cell structure which is bursting during combustion, causing glowing embers to be thrown out of the fireplace. Hardwood is burning more calm and evenly. © 2021 Brunner GmbH (1.4)
Page 16: Seasoning Of Firewood
The best time to cut trees is from December till February. Firewood should be stored under a roof or in a ventilated building (shed). Do not store freshly cut wood in the cellar or in a closed area. It can’t dry there. (1.4) © 2021 Brunner GmbH...
Page 17: Amount Of Fuel
To large amounts of fuel or unsuitable fuel can lead to excessive heating and thus to damage. Filling weight Log lenght Log size 1,5 kg - 2,5 kg 25 cm - 33 cm 20 cm - 30 cm © 2021 Brunner GmbH (1.4)
Page 18: Operation
The air control push rod (4) can be put in three different positions. This way the respective air circulations are adapted to the combustion situation. (1.4) © 2021 Brunner GmbH...
Page 19: Heating With The Iron Dog
To start the fire, use small wood; large wood logs degas and ignite badly in a cold fireplace. Never use products as gasoline, white spirits or the like to start a fire! © 2021 Brunner GmbH (1.4)
Page 20
(deflagration). The Iron Dog draws its combustion air from the installation area. Con- sider the combustion air need in case of simultaneous use of other fire places in the room. (1.4) © 2021 Brunner GmbH...
Page 21: Ashes
Empty the ash pan only when the ashes are cold and keep them during at least 24 h in a fire resistant container. Fire risk! In case of fire, call the fire-brigade! © 2021 Brunner GmbH (1.4)
Page 22: Cleaning And Maintenance
Afterwards, wipe with a dry cleansing tissue. Do not use scrubbing tools or aggressive cleaning agents! The Iron Dog should be examined by your specialized enterprise regularly. Illustration 5: take off the hotplate Illustration 6: lift the baffle plate (1.4) © 2021 Brunner GmbH...
Page 23: Hint
The IRON DOG should be examined by your specialized enter- prise regularly. Non conform use of the equipment leads to expiring of the guarantee! The intended use of the equipment is guaranteed when the guidelines of the User Guide are observed. © 2021 Brunner GmbH (1.4)
Page 24: Error Search
Wood is damp or wet Fire chamber temperature too low Combustion air not suffi- Without sufficient combus- Control the position of the cient tion air supply bad igniting push rod and flow. (1.4) © 2021 Brunner GmbH...
Page 25
Check whether other stoves The chimney draught can be or fireplaces are connected worsened by other connect- to the chimney. ed fireplaces. © 2021 Brunner GmbH (1.4)
Page 26: Attention
Actual standards and reg- ulations must be observed. IRON DOG - Partner: Purchase date: Ulrich Brunner GmbH Zellhuber Ring 17-18 D-84307 Eggenfelden Tel.: +49 (0) 8721/771-0 Fax: +49 (0) 8721/771-100 Email: info@brunner.de Art.Nr.: 19795 (1.4) © 2021 Brunner GmbH...
Page 27
© 2021 Brunner GmbH (1.4)
