MX-1007-HYB
User Manual
v1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-1007-HYB and is the answer not in the manual?

Questions and answers

Related Manuals for Wyrestorm MX-1007-HYB

Summary of Contents for Wyrestorm MX-1007-HYB

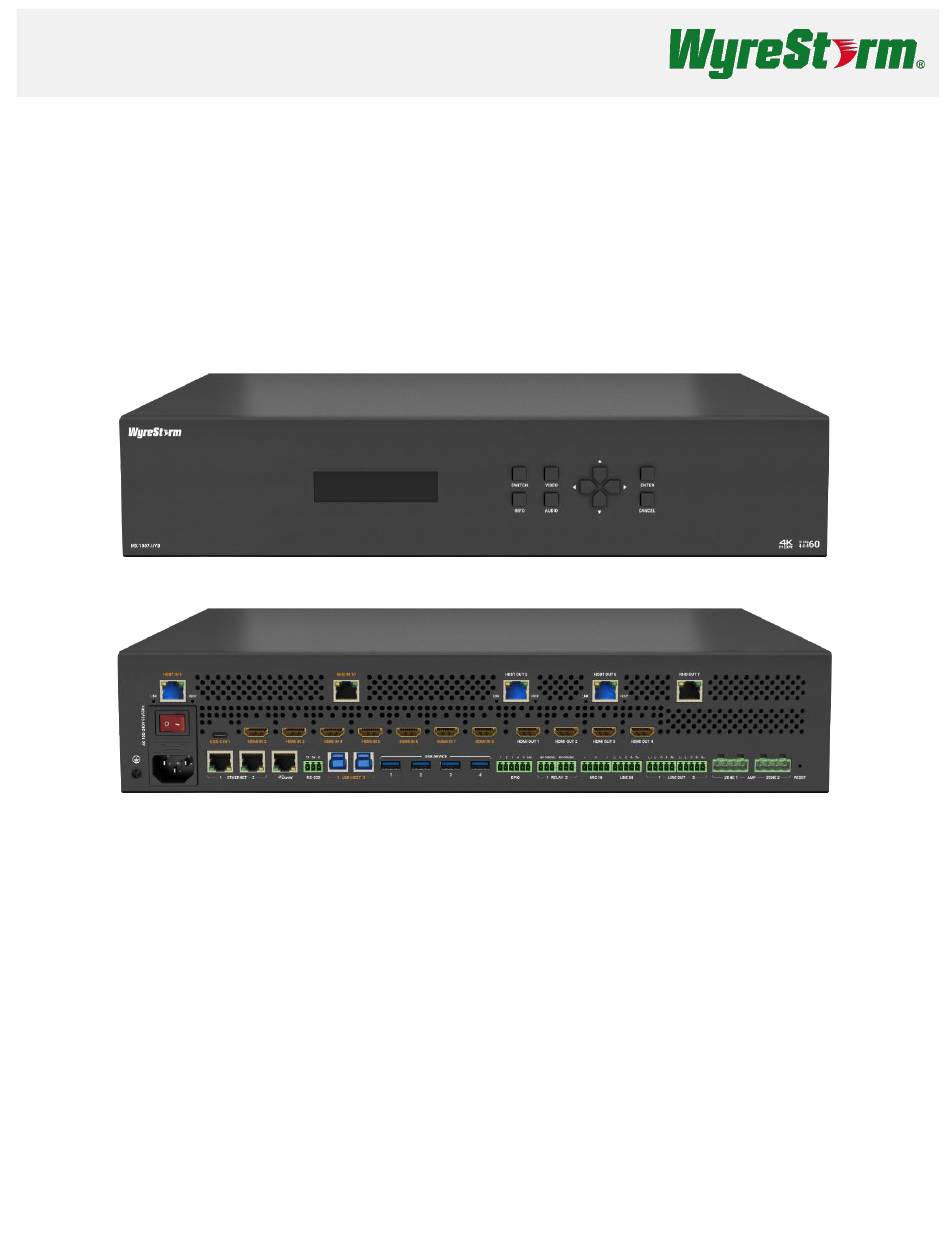

  • Page 1 MX-1007-HYB User Manual v1.0...

  • Page 2: Table Of Contents

    Panel Description ................................7 Installation ..................................10 Wiring Diagram ................................10 Pinout Introduction ..............................12 Control of the Matrix..............................14 Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 2 of 34 Support@WyreStorm.com MX-1007-HYB User Manual | 231207...

  • Page 3: Overview

    Overview On behalf of WyreStorm, thank you for your purchase! You are now a part of groundbreaking-next generation technology. Introducing the MX-1007-HYB, a fixed 2RU 10x7 fast switching matrix with multi-format video connections and a feature- rich, easy-to-use audio DSP. It’s built with 4K60 scalers on all video outputs and features seamless switching when switching between video inputs, leaving behind delays and black screens.

  • Page 4: Package Contents

    , 1280x768 , 1280x800 , 1280x960 1280x1024 ,1360x768 , 1366x768 , 1440x900 , 1600x900 , 1600x1200 1680x1050 ,1920x1200 SMPTE: Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 4 of 34 Support@WyreStorm.com MX-1007-HYB User Manual | 231207...
  • Page 5 4K@60Hz 4:2:0 36bpp 4K@30Hz 1080P@60Hz Cat 5e/6 40m/131ft 4K@60Hz 4:4:4 24bpp 4K@60Hz 4:2:2 36bpp Cat 6a (U/FTP) 100m/330ft 4K@60Hz 4K@30Hz Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 5 of 34 Support@WyreStorm.com MX-1007-HYB User Manual | 231207...
  • Page 6 100m/330ft or more when connected with 4K@60Hz 4:4:4 24bpp NHD IN/OUT) an Ethernet switcher HDMI Input/Output: 15m/49ft 1080P@60Hz Input/Output: 10m/33ft 4K@30Hz 4:4:4 24bpp Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 6 of 34 Support@WyreStorm.com MX-1007-HYB User Manual | 231207...

  • Page 7: Panel Description

    The LCD indicator window will display the video information of selected input port, including resolution, color space, and HDCP. CANCEL Button Will cancel the operation or exit the current mode. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 7 of 34 Support@WyreStorm.com...
  • Page 8 The following cable are recommended to use: USB Type-C to Type-C cable (USB 3.0 or above) Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 8 of 34 Support@WyreStorm.com...
  • Page 9 More than 5s but less than 15s: Reset the IP mode of the device to DHCP, and reset the login passwords of telnet and web UI to defaults. The default login password of telnet is “wyrestorm”, and the default login password of web UI is “admin”.

  • Page 10: Installation

    Position and install the mounting brackets provided to the front panel on both sides. Install the matrix in the rack by using the mounting screws to affix the matrix to the rack. Wiring Diagram Wiring 1: Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 10 of 34 Support@WyreStorm.com...
  • Page 11 Wiring 2: Wiring 3: Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 11 of 34 Support@WyreStorm.com MX-1007-HYB User Manual | 231207...

  • Page 12: Pinout Introduction

    2 x 30watts 8Ω speakers, or 2 x 50watts 4Ω speakers. Pinout for 4 x 15watts 8Ω speakers, or 4 x 25watts 4Ω speakers Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 13 Connection with 2 x 30watts 8Ω speakers, or 2 x 50watts 4Ω speakers Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 13 of 34 Support@WyreStorm.com MX-1007-HYB User Manual | 231207...

  • Page 14: Control Of The Matrix

    Control System or PC are configured correctly. A professional grade RS232 serial interface software (e.g., Putty or Serial Assist) may be needed as well. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 15 “GET IPADDR<CR><LF>”. Input the IP address obtained in the last step in your browser and press “Enter” key on keyboard. The following page can be access in: Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 15 of 34 Support@WyreStorm.com...
  • Page 16 Input new password and click “Apply” to enter the main page. Note: The new password must be 4 to 16 characters in length, alphanumeric only. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 17 The operations are same with logging through the home page. The main page includes three tabs: Matrix Control, General Setting and Advanced Setting. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 17 of 34 Support@WyreStorm.com...
  • Page 18 By default, Video Input 1 routes to Output 1…Video Input 6 routes to Output 6, Video Input 7 routes to Output 7. Audio Routing This section allows users to select mixed audio sources, set ducking, and set mixer audio output. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 18 of 34 Support@WyreStorm.com...
  • Page 19 When select the USB Host Audio, it will be mixed to output from the output channels users selected. Video De-embed (multiple-choice): Select the video de-embed audio as input source from the drop-down ➢ menu. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 19 of 34 Support@WyreStorm.com...
  • Page 20 Mixer Outputs (multiple-choice): Click the check box to select the audio output channel(s) among Line Out 1, Amplifier Out, Dante 1-2, and NHD- 500 OUT. The audio outputs(s) will output the audio from the selected audio Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 21 Dante 3-4. The audio outputs(s) will output the audio from the selected audio source. All selected audio outputs will output the same audio. Other settings are same with selecting Local Audio mixer1. When selecting Remote USB mixer: Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 21 of 34 Support@WyreStorm.com...
  • Page 22 Active USB Host Selection: Select the USB Host from the drop-menu. The default setting is USB-B Port1. For example, when selecting USB-B Port1, all USB devices the matrix connected and the remote receivers connected are connected with USB-B Port 1. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 22 of 34 Support@WyreStorm.com...
  • Page 23 Display On/Off: Input the corresponding CEC command, then click “Save” to save it. ➢ Note: If users want to change CEC commands, please refer to the CEC specification document. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 23 of 34 Support@WyreStorm.com...
  • Page 24 Save: Save the selection settings to the matrix.   Load: Load the saved preset file from the matrix. General Setting Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 24 of 34 Support@WyreStorm.com MX-1007-HYB User Manual | 231207...
  • Page 25 A/V Configuration Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 25 of 34 Support@WyreStorm.com MX-1007-HYB User Manual | 231207...
  • Page 26 By default, Output HDCP Support is “Auto”, follow the input HDCP. For example, input HDCP is HDCP 2.2, output HDCP is also HDCP 2.2. When set it to HDCP v1.X, it means the HDCP of the output is set to HDCP 1.4. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 27 This section allows users set amplifier channel. The matrix supports two amplifier channel modes: 4 x 15watts and 2 x 30watts. The default setting is “4 x 15watts”. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 28 “SEND” button. Note: The entered commands will only be sent to remote transmitter or receiver connected 3rd-party device. It needs to be supported by the 3rd-party device. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 28 of 34 Support@WyreStorm.com...
  • Page 29 Pull-up resistor. While set Pull-up Resistor to “Disconnected”, the pull-up voltage is determined by the external connected pull-up resistor. When GPIO state is set to “Low”, it will output low level.  Apply: Click to confirm the settings. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 29 of 34 Support@WyreStorm.com...
  • Page 30 This section shows the device’s information, including Model, Mac address, IP address and firmware version. Fan and Temperature This section shows the device’s fan speed and temperature. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 30 of 34 Support@WyreStorm.com...
  • Page 31 TelnetS login password. The default setting is “Disable”. The default user name and password for logging in the Telnet is “admin” and “wyrestorm”. Note: The password must be 4 to 16 characters in length, and alphanumeric only.
  • Page 32 Note: Password must be 4 to 16 characters in length (alphanumeric only). FW Update This section allows users to update firmware. To update Firmware: Click “Browse” for the update bin file. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 32 of 34 Support@WyreStorm.com...
  • Page 33 This section allows users to input and send API commands to the matrix. The return value will be displayed in “Log” section. Apply: Click “Apply” to send the input command to the matrix. For example: Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 33 of 34 Support@WyreStorm.com...
  • Page 34 This section shows the operation log and commands return. Export Log: Click to export the log file to local PC. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 34 of 34 Support@WyreStorm.com MX-1007-HYB User Manual | 231207...
