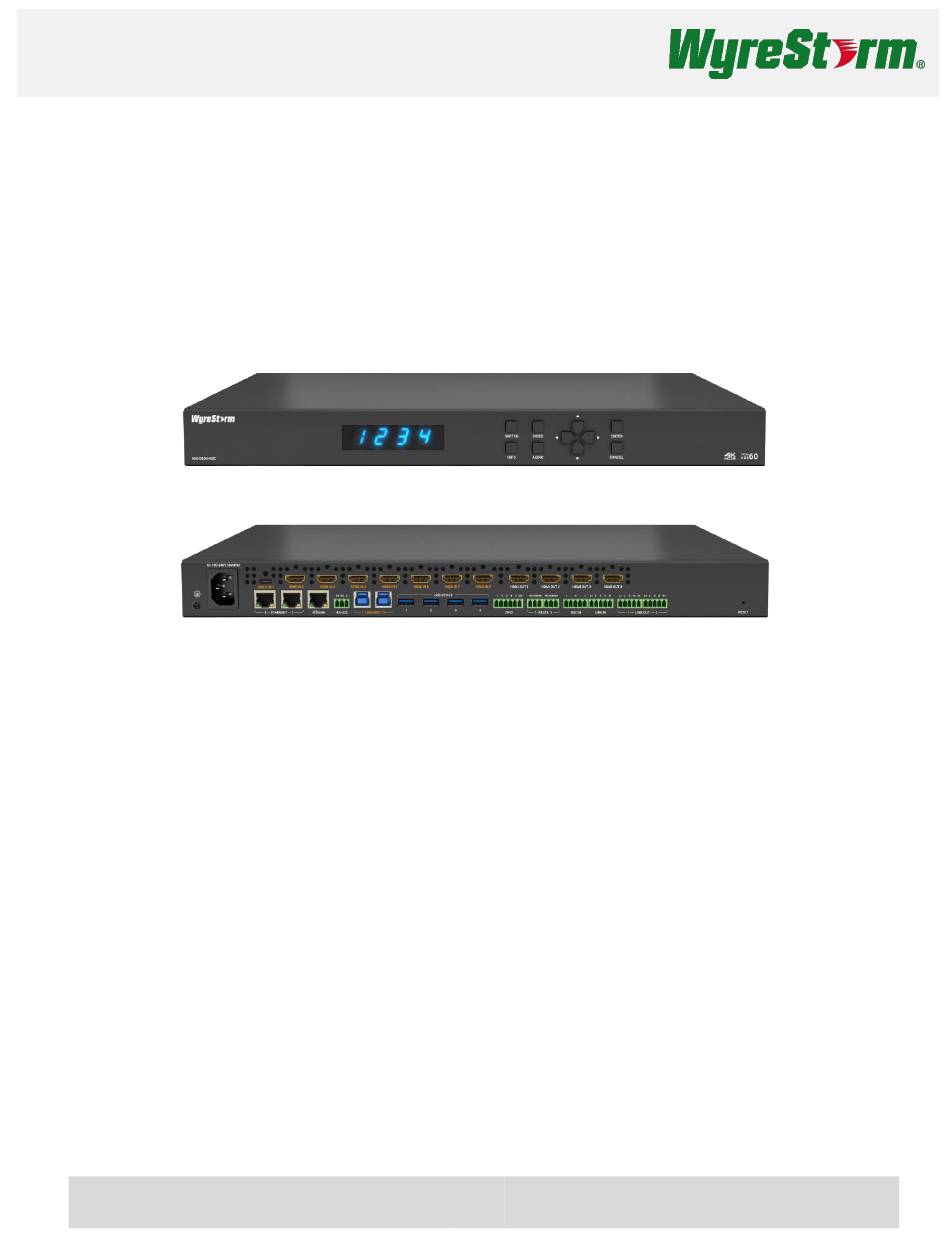

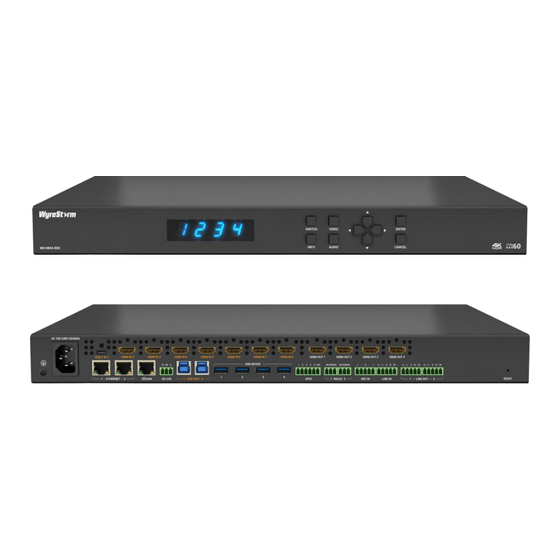

MX-0804-EDC
User Manual
v1.0
Copyright © 2023 WyreStorm Pro AV Corporation |
Technical Support: 844.280.WYRE (9973)
WyreStorm.com
1 of 27
Support@WyreStorm.com
MX-0804-EDC User Manual | 231213

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-0804-EDC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wyrestorm MX-0804-EDC

Summary of Contents for Wyrestorm MX-0804-EDC

  • Page 1 MX-0804-EDC User Manual v1.0 Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 1 of 27 Support@WyreStorm.com MX-0804-EDC User Manual | 231213...

  • Page 2: Table Of Contents

    Panel Description ..............................5 Installation ................................8 Wiring Diagram ................................ 8 RELAY Pinout Introduction ........................... 10 Control of the Matrix ............................. 10 Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 2 of 27 Support@WyreStorm.com MX-0804-EDC User Manual | 231213...

  • Page 3: Overview

    Navigating the MX-0804-EDC is a breeze, offering flexible control options such as front panel buttons, RS-232, and LAN control (Telnet & Web UI). Elevate your experience further with seamless integration into the WyreStorm Sygma cloud, providing control for reboots, firmware upgrades, and other features.

  • Page 4: Package Contents

    Control Method Front panel buttons, RS-232, LAN (Telnet API & Web UI) General Operating Temperature/RH 0℃ ~ 45℃ (32℉~113℉） Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 4 of 27 Support@WyreStorm.com MX-0804-EDC User Manual | 231213...

  • Page 5: Panel Description

    4K@30Hz 4:4:4 24bpp Input/Output: 5m/16ft 4K@60Hz 4:4:4 24bpp USB Type-C 2m/7ft 4K@60Hz 4:4:4 24bpp Panel Description Front Panel Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 5 of 27 Support@WyreStorm.com MX-0804-EDC User Manual | 231213...
  • Page 6 “Front Panel Control” section. Rear Panel AC 100~240V 50/60Hz Connect to the power source via the provided AC power cable. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 6 of 27 Support@WyreStorm.com MX-0804-EDC User Manual | 231213...
  • Page 7 More than 5s but less than 15s: Reset the IP mode of the device to DHCP, and reset the login passwords of telnet and web UI to defaults. The default login password of telnet is “wyrestorm”, and the default login password of web UI is “admin”.

  • Page 8: Installation

    Install the matrix in the rack by using the mounting screws to affix the matrix to the rack. Wiring Diagram Wiring 1 (Local Presentation): Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 8 of 27 Support@WyreStorm.com...
  • Page 9 Users can set audio sources and audio outputs through API commands or web UI. Refer to the separate document “API Command Set_MX-0804-EDC” or “Web UI Control” section for more information. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 9 of 27 Support@WyreStorm.com...

  • Page 10: Relay Pinout Introduction

    2) Press the Left ( ) or Right ( ) button to select audio output channel. 3) Press the Up ( ) or Down ( ) button to adjust volume of the selected channel. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 11 The device’s port number, this is non-required for some Telnet control tools. Default setting is 23.  For example, if the device’s IP address is 192.168.11.143, the command for telnet connection shall be the following: telnet 192.168.11.143 Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 11 of 27 Support@WyreStorm.com...
  • Page 12 The default password is “admin”. Upon first-time login, after and after clicking “Admin Login”, users will enter the following window to change login password. Input new password and click “Apply” to enter the main page. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 13 The operations are same with logging through the home page. The main page includes three tabs: Matrix Control, General Setting and Advanced Setting. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 13 of 27 Support@WyreStorm.com...
  • Page 14 This section allows users to select mixed audio sources, set ducking, and set mixer audio output. The matrix supports three audio mixer modes: Local Audio mixer1, Local Audio mixer2, Remote USB mixer. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 15 Ducking trigger, other inputs are Ducked. For example, when select Mic 1 as master, other input sources’ volume will be Ducked down when Mic 1 is triggered Ducking. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 15 of 27 Support@WyreStorm.com...
  • Page 16 Output 3-4. The audio outputs(s) will output the audio from the selected audio source. All selected audio outputs will output the same audio. Other settings are same with selecting Local Audio mixer1. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 17 (connected with HDBT receivers or NHD 500 receivers) connected. Active USB Host Selection: Select the USB Host from the drop-menu. The default setting is USB-B Port1. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 17 of 27 Support@WyreStorm.com...
  • Page 18 2 minutes. Command Setting: Click “ ” to enter the following window to do command testing, set and save commands of  Display On/Off. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 18 of 27 Support@WyreStorm.com...
  • Page 19 Save: Save the selection settings to the matrix.   Load: Load the saved preset file from the matrix. General Setting Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 19 of 27 Support@WyreStorm.com MX-0804-EDC User Manual | 231213...
  • Page 20 EDID, select HDCP, output resolution, and get output video and audio information. Source/Zone: Select an input/output to set (the selected input/output button turns from white to green).  Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 20 of 27 Support@WyreStorm.com...
  • Page 21 Video In/Audio In (for input 1~8): Shows the video and audio information of the selected input. Video Out/Audio Out (for input 1~4): Shows the video and audio information of the selected input.  Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 21 of 27 Support@WyreStorm.com...
  • Page 22 GPIO Channel: Select the port number from the drop-down menu to configure.  GPIO Type: Select the GPIO trigger type from the drop-down menu between Digital In and Digital Out. When selecting Digital In (default): Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 22 of 27 Support@WyreStorm.com...
  • Page 23 NC and COM pins of the selected are inactive. When it is set to “Off”, NC and COM pins of the selected relay port are active, and NO and COM pins of the selected relay port are inactive. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 24 This section shows the device’s information, including Model, Mac address, IP address and firmware version. Fan and Temperature This section shows the device’s fan speed and temperature. Network Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 24 of 27 Support@WyreStorm.com...
  • Page 25 TelnetS login password. The default setting is “Disable”. The default user name and password for logging in the Telnet is “admin” and “wyrestorm”. Note: The password must be 4 to 16 characters in length, and alphanumeric only.
  • Page 26 Factory Reset: Click to reset the device to factory defaults, and wait 2 minutes to re-access Web UI by refreshing  the browser. Telnet API Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 26 of 27 Support@WyreStorm.com...
  • Page 27 Apply: Click “Apply” to send the input command to the matrix. For example: This section shows the operation log and commands return. Export Log: Click to export the log file to local PC. Copyright © 2023 WyreStorm Pro AV Corporation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 27 of 27 Support@WyreStorm.com...
