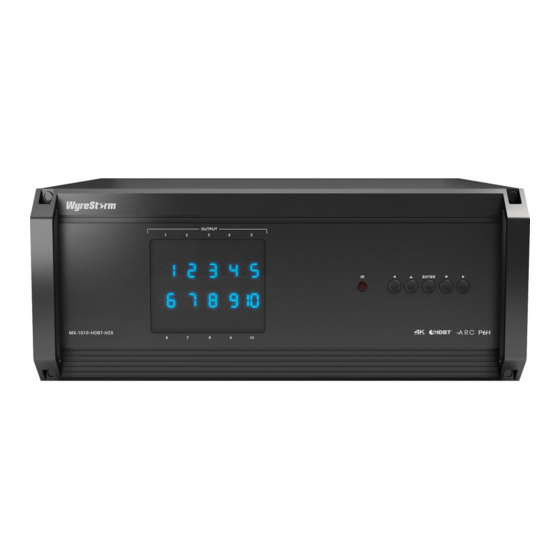

Custom 4K HDR Video Matrix with Audio Matrix & DSP
MX-1010-H2XC | MX-1616-H2XC
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features before beginning the
installation process.

IMPORTANT! Installation Requirements

• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Install the latest firmware to ensure that all features described in this
document are available during and after installation.
• Read through the
guidelines before creating or choosing premade cables.

Recommended Products

To take full advantage of the features of this matrix, WyreStorm recommends
the following products be used within this product.
RX-70-4K-SCL
Scaling receiver that allows for 4K and 2K screens to be used while
maintaining output of 4K.
RX-70-4K-ARC
HDCP 2.2 receiver with audio in to send audio from built in apps back to the
matrix.
RXF-300-4K
For use with TX-H2X-OM3 when duplex OM3 Multimode fiber is required.

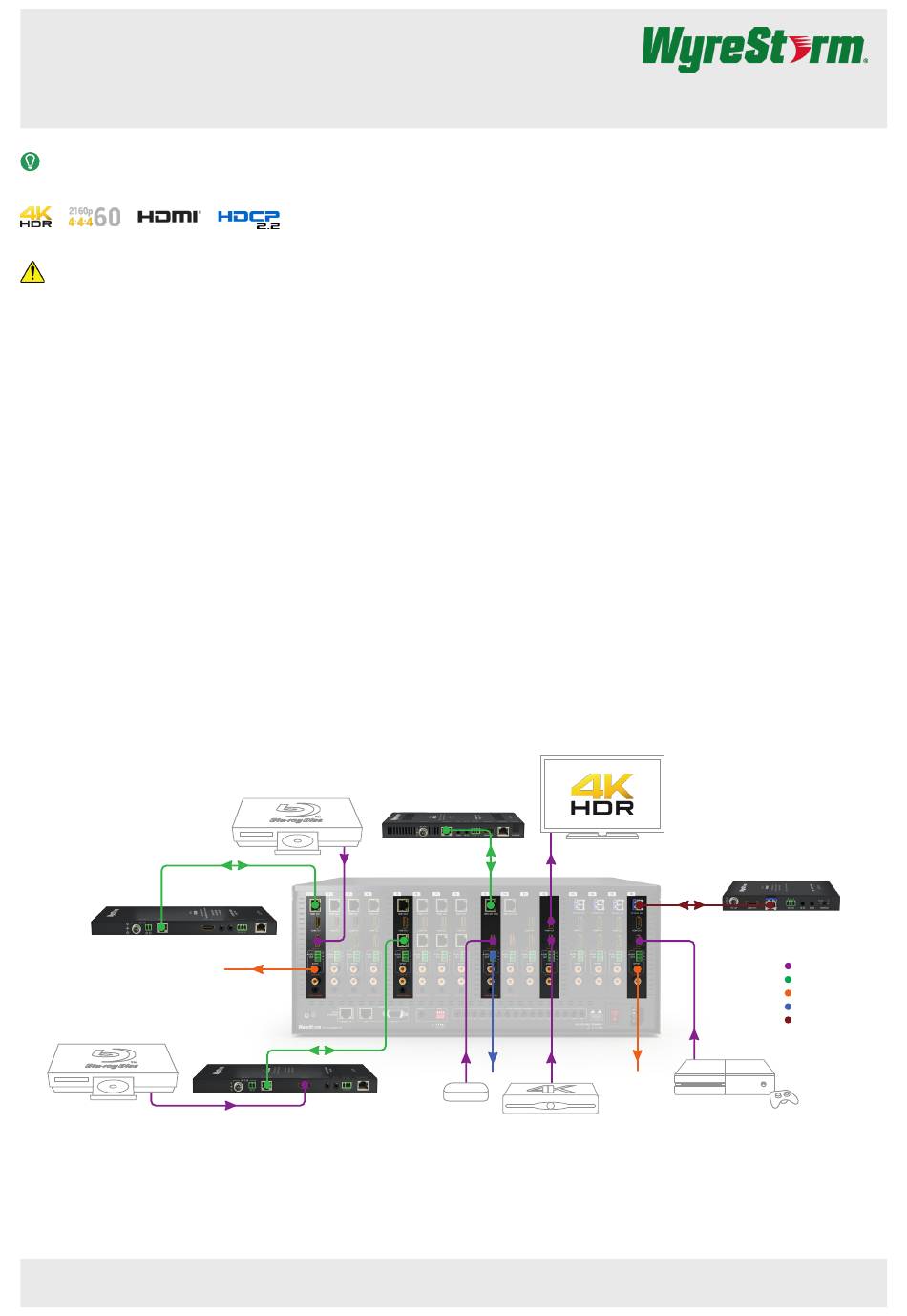

Basic Wiring Diagram

RX-70-4K
(Used for TX-H2X-HDMI
and TX-H2X-HDBT Cards)
Blu-ray Player
Copyright © 2018 WyreStorm Technologies |
MX-xxxx-H2XC Quickstart Guide | 180622
section for important wiring
Blu-ray Player
RXV-70-4K-ARC
Media Player
wyrestorm.com
RXV-70-4K
For use when content too high in bandwidth for HDBaseT is required, such as
high-framerate HDR or 4:4:4/60.

In the Box

1x MX-1010-H2XC or MX-1616-H2XC
1x Handheld IR Remote
10/16x IR emitters
10/16x IR Broadband Receiver (30KHz to 50KHz)
1x IR Receiver (38Khz)
10/16x 3-pin phoenix to stereo RCA sockets
1x AC Power Cord with US Plug
1x AC Power Cord with UK Plug
1x AC Power Cord with EU Plug
1x USB to UART Serial Cable
2x 4U Rack Ears and Screws
1x Quickstart Guide (This Document)

Additional Information

Visit the product page on
wyrestorm.com
documentation, control drivers, and configuration software.
Satellite Box
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
1 of 4
Quickstart Guide
to download additional
RXF-300-4K
KEY
HDMI
HDBaseT
Digital Audio
Analog Audio
Duplex OM3 Fiber
Games Console
support@wyrestorm.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-1010-H2XC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wyrestorm MX-1010-H2XC

  • Page 1 Custom 4K HDR Video Matrix with Audio Matrix & DSP MX-1010-H2XC | MX-1616-H2XC Quickstart Guide WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features before beginning the installation process. RXV-70-4K IMPORTANT! Installation Requirements For use when content too high in bandwidth for HDBaseT is required, such as •...
  • Page 2 Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its entirety before running or terminating any wires to ensure proper operation and to avoid damaging the equipment.
  • Page 3 Open a web browser and enter the IP Address of the matrix. Default: 192.168.11.143 | Password: admin Note: The installer password and general password are the same by default. WyreStorm recommends changing the password for installer login to avoid any unwanted changes being made to the matrix configuration. Troubleshooting...
  • Page 4 Safety and Emission CE | FCC | RoHS Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice. Warranty Information WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase.

This manual is also suitable for:

Mx-1616-h2xc
