Summary of Contents for Wyrestorm MX-1007-HYB

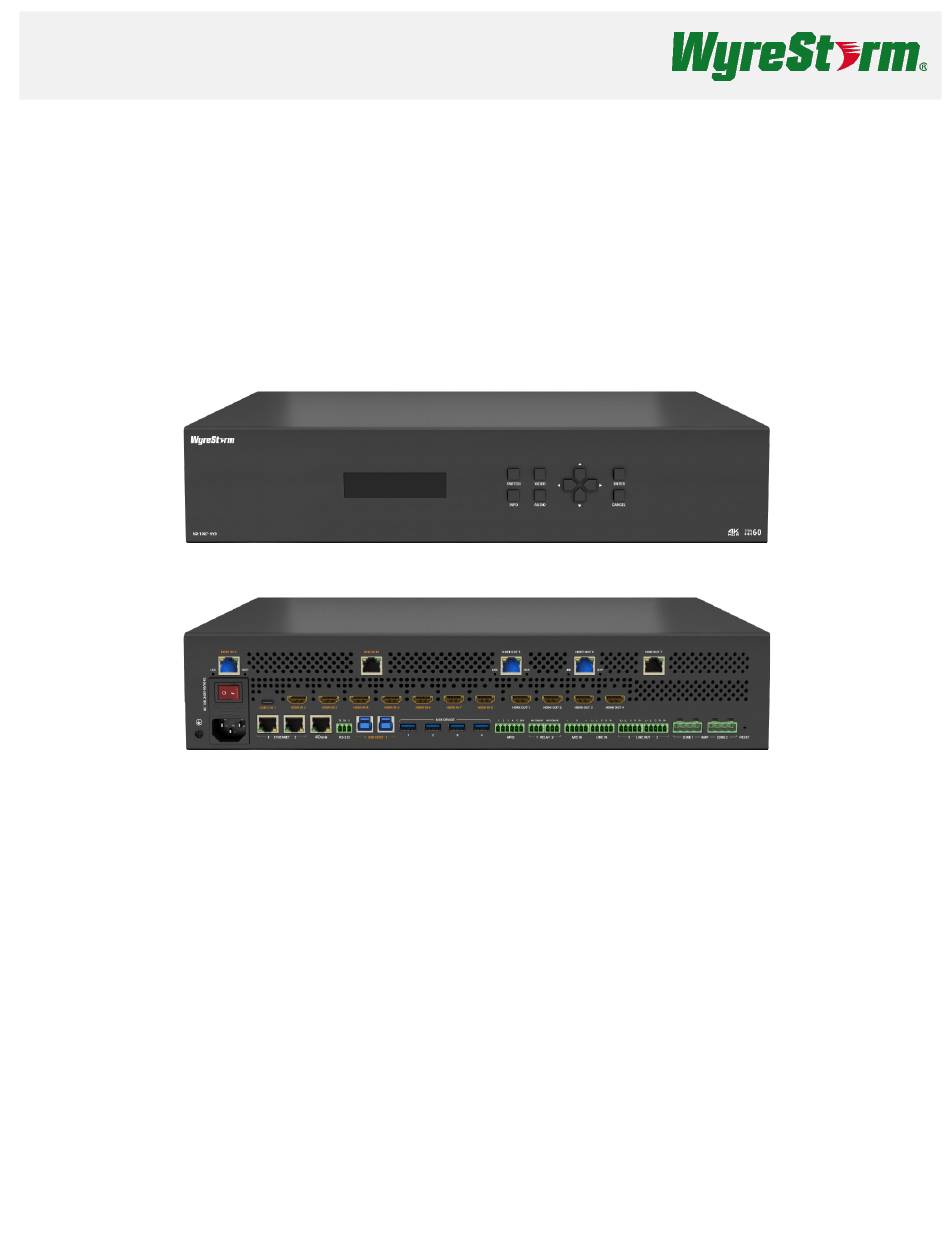

  • Page 1 MX-1007-HYB User Manual v1.0...
  • Page 2: Table Of Contents

    Panel Description ................................7 Installation ..................................10 Wiring Diagram ................................10 Pinout Introduction ..............................12 Control of the Matrix ..............................13 Copyright © 2023 WyreStorm Pro AV Corportation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 2 of 35 Support@WyreStorm.com MX-1007-HYB User Manual | 231207...
  • Page 3: Overview

    It also supports to convert mixer audio to USB and feed to host PC for conferencing applications. The matrix is also integration friendly with flexible control options, including front panel buttons, RS-232 and LAN control (Telnet & Web UI). And it supports Wyrestorm Sigma cloud connection and control for reboot, firmware upgrade and other features.
  • Page 4: Package Contents

    OUT, 2 x USB HOST, 4 x USB DEVICE, 2 x ETHERNET, 1 x RS-232, 2 x RELAY, 1 x GPIO, 1 x Dante (RJ45 port), 1 x AC 100~240V 50/60Hz, 1 x RESET Input/Output Video Type 4K@60Hz 4:4:4 8bit, HDCP 2.3 Copyright © 2023 WyreStorm Pro AV Corportation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 4 of 35 Support@WyreStorm.com...
  • Page 5: Transmission Distance

    Straight-through category cable wired to T568B standard is recommended. Ÿ For max HDMI 2.0 resolution recommended cable is: Cat 6a U/FTP or F/FTP. Ÿ Copyright © 2023 WyreStorm Pro AV Corportation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 5 of 35 Support@WyreStorm.com...
  • Page 6 70m/230ft (with Patches) 4K@60Hz 4:2:0 36bpp 4K@30Hz 1080P@60Hz Cat 5e/6 30m/100ft (with 4K@60Hz 4:4:4 24bpp Patches) 4K@60Hz 4:2:2 36bpp Copyright © 2023 WyreStorm Pro AV Corportation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 6 of 35 Support@WyreStorm.com MX-1007-HYB User Manual | 231207...
  • Page 7: Panel Description

    Press the button, the LCD indicator window will display the device’s information, including IP address, Fan speed, Mac address, firmware version and temperature. AUDIO Button Press the button, enter the volume adjustment mode. Copyright © 2023 WyreStorm Pro AV Corportation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 7 of 35 Support@WyreStorm.com...
  • Page 8 ETHERNET 1&2 Connect to the network, for web UI control, or telnet control. Dante RJ 45 port. Connect to the network for Dante audio connection. Copyright © 2023 WyreStorm Pro AV Corportation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 8 of 35 Support@WyreStorm.com...
  • Page 9 More than 5s but less than 15s: Reset the IP mode of the device to DHCP. Ÿ More than 15s: Reset the device to factory defaults. Ÿ Copyright © 2023 WyreStorm Pro AV Corportation | Technical Support: 844.280.WYRE (9973) WyreStorm.com 9 of 35 Support@WyreStorm.com...
  • Page 10: Installation

    Position and install the mounting brackets provided to the front panel. Install the matrix in the mounting rack by using the mounting screws to affix the matrix to the rack. Wiring Diagram Wiring 1: Copyright © 2023 WyreStorm Pro AV Corportation | 10 of Technical Support: 844.280.WYRE (9973) WyreStorm.com Support@WyreStorm.com...
  • Page 11 Wiring 2: Wiring 3: Copyright © 2023 WyreStorm Pro AV Corportation | 11 of Technical Support: 844.280.WYRE (9973) WyreStorm.com Support@WyreStorm.com MX-1007-HYB User Manual | 231207...
  • Page 12: Pinout Introduction

    2 x 30watts 8Ω speakers, or 2 x 50watts 4Ω speakers. Connecting with 4 x 15watts 8Ω speakers, or 4 x 25watts 4Ω speakers R- R+ R- R+ Copyright © 2023 WyreStorm Pro AV Corportation | 12 of Technical Support: 844.280.WYRE (9973) WyreStorm.com Support@WyreStorm.com...
  • Page 13: Control Of The Matrix

    Adjust volume of audio outputs (Audio out selected in Local mixer 1 and Local mixer 2 separately) Press “AUDIO” to enter volume adjustment mode. Press the Left ( ) or Right ( ) button to select audio output channel. Copyright © 2023 WyreStorm Pro AV Corportation | 13 of Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 14: Command Control

    Connect a control PC to the LAN port of the device. Before you intend to control the device through telnet API, you shall establish connection between this device and your computer. The form of the command for telnet connection is below: Copyright © 2023 WyreStorm Pro AV Corportation | 14 of Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 15 In this mode, only the submenus in Matrix Control tab can be set. If advanced setting is required, click “Admin” and enter the password to login as Admin. Ÿ Copyright © 2023 WyreStorm Pro AV Corportation | 15 of Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 16 The operations are same with logging through the home page. The main page includes three tabs: Matrix Control, General Setting and Advanced Setting. Copyright © 2023 WyreStorm Pro AV Corportation | 16 of Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 17 Copyright © 2023 WyreStorm Pro AV Corportation | 17 of Technical Support: 844.280.WYRE (9973) WyreStorm.com Support@WyreStorm.com MX-1007-HYB User Manual | 231207...
  • Page 18 Ÿ By default, Video Input 1 routes to Output 1…Video Input 6 routes to Output 6, Video Input 7 routes to Output 7. Audio Routing Copyright © 2023 WyreStorm Pro AV Corportation | 18 of Technical Support: 844.280.WYRE (9973) WyreStorm.com Support@WyreStorm.com...
  • Page 19 When select the USB Host Audio, it will be mixed to output from the output channels users selected. Video De-embed (multiple-choice): Select video de-embed audio as input source from the drop-down menu. Ø Copyright © 2023 WyreStorm Pro AV Corportation | 19 of Technical Support: 844.280.WYRE (9973) WyreStorm.com Support@WyreStorm.com...
  • Page 20 For example, if ducking trigger is set as -30dB, the ducking is triggered when the ducking master’s volume Ø reaches -30dB. Default setting is -35dB. Copyright © 2023 WyreStorm Pro AV Corportation | 20 of Technical Support: 844.280.WYRE (9973) WyreStorm.com Support@WyreStorm.com...
  • Page 21 Dante 3-4. The audio outputs(s) will output the audio from the selected audio source. All selected audio outputs will output the same audio. Other settings are same with selecting Local Audio mixer1. When select Remote USB mixer: Copyright © 2023 WyreStorm Pro AV Corportation | 21 of Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 22 Active USB Host Selection: Select the USB Host from the drop-menu. The default setting is USB-B Port1. For example, when select USB-B Port1, all USB devices the matrix connected and the remote receivers connected are connected with USB-B Port 1. Copyright © 2023 WyreStorm Pro AV Corportation | 22 of Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 23 Copyright © 2023 WyreStorm Pro AV Corportation | 23 of Technical Support: 844.280.WYRE (9973) WyreStorm.com Support@WyreStorm.com MX-1007-HYB User Manual | 231207...
  • Page 24 Display On/Off: Input the corresponding CEC command, then click “Save” to save it. Ø Note: If users want to change CEC commands, please refer to the CEC specification document. Copyright © 2023 WyreStorm Pro AV Corportation | 24 of Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 25 Save: Save the selection settings to the matrix. Ÿ Load: Load the saved preset file from the matrix. Ÿ General Setting Copyright © 2023 WyreStorm Pro AV Corportation | 25 of Technical Support: 844.280.WYRE (9973) WyreStorm.com Support@WyreStorm.com MX-1007-HYB User Manual | 231207...
  • Page 26 A/V Configuration Copyright © 2023 WyreStorm Pro AV Corportation | 26 of Technical Support: 844.280.WYRE (9973) WyreStorm.com Support@WyreStorm.com MX-1007-HYB User Manual | 231207...
  • Page 27 By default, Output HDCP Support is “Auto”, follow the input HDCP. For example, input HDCP is HDCP 2.2, output HDCP is also HDCP 2.2. When set it to HDCP v1.X, it means the HDCP of the output is set to HDCP 1.4. Copyright © 2023 WyreStorm Pro AV Corportation | 27 of Technical Support: 844.280.WYRE (9973)
  • Page 28 Both the default setting of Mic1 and Mic 2 Phantom Power Control are “Disabled”. Mic1/2 Gain Control: Set gain control of the mic in1/2 from the drop-down menu, the default setting is 0dB. Ÿ Amplifier Settings Copyright © 2023 WyreStorm Pro AV Corportation | 28 of Technical Support: 844.280.WYRE (9973) WyreStorm.com Support@WyreStorm.com...
  • Page 29 “SEND” button. Note: The entered commands will only be sent to remote transmitter or receiver connected 3rd-party device. It needs to be supported by the 3rd-party device. Copyright © 2023 WyreStorm Pro AV Corportation | 29 of Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 30 Pull-up resistor. While set Pull-up Resistor to “Disconnected”, the pull-up voltage is determined by the external connected pull-up resistor. When GPIO state is set to “Low”, it will output low level. Apply: Click to confirm the settings. Ÿ Copyright © 2023 WyreStorm Pro AV Corportation | 30 of Technical Support: 844.280.WYRE (9973) WyreStorm.com Support@WyreStorm.com...
  • Page 31 Advanced Setting Information This section shows the device’s information, including Model, Mac address, IP address and firmware version. Fan and Temperature Copyright © 2023 WyreStorm Pro AV Corportation | 31 of Technical Support: 844.280.WYRE (9973) WyreStorm.com Support@WyreStorm.com MX-1007-HYB User Manual | 231207...
  • Page 32 Telnet over TLS (Disable/Enable): Set TLS (Transport Layer Security) to enable or disable, when it is set to enable, Ÿ users can change the TelnetS login password. The default setting is “Disable”. The default user name and password for logging in the Telnet is “admin” and “wyrestorm”. Copyright © 2023 WyreStorm Pro AV Corportation | 32 of Technical Support: 844.280.WYRE (9973)
  • Page 33 Apply: Click to perform the change. Ÿ Note: Password must be 4 to 16 characters in length (alphanumeric only). FW Update This section allows users to update firmware. Copyright © 2023 WyreStorm Pro AV Corportation | 33 of Technical Support: 844.280.WYRE (9973) WyreStorm.com Support@WyreStorm.com...
  • Page 34 This section allows users to input and send API commands to the matrix. The return value will be display in “Log” part. Apply: Click “Apply” to send the input command to the matrix. For example: Copyright © 2023 WyreStorm Pro AV Corportation | 34 of Technical Support: 844.280.WYRE (9973) WyreStorm.com...
  • Page 35 This section shows the operation log and commands return. Export Log: Click to export the log file to local PC. Copyright © 2023 WyreStorm Pro AV Corportation | 35 of Technical Support: 844.280.WYRE (9973) WyreStorm.com Support@WyreStorm.com MX-1007-HYB User Manual | 231207...
