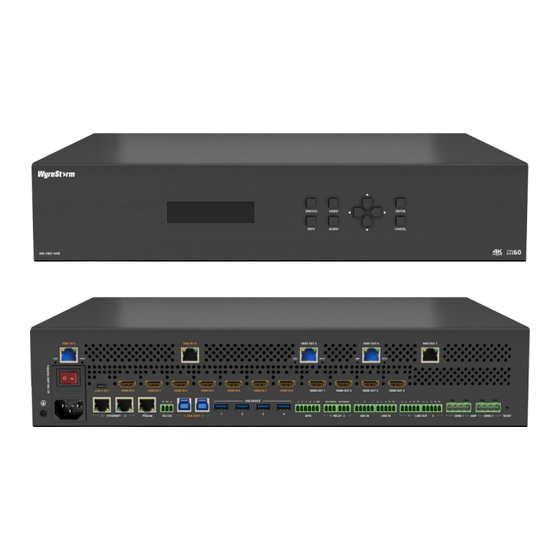

10x7 Multi-Input Hybrid Matrix
MX-1007-HYB
WyreStorm recommends reading through this document in its entirety to
become familiar with the product's features prior to starting the installation
process. For other language versions of this document, check wyrestorm.com.
Key Features
• Multi-format video connections include USB-C, HDMI, HDBaseT and NetworkHD (500 Series)
• NetworkHD input and output supports spill-over applications
• Fast up to 1 second switching across all video outputs
• 480p to 2160p scaling built-in all video outputs
• USB-C input supports 4K60 video, USB3.0&USB2.0, 1G network, and PD3.0 USB host charging up to 60watts
• All HDBaseT outputs support HDBaseT 3.0 specification, which includes uncompressed A/V, RS-232, USB2.0 and
• PoE+ PSE transmission up to 330ft/100m
• NetworkHD output supports a 4K60 scaler, and seamless switching of A/V, USB2.0 and RS-232 control signals up
• to 330ft/100m, or longer via 1G network switch
• Supports USB host switching and device extension
• Switching USB hosts include 1x USB-C port, 2x local USB3.0 USB-B ports, 1x NHD input, 1x HDBT input related USB connection
• USB devices include 4x local USB3.0 USB-A ports, 1x NHD output, 2x HDBT outputs related USB connections.
• Supports 2x MIC inputs, 1x LINE input, Dante 4x4 optional and 2x 5-pin balanced audio outputs
• 4-channel 4/8ohm speaker outputs (2x channel mode = 2x 50watts with 4ohm speakers, 4x channel mode = 4x 25watts with
4ohm speakers) *For 8ohm speaker, the output power will be halved
• GPIO and Relay support for automation of screens, occupancy etc;.
Port Descriptions
18 18
3 3
2 2
1 1
6 6
Number
Number
Port Name
Port Name
1 1
Grounding Screw
Grounding Screw
2 2
Power Socket and Fuse
Power Socket and Fuse
3 3
USB-C Input
USB-C Input
4 4
HDMI Inputs
HDMI Inputs
5 5
HDMI Outputs
HDMI Outputs
6 6
Ethernet Ports
Ethernet Ports
7 7
Dante Output
Dante Output
8 8
RS-232 Control
RS-232 Control
9 9
USB Host
USB Host
10
10
USB Device
USB Device
11
11
GPIO
GPIO
Copyright © 2024 WyreStorm ProAV Corporation |
MX-1007-HYB Quickstart Guide | 240116
19 19
4 4
7 7
8 8
9 9
10 10
Description
Description
Shields the matrix from EMI/RFI and static
discharge
AC 100-240V socket and glass tube fuse
Supports 4K60 video, USB 3.0 host and
60watt charging
HDMI 2.0, HDCP 2.3, auto switching, first-
in last-out,
Full scaler
TCP/IP control and cloud monitoring
Dante Ultimo 4x4
RS-232 switcher control via control
system
USB 3.0 supports host switching
USB 3.0 connect cameras, mice,
keyboards, Flash memory. Which ever host
is selected will access these ports
Occupancy sensor
wyrestorm.com
20 20
20 20
5 5
11 11
12 12
13 13
Number
Number
Port Name
Port Name
12
12
Relays
Relays
13
13
Microphone Input
Microphone Input
14
14
Line Input
Line Input
15
15
Line Out
Line Out
16
16
Amplifier Out
Amplifier Out
17
17
IP and Factory Reset
18
18
HDBaseT Input
HDBaseT Input
19
19
NetworkHD Input
NetworkHD Input
20
20
HDBaseT Output
HDBaseT Output
21
21
NetworkHD Output
NetworkHD Output
INT: +44 (0) 1793 230 343 | US: 844.280.WYRE (9973)
1 of 4
Quickstart Guide
DOCUMENTATION
To access all
documentation
including full manuals,
scan the QR code.
21 21
14 14
15 15
16 16
Description
Description
x2 relay, shades, screens etc
Phantom power, noise filtering, gain
adjustment
Gain adjustment, noise filtering, true
differential signal
Volume control
Full audio DSP, 4x channel (25w per),
4/8ohm
Factory defaults matrix settings
Uncompressed input up to 330ft/100m
NHD-500-TX
Uncompressed signal up to 330ft/100m
Note: Cat6a is required for 100m distance
NHD-500-RX
