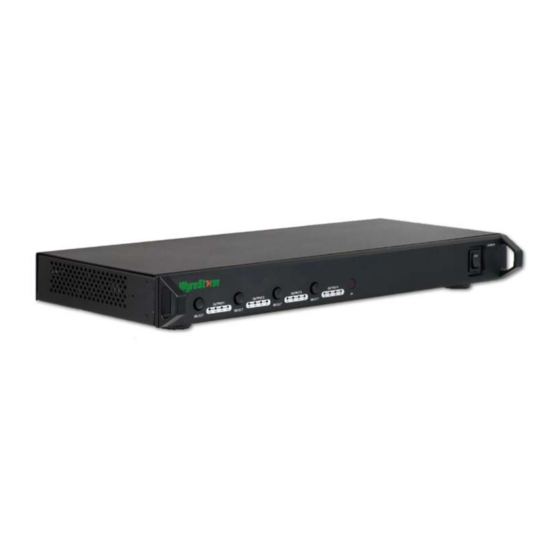

4 input / 4 output single-cable hd matrix with two-way ir control
Hide thumbs Also See for MX0404-PP:
Table of Contents

Advertisement

Quick Links

Wyrestorm HDBaseT Lite HD Matrix
Part Number
MX0404-PP
4 Input / 4 Output single-cable HD Matrix with two-way IR control
Instruction Manual
Thank you for choosing this Wyrestorm product.
Please read these instructions carefully before installing to avoid complications later.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX0404-PP and is the answer not in the manual?

Questions and answers

Related Manuals for Wyrestorm MX0404-PP

Summary of Contents for Wyrestorm MX0404-PP

  • Page 1 Wyrestorm HDBaseT Lite HD Matrix Part Number MX0404-PP 4 Input / 4 Output single-cable HD Matrix with two-way IR control Instruction Manual Thank you for choosing this Wyrestorm product. Please read these instructions carefully before installing to avoid complications later.

  • Page 2: Table Of Contents

    LAN Control – NET CTL iv. EDID DIP Switch settings This MX0404-PP HDBaseT Lite Matrix model allows any connected HDMI inputs to be distributed independently and Advanced Operation simultaneously over distances of up to 70m (230ft) to any of the 4...

  • Page 3: Features

    • Additional infrared extension port for longer IR connections * The inclusion of duplicate HDMI ports essentially • Pack comes complete with 1 x MX0404-PP 4x4 matrix unit doubles the number of outputs (though slaved to the with 19”, IR receivers, emitters and a remote control handset.

  • Page 4: Package Contents

    • 4 x IR TX Emitters (small/round for Input source) of instruction manual* • 4 x IR RX Receivers (larger for Output display) *downloadable versions can be found at www.Wyrestorm.com • 1 x MX0404-PP remote control incl. battery • Matrix mounting brackets (size/type: CR2025 3V) Specifications...

  • Page 5: Front Panel Description

    Cross UTP cable is used to connect to a computer via a router. Connection will fail if the incorrect cable is used. 03 04 06 07 06 07 07 06 07 06 Technical Support: support@wyrestorm.com US: +866 677 0053 EU: +44 (0) 1793 230 343...

  • Page 6: Typical Application

    IR RX receiver and IR TX emitter placed display 5V mains or discretely on the dispay with a clear line of sight UTP Cat5e/6/7 (optional) USB power to the remote handset being used adapter Technical Support: support@wyrestorm.com US: +866 677 0053 EU: +44 (0) 1793 230 343...
  • Page 7 Switch on the power to your input sources, displays, and any small sensor. display receivers used. Finally, power up the MATRIX. Your MX0404-PP should now be fully connected and ready for Connect a good quality, well terminated Cat 5e/6/7 cable use.

  • Page 8: Basic Operation

    IR Call-back of Matrix and Source Devices Output port number The MX0404-PP is not only a switcher and extender of multiple HDMI signals to multiple HDMI receivers located remotely, it also passes IR control signals through the IR call-back system to...

  • Page 9: Two-Way Ir Call-Back Between Matrix, Sources And Displays From Multiple Locations

    IR RX Receiver respective UTP OUTPUT ports (Output1-RX1, Output2 -RX2) with the IR signal converted to HDMI and carried IR TX Emitter along the single Cat5e/6/7 cable. Technical Support: support@wyrestorm.com US: +866 677 0053 EU: +44 (0) 1793 230 343...

  • Page 10: Advanced Operation

    Control of the matrix is possible through RS232 using third party receive an infrared signal from the remote handset used to control systems or the dedicated Wyrestorm COM CTL software control inputs. included with your purchase (also downloadable from www.
  • Page 11 IR Matrix - allows IR TX HEX commands to be input manually into the matrix by input/output port. Technical Support: support@wyrestorm.com US: +866 677 0053 EU: +44 (0) 1793 230 343...
  • Page 12 Select the connection settings such as IP address and MAC address of the MX0404-PP, as well as its name if you decide to change the name of your matrix (see Device Name section below). button to check current settings attached to the IR port.
  • Page 13 Making sure IR HEX codes in flash. have been correctly input into the Matrix, select the IR TX ports allocated to specific inouts/outputs to control devices remotely over the network. Technical Support: support@wyrestorm.com US: +866 677 0053 EU: +44 (0) 1793 230 343...

  • Page 14: Edid Dip Switch Settings

    When set to this DIP position the matrix will use (Blu-ray). embedded 1080p video with 7.1ch Audio. After setting the DIP switch, reconnect and turn on for EDID settings to take effect. Technical Support: support@wyrestorm.com US: +866 677 0053 EU: +44 (0) 1793 230 343...
  • Page 15 Support 1080P7.1 Audio Video: 1080i Video: 1080P Video: 1080P Audio: stereo Audio: 7.1 Audio: stereo Fix EDID DIP: 001 DIP: 001 1080i-2CH Copy AVR’s Copy Tv1’s EDID EDID Technical Support: support@wyrestorm.com US: +866 677 0053 EU: +44 (0) 1793 230 343...

  • Page 16: Troubleshooting

    Note: If you are approaching the limits of the transmission are confident solutions can be found by working through capabilities, you will need to use a Wyrestorm Extender set the following troubleshooting checklist before seeking for the signal to transmit effectively.
  • Page 17 Are you using Wyrestorm emitters and receivers? The use correctly assigned within the system set up. of third party products/magic eyes may not be compatible.

  • Page 18: Faqs

    HD content. Unlike competing products, have multiple identical sources yet the IR would be routed Wyrestorm matrix switches are legal and comply with HDCP only to the applicable source. regulations. They do this by assigning a “key” to every display connected to the switch.

  • Page 19: Maintenance

    (HDMI Control Protocol) to the outgoing signal, this can sometimes have an effect on the HDMI signal. Limited warranty period: All Wyrestorm products are covered by a 2 year PARTS and LABOUR warranty. During this period there will be no charge for 14. Maintenance unit repair, replacement of unit components or replacement of product if necessary.
