Wyrestorm MX-1010-HDBT-H2X Quick Start Manual

4k hdr hdbaset matrix switcher featuring 5play including 16x48 audio matrix & dsp (4k to 70m/230ft - 1080p to 100m/328ft)

Advertisement

Quick Links

4K HDR HDBaseT™ Matrix Switcher featuring 5Play™ including 16x48
Audio Matrix & DSP (4K to 70m/230ft - 1080p to 100m/328ft)
MX-1010-HDBT-H2X | MX-1616-HDBT-H2X
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Install the latest firmware (if available) to ensure that all features described
in this document are available during and after installation.
• Read through the Wiring and Connections section for important wiring
guidelines before creating or choosing premade cables.
Recommended Products
To take full advantage of the features of this matrix, WyreStorm recommends
the following products be used within this product.
• RX-70-4K-SCL
Scaling receiver that allows for 4K and 2K screens to be used while
maintaining output of 4K.
• RX-70-4K-ARC
HDCP 2.2 receiver with audio in to send audio from built in apps back to
the matrix.
• RX-70-4K
Standard 5-Play Receiver to be used in most cases

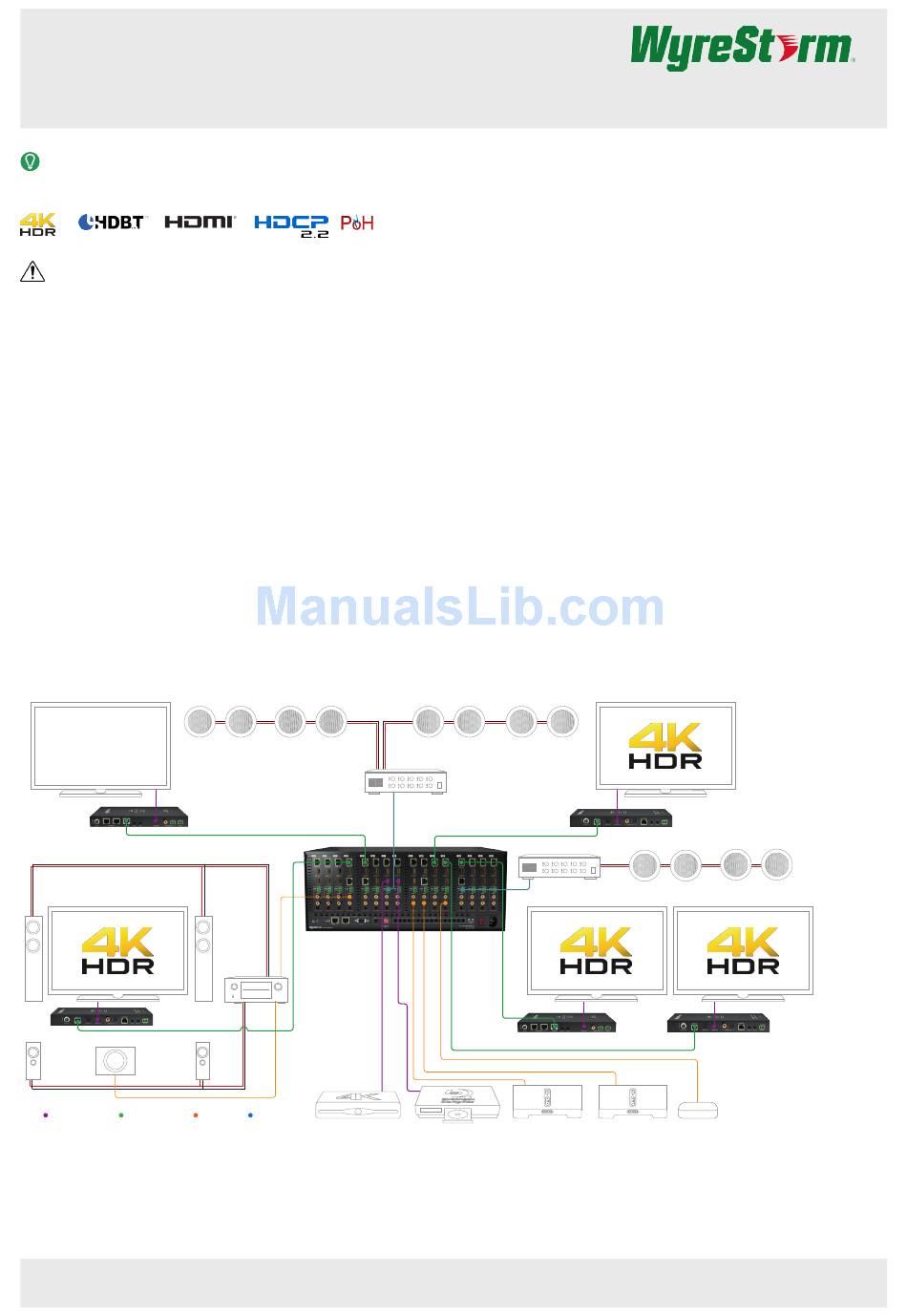

Basic Wiring Diagram
RX-70-4K-ARC
Key
HDMI/Digital Video
HDBaseT/Ethernet
Copyright © 2017 WyreStorm Technologies | wyrestorm.com
MX-xxxx-HDBT-H2X Quickstart Guide | 170428
RX-70-4K-SCL
MX-1616-HDBT-H2X
AVR
Digital Audio
Analog Audio
UHD Sattelite Box
In the Box
1x MX-1616-HDBT-H2X or 1x MX-1010-HDBT-H2X HDBaseT Matrix
Switcher
1x Handheld IR Remote
10/16 x IR emitters
10/16 x IR Broadband Receiver (30KHz to 50KHz)
1x IR Receiver (38Khz)
10/16x 3-pin phoenix to stereo RCA sockets
1x AC Power Cord with US Plug
1x AC Power Cord with UK Plug
1x AC Power Cord with EU Plug
1x USB to UART Serial Cable
2x 4u rack ears and screws
1x Quickstart Guide (This Document)
Additional Information
Visit the product page on WyreStorm.com to download additional
documentation, control drivers, and configuration software.
Multizone Amplifier
Multizone Amplifier
RX-70-4K-SCL
4K UHD Blu-ray Player
Sonos Zone Player
1 of 4
Quickstart Guide
RX-70-4K-ARC
RX-70-4K-ARC
Sonos Zone Player
Media Player
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the MX-1010-HDBT-H2X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wyrestorm MX-1010-HDBT-H2X

  • Page 1 4K HDR HDBaseT™ Matrix Switcher featuring 5Play™ including 16x48 Audio Matrix & DSP (4K to 70m/230ft - 1080p to 100m/328ft) Quickstart Guide MX-1010-HDBT-H2X | MX-1616-HDBT-H2X WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. In the Box IMPORTANT! Installation Requirements 1x MX-1616-HDBT-H2X or 1x MX-1010-HDBT-H2X HDBaseT Matrix • Visit the product page to download the latest firmware, document version, Switcher additional documentation, and configuration tools. 1x Handheld IR Remote • Install the latest firmware (if available) to ensure that all features described 10/16 x IR emitters in this document are available during and after installation.
  • Page 2 Pin 1 Pin 1: White/Orange Pin 5: White/Blue results. Pin 8 Pin 2: Orange Pin 6: Green • WyreStorm recommends using high quality HDMI cables such as Pin 3: White/Green Pin 7: White/Brown WyreStorm Express to ensure the highest content performance available. Pin 4: Blue Pin 8: Brown • The type of category cable and length used can restrict the available video resolution. While Cat5e can be used, WyreStorm recommends using Cat6 Wire colors shown follow EIA/TIA-568B standard.
  • Page 3: Troubleshooting

    No or Intermittent 3 party Device Control • Verify that power is being supplied to all devices in the system and that they • Verify that the IR cable(s) is properly terminated. are powered on. See IR TX/RX Wiring. • Verify that all source and HDBaseT connections are not loose and are • Verify that the IR emitter is located near the IR receiver on the device. functioning properly. • Verify that the HDBaseT cable is properly terminated per the HDMI/ Troubleshooting Tips: HDBaseT Wiring section. • WyreStorm recommends using a cable tester or connecting the cable to • Verify that the matrix, receiving device, and display support the output other devices to verify functionality. resolution of the source. • Use a flashlight to locate the IR receiver behind any tinted panels on the • Refer to Video Resolutions in the Specifications table for the max distance device being control based on resolution. • If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated. Copyright © 2017 WyreStorm Technologies | wyrestorm.com UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973) 3 of 4 MX-xxxx-HDBT-H2X Quickstart Guide | 170428...
  • Page 4: Specifications

    1x IR Ext - 3.5mm (1/8in) TRS Stereo | Matrix Control 10/16x IR RX - 3.5mm (1/8in) TRS Stereo | 10/16x IR TX - 3.5mm (1/8in) TS Mono | Transmits over HDBaseT RS-232 Matrix Control | Bidirectional over HDBaseT | Firmware Updates Audio Return Channel (ARC) Returns audio from displays built-in applications via ARC HDMI Input over HDBaseT Power Power Supply 100~240V AC 50/60Hz 48V 15.4W (each HDBT output) Based on 16 (or 10) HDMI in/HDBT out cards Max Power Consumption MX-1010-HDBT-H2X: 200W | MX-1616-HDBT-H2X: 290W Environmental Operating Temperature 32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%, non-condensing Storage Temperature -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing Maximum BTU MX-1010-HDBT-H2X: 682 BTU/hr | MX-1616-HDBT-H2X: 989 BTU/hr Dimensions and Weight MX-1010-HDBT-H2X MX-1616-HDBT-H2X Rack Units/Wall Box Height With | Without Feet 183.1mm/7.22in | 176mm/6.93in...

This manual is also suitable for:

Mx-1616-hdbt-h2x
