Mounting location (general)
To ensure reliable measurements, it is important to choose a
correct mounting location. For optimal performance, observe the
following guidelines:

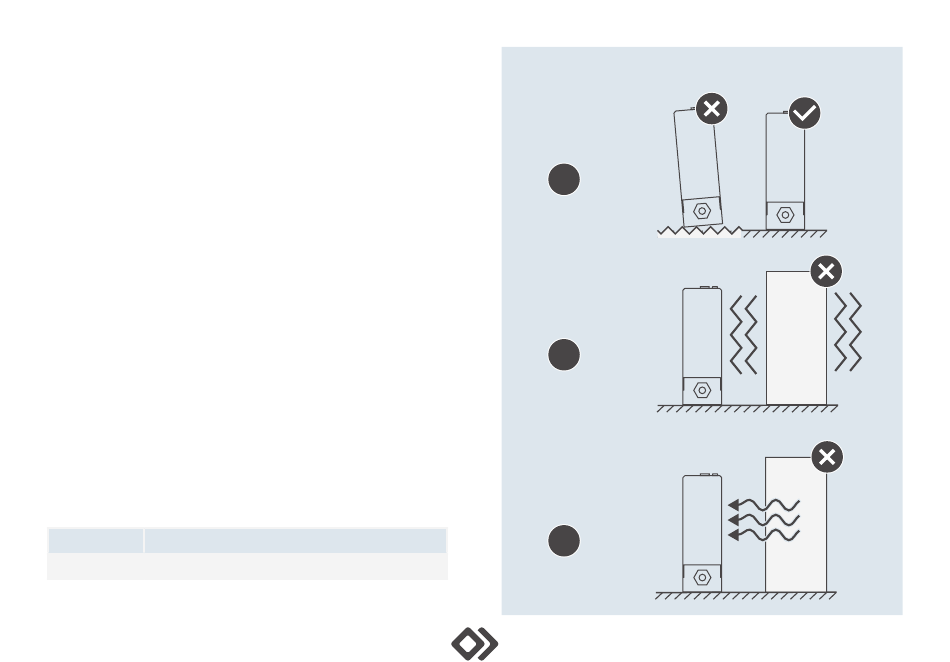

▶ Install the product on a flat, rigid, and clean surface [1].
▶ Avoid installation close to mechanical vibrations [2].
▶ Avoid installation close to magnetic field sources.
▶ Avoid installation close to heat sources [3].

Pressure rating

▶ If applicable: install the process connections according to the
manufacturer's instructions.
▶ Check the maximum permissible system pressure in the
technical specifications table in this guide.
▶ Make sure that the pressure rating of the adapter, pipes, and
hoses, as well as that of the product, is equal to or greater than
the maximum applied system pressure.
Mounting (in-line)
▶ Mount the product to a rigid construction using the mounting
holes at the bottom of the base.
Bolt size M3
Torque [Nm] 0,5
▶ See online available dimensional drawings for further details.
