BRONKHORST IQ+FLOW Quick Start Manual page 8

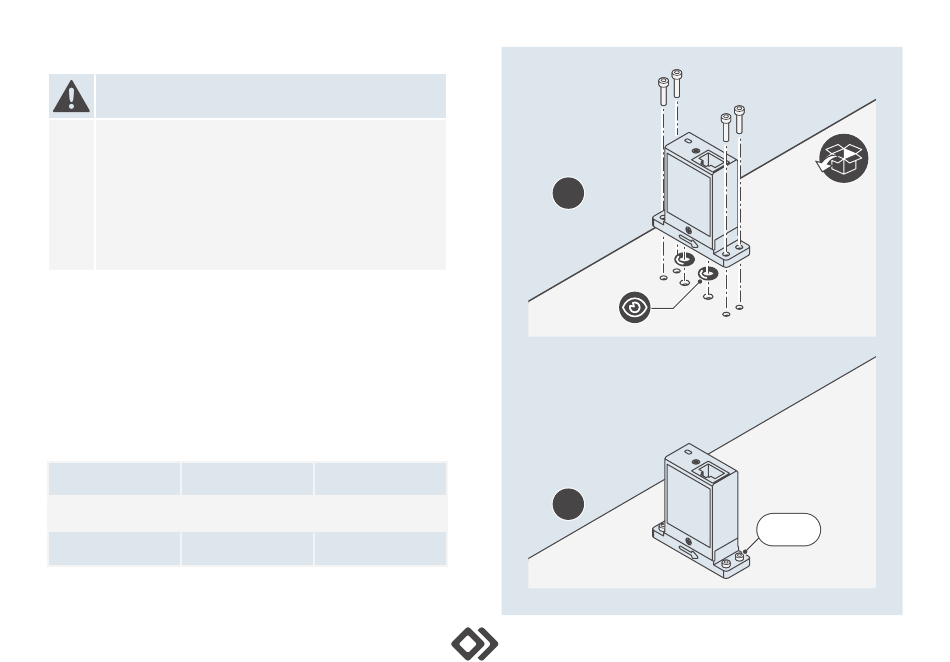

Mounting (downported)
CAUTION
Risk of personal injury due to fluid leakage!
Incorrect mounting can lead to fluid leakage and severe
injury.
▶ Only use supplied seals and bolts for mounting.
▶ Check all connections before and after applying
fluid pressure.
The product is supplied with bolts and pre-mounted seals.
▶ Check the delivery for completeness.
▶ Make sure that the mounting surface is clean and dry.
▶ Carefully remove the protective tape covering the seals.
▶ Before placing the product on the flow plate: check if the 2
seals are correctly placed in the designated recesses.
▶ Tighten the 4 bolts crosswise to the specified torque.
Body material Bolt size
Aluminum M3 x 12
Stainless steel M3 x 10
▶ See online available dimensional drawings for further details.
Torque
0,5 Nm
0,5 Nm
1
2
0,5 Nm
