Quick Installation Guide
Doc nr.: 9.17.052H Date: 10-12-2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mini CORI-FLOW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

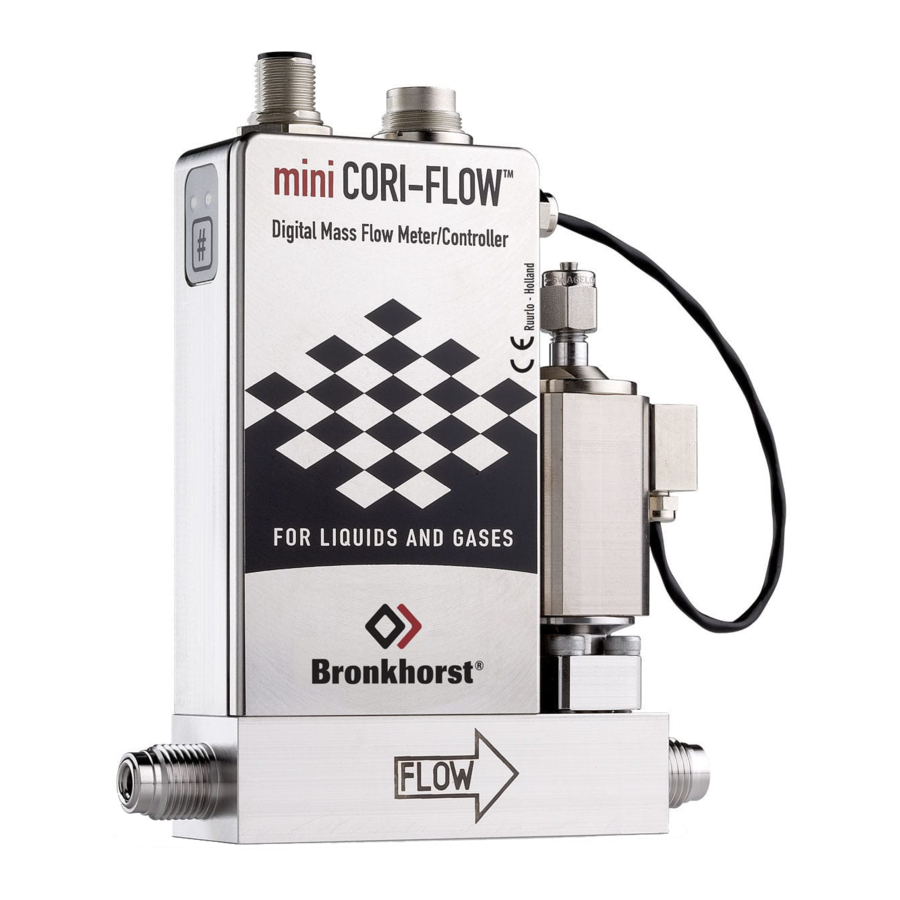

Summary of Contents for BRONKHORST mini CORI-FLOW

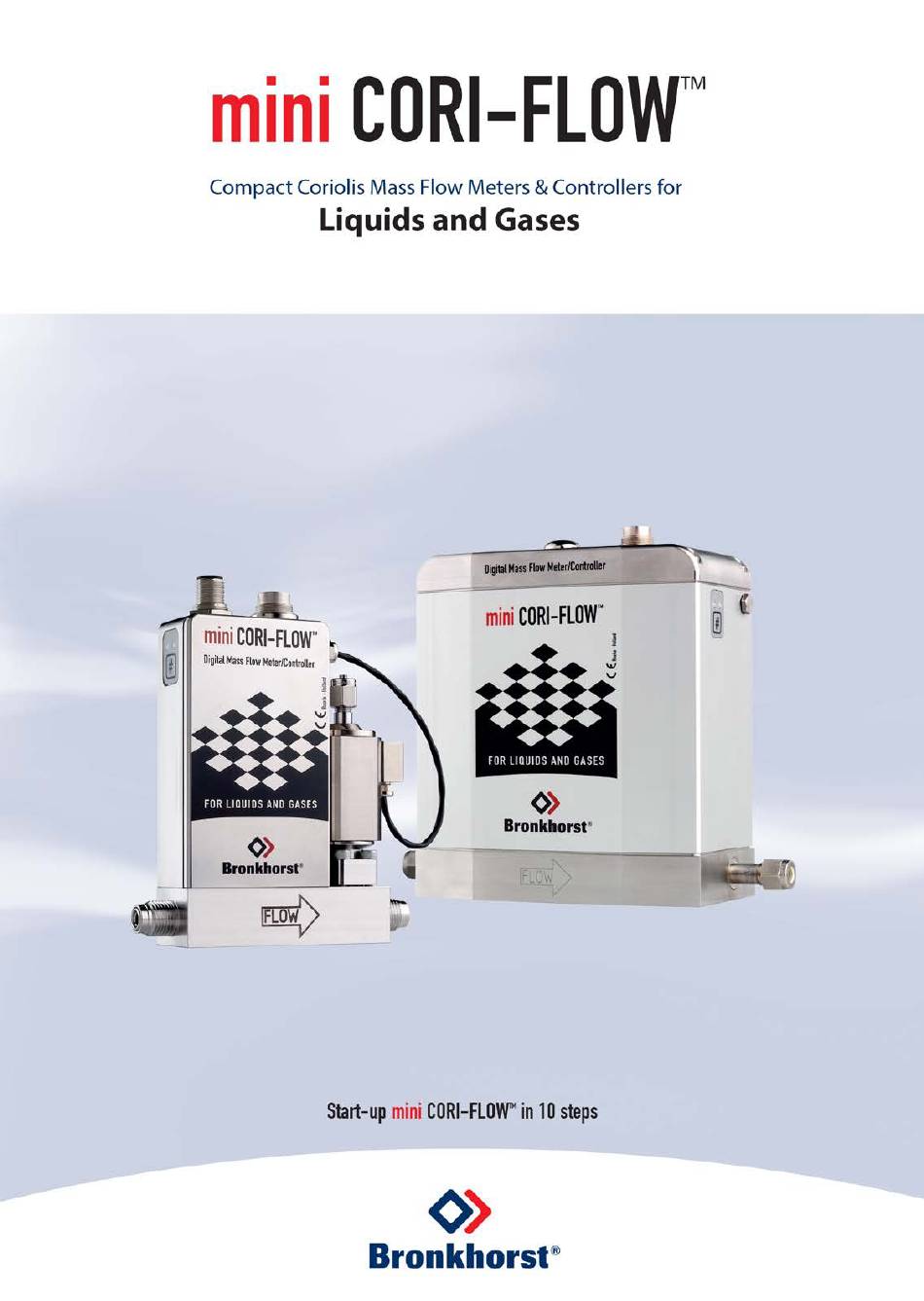

  • Page 1 Quick Installation Guide Doc nr.: 9.17.052H Date: 10-12-2015...
  • Page 2 Notes for temperature considerations After having used the mini CORI-FLOW™ the first time at low temperature tighten the fluid adaptor screws again in order to prevent any leakage! Please note: if you do not tighten, the leaking adaptor / fitting can cause damage! After the first shrinking and tightening of the screws, no further precaution is necessary.
  • Page 3 Base mounting Mount the mini CORI-FLOW™ instrument, with screws in the body, to a rigid, stiff base body or heavy mass on a vibration-free position, such as a wall, heavy rig or stable construction. This is essential to achieve optimal accuracy with the mini CORI-FLOW™...
  • Page 4 (optional) connectors and the impact protection cover must be mounted on the instrument. Analog/Local operation Connect the mini CORI-FLOW™ to the power supply/readout unit with the 8-pin cable at the circular connector. The two examples below have the following electrical properties: Power : +15...+24 Vdc...
  • Page 5 Special control mode for purging In case of a mini CORI-FLOW™ controller give setpoint = 100 % to control the valve or the pump. It is also possible to use special control mode = 8 to fully open the valve or set the pump at max. rpm, using a digital interface. This will bypass the PID-controller and might be usefull when having the mini CORI-FLOW™...
  • Page 6 Measurement check For a controller: send a setpoint to the mini CORI-FLOW™ and check the measured value. Make sure the mini CORI-FLOW™ indicates 0% at zero flow. Your mini CORI-FLOW™ is now ready for operation.
