User's Manual
Dashcam
DrivePro 550
2024/01
v1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DrivePro 550 and is the answer not in the manual?

Questions and answers

Related Manuals for Transcend DrivePro 550

Summary of Contents for Transcend DrivePro 550

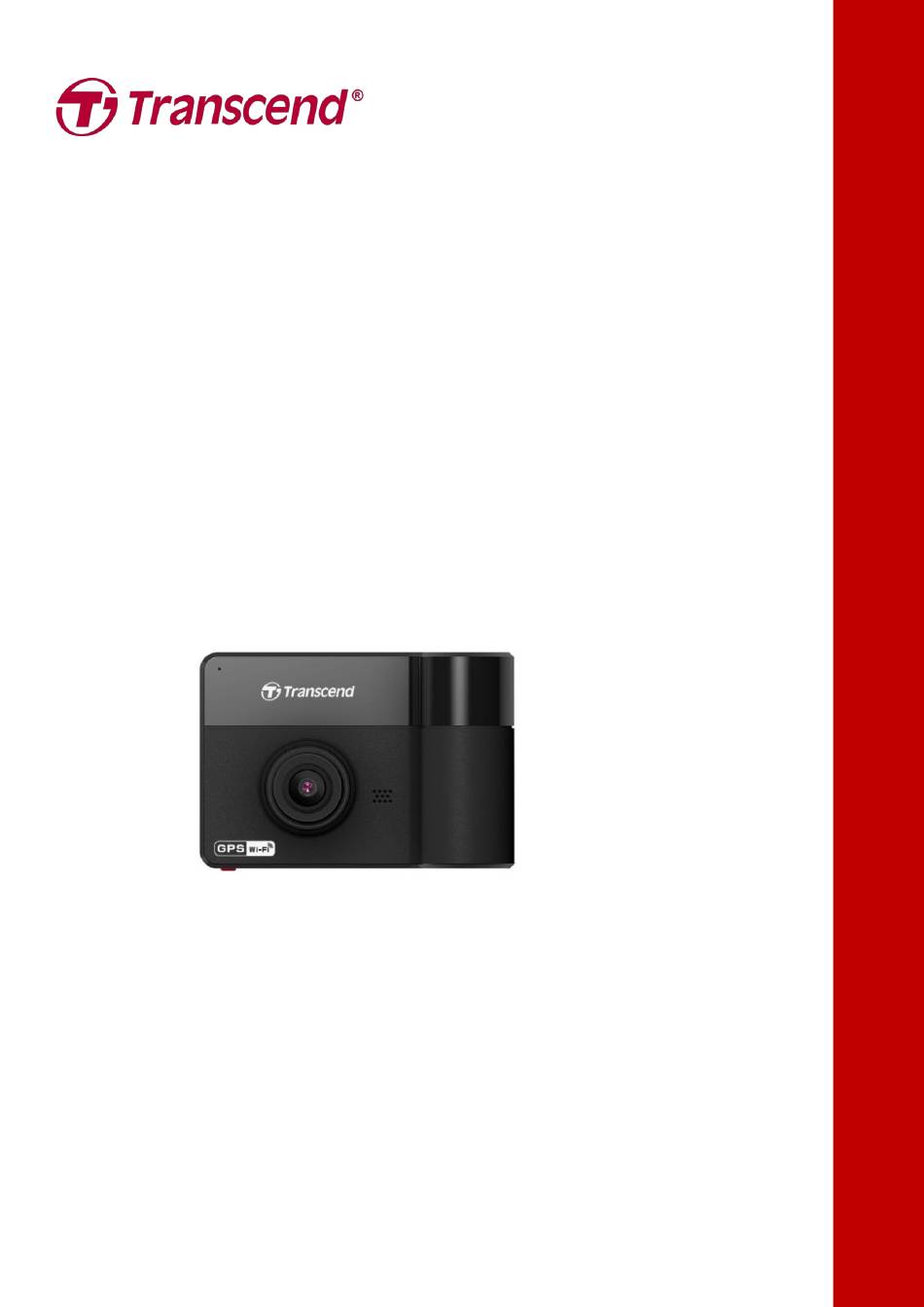

  • Page 1 User’s Manual Dashcam DrivePro 550 2024/01 v1.1...

  • Page 2: Table Of Contents

    Table of Contents Package Contents ................3 Getting Started ................4 2-1 Overview ...........................4 2-2 Inserting a microSD Memory Card ..................5 2-3 Mounting the DrivePro .....................5 2-4 Connecting to Power .......................8 2-5 Function Buttons ......................9 2-6 LED Indicator Chart ......................9 2-7 Setting the Date, Time and Time Zone ................9 Recording Videos .................
  • Page 3 18. Eurasian Conformity Mark (EAC) ..........26...

  • Page 4: Package Contents

    1. Package Contents The DrivePro dashcam package includes the following items: DrivePro Dashcam Suction Mount microSD Memory Card Car Lighter Adapter Quick Start Guide...

  • Page 5: Getting Started

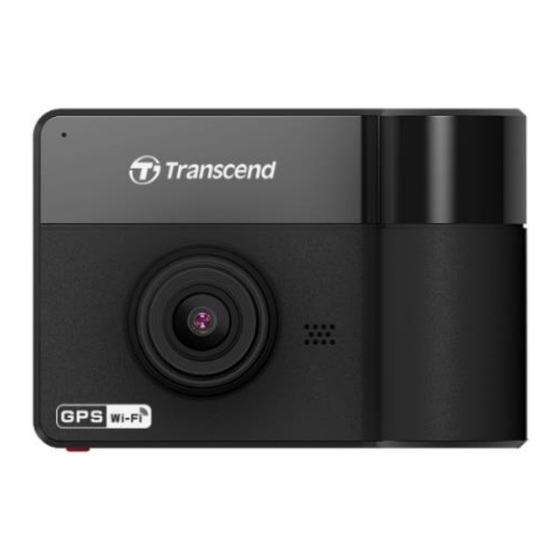

    2. Getting Started 2-1 Overview Mounting Socket Microphone Front Lens Speaker 2.4” LCD Display Infrared LED Rear Lens Recording Indicator Indicator Reset Button Emergency Button Power Button Function Buttons micro USB Port microSD Slot...

  • Page 6: Inserting A Microsd Memory Card

    WARNING: 1. The DrivePro 550 supports only the FAT32 file system and does not support exFAT or NTFS. 2. Make sure the allocation Unit Size of the microSD card is 32 KB or larger; if not, the DrivePro will format the card before recording.
  • Page 7 2. Thoroughly clean and dry the area of the windshield you wish to mount the DrivePro. If possible, mount the DrivePro in the middle of the windshield near the rear-view mirror for the best field of view. 3. Press down the lever bar of the suction mount, and firmly attach the DrivePro to the windshield.
  • Page 8 WARNING: The equipment is only suitable for mounting at heights ≤ 2 m.

  • Page 9: Connecting To Power

    2-4 Connecting to Power Note: Insert a microSD memory card before connecting the DrivePro to your car power outlet. 1. Connect the micro USB cable to the DrivePro. 2. Plug the other end of the car charger in your car power outlet. 3.

  • Page 10: Function Buttons

    2-5 Function Buttons Mode Video Recording Power / Wi-Fi Browse Files Settings Snapshot Browse/Settings Back Down Video Playback Back Play/Pause Protected/Unprotected Delete View Photos Back Down Delete  Long press the button to manually turn on/off the DrivePro in any mode. ...
  • Page 11 1. During video recording, press the Settings button 2. Use to select Date/Time and press 3. Use to adjust values, and press to move to the next block. 4. Repeat Step 3 to set up the date/time format and time zone. Press after finishing the settings.

  • Page 12: Recording Videos

    3. Recording Videos 3-1 Normal Recording After the car engine is switched on, the DrivePro will automatically turn on and start recording. By default, one video file is saved for every 3 minutes of recording. To adjust the recording length, please refer to the Settings section in this manual.

  • Page 13: Parking Mode Recording

    (connected to power). Transcend’s car lighter adapter does not supply power after the engine is switched off. If long-term recording in Parking mode is required, please use an external power supply. Enter the Parking mode manually by long pressing the button during video recording.

  • Page 14: Playing Videos And Browsing Photos

    Low Battery Please charge the DrivePro immediately after viewing the Low Battery warning to avoid errors happening to the system time. Please avoid using the built-in battery to record videos directly. Note: If you want to record by the built-in battery, please make sure that it has a sufficient power supply.

  • Page 15: Deleting Videos/Photos

    3. Use to select the desired file, and press to preview 4. Press to return to the video file list. 4-2 Deleting Videos/Photos 1. Press to delete video/photo files. 2. Use to cancel or confirm the deletion of the video/photo file, and press...

  • Page 16: Protecting Videos

    4-3 Protecting Videos 1. Press to protect the video file. 2. Use to select the desired option and press 5. Settings In the Settings menu, you can adjust settings of video resolution, recording time and G-Sensor sensitivity. You can also set the date/time, change the interface language, format the memory card, and upgrade firmware, etc.
  • Page 17 2. Use to select the menu and press 3. Use to select the desired setting, and press 4. Press to return to the Settings menu.

  • Page 18: Menu Options

    5-1 Menu Options Camera Icon Feature Function/Option Set the resolution/quality for video recording (front lens+rear lens). Resolution 1080P 60fps+1080P 30fps / 1080P 30fps+1080P 30 fps(default) / 720P 30fps+720P 30fps Adjust exposure composition value to lighten or darken the preview screen. Exposure Value +2.0 / +1.5 / +1.0 / +0.5 / 0 (default) / -0.5 / -1.0 / -1.5 / -2.0 Turn on/off the microphone during video recording.
  • Page 19 Alert the driver when the vehicle is getting too close to the car ahead. This function is activated when the driving speed exceeds Forward the value set ahead. Collision Disable (default) / 60 kmh ~ 150 kmh (40 mph~85 mph) Alert the driver with warning beeps if the driving speed exceeds the value set ahead.
  • Page 20 WARNING: Formatting will erase all the data stored in the Format Card card. Cancel (default) / Confirm Keep your DrivePro up-to-date with the latest version downloaded from the Transcend website Upgrade https://www.transcend-info.com/Support/service. Firmware Cancel (default) / Confirm Reset all the settings to factory default settings.

  • Page 21: Upgrade Firmware

    5-2 Upgrade Firmware 1. After downloading the firmware from Transcend website, decompress it and put it in the “SYSTEM” folder in the microSD memory card. 2. Insert the microSD memory card that contains the latest firmware version. 3. Select Upgrade Firmware from the Settings menu, and press to start the firmware detection process.

  • Page 22: Downloading And Installing The App

    6-1 Downloading and Installing the App 1. Search “DrivePro” on your App Store or Google Play. 2. Download and install the DrivePro App. Once the installation is completed, the App will be displayed on the home screen of your device. Before using the App, please refer to the DrivePro instructions.

  • Page 23: Transferring Files To A Computer

     Do not use the DrivePro in an environment with strong magnetic fields or excessive vibration.  Only use the car adapter provided by Transcend. Other car adapters may not compatible with the DrivePro.  Car power outlets of some types of vehicles will still supply power after the car engine is turned off.

  • Page 24: Troubleshooting

    DrivePro for repair. If you cannot find any ideal solution to your question below, please consult your dealer, service center, or local Transcend branch office for further help. You can also visit the Transcend website for FAQ and Technical Support services. For any Hardware issues, please refer to the DrivePro User’s Manual.

  • Page 25: Specifications

    Specifications 2.4" color TFT LCD Display Type & Size Connect Interface USB 2.0 Storage Capacity microSD, 64GB 95.6 mm (L) × 65.9mm (W)× 40.5 mm (H) Dimensions 3.76” (L) x 2.59” (W) x 1.59” (H) Weight 107g (3.77 oz) Li-Polymer Battery Input: DC 12V~24V Power Supply (power...

  • Page 26: Eu Compliance Statement

    High Endurance microSDXC 350V card EU Compliance Statement Transcend Information hereby declares that all CE marked Transcend products incorporating radio equipment functionality are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.transcend-info.com/eu_compliance...

  • Page 27: Warranty Policy

    * Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. * This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Transcend Information Inc (USA) 1645 North Brian Street, Orange, CA 92867, U.S.A TEL: +1-714-921-2000 Warranty Policy Please find the warranty period of this product on its package.
