User's Manual
Dashcam
DrivePro™ 110
2020/05
(Version 1.3)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DrivePro 110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transcend DrivePro 110

Summary of Contents for Transcend DrivePro 110

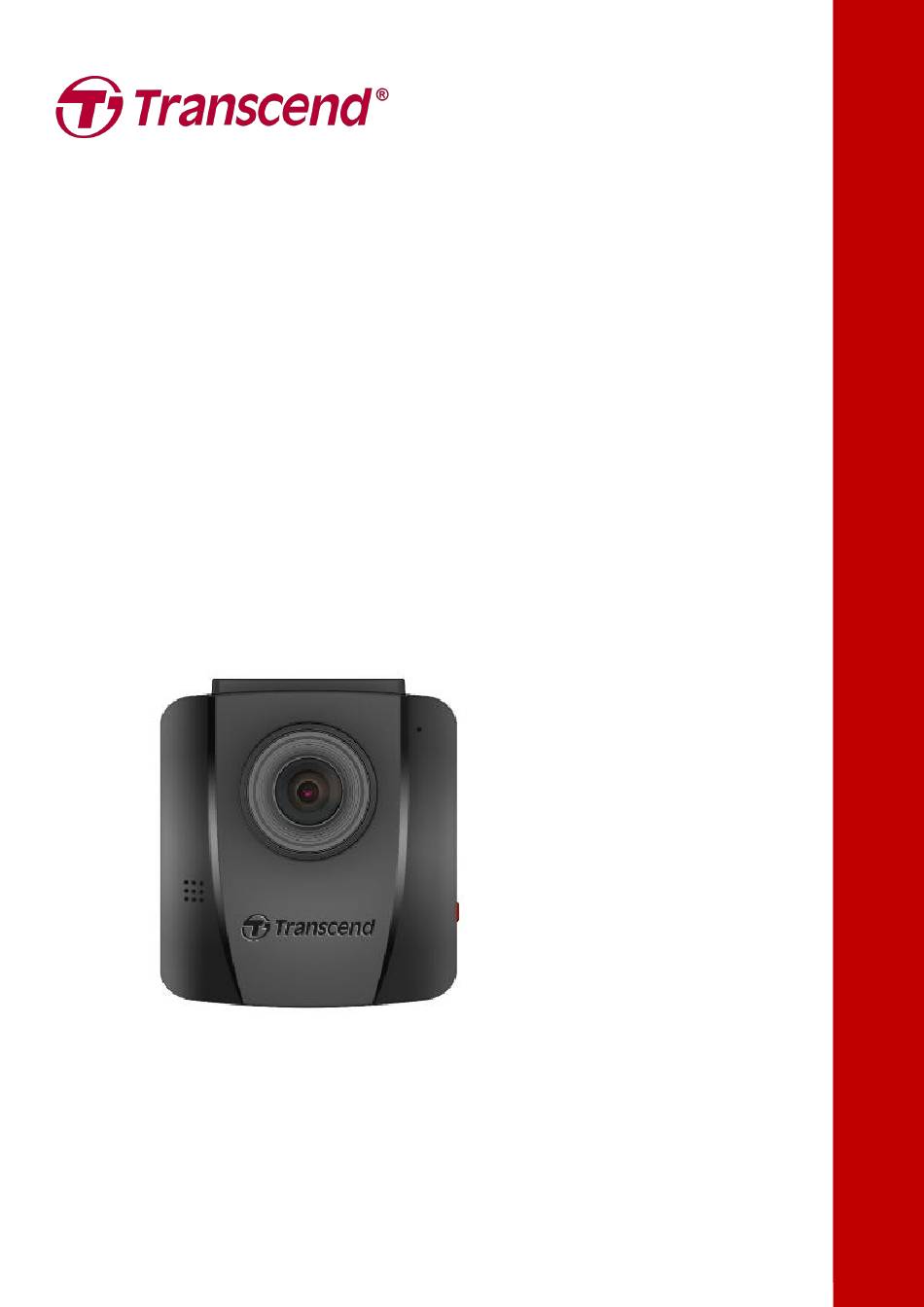

  • Page 1 User’s Manual Dashcam DrivePro™ 110 2020/05 (Version 1.3)

  • Page 2: Table Of Contents

    Table of Contents System Requirements ..............2 Package Contents ................2 Getting Started ................. 4 3-1 Overview ..........................4 3-2 Inserting a microSD Memory Card ..................4 3-3 Mounting the DrivePro ......................6 3-4 Connecting to Power ......................7 3-5 Function Buttons ........................9 3-6 LED Indicator Reference Chart ..................9 3-7 Setting the Date and Time ....................9 Recording Videos ................

  • Page 3: System Requirements

    ®  Windows ®  Mac ® OS 10.11 or later 2. Package Contents The DrivePro 110 dashcam package includes the following items:  A DrivePro 110 Dashcam  An Adhesive Mount or a Suction Mount  A Car Adapter...
  • Page 4  A Transcend microSD Memory Card  A Quick Start Guide  A Warranty Card...

  • Page 5: Getting Started

    Upon receipt, press to begin formatting immediately; press to resume without taking actions. Notice: Formatting will erase all data on the memory card. WARNING: DrivePro 110 can only support FAT32 and exFAT file format, but not NTFS.
  • Page 6 2. To remove, push to eject the memory card out of the slot. WARNING: Do not remove the memory card during shutdown to avoid damages to the memory card and loss of recorded videos  The following table shows approximate recording time according to capacity and resolution (for reference only): Card Capacity (FAT32) DrivePro...

  • Page 7: Mounting The Drivepro

    3-3 Mounting the DrivePro Insert the mount bracket into the top of the DrivePro, and slide sideways until you hear a click. 2. Thoroughly clean and dry the area of the windshield you wish to mount the DrivePro. If possible, mount the DrivePro in the middle of the windshield near the rear-view mirror for the best field of view.

  • Page 8: Connecting To Power

    3-4 Connecting to Power Note: Insert a microSD memory card before connecting the DrivePro to your car’s lighter socket. 1. Connect the small end of the car adapter to the USB connector of the DrivePro. 2. Connect the other end of the car adapter to your car’s lighter socket.
  • Page 9 3. After the car engine is switched on, the DrivePro will automatically turn on and start recording. 4. After the car engine is switched off, the DrivePro will automatically save the current recording, and power off. Note: Lighter sockets of some types of vehicles will still supply power after the car engine is turned off.

  • Page 10: Function Buttons

    3-5 Function Buttons Mode Video Recording Power Browse Files Settings Take Photos Browse/Settings Back* Down Video Playback Back* Play/Pause Protected/Unprotected Delete View Photos Back* Down Delete 1. Press and hold the button for 3 seconds to manually turn on/off the DrivePro in any mode.
  • Page 11 2. Use to select Date/Time Settings, and press 3. Use to adjust values, and press to move to the next block. Repeat step 3 above until the date and time settings are complete.

  • Page 12: Recording Videos

    4. Recording Videos 4-1 Recording Screen Recording status indicator Duration of your recording FPS (frame per second) Voice record status Battery status Current time After the car engine is switched on, the DrivePro will automatically turn on and start recording. By default, one video file is saved for every 3 minutes of recording.
  • Page 13 Manual Emergency Recording: During video recording, press the emergency button on the left-hand side of the DrivePro to manually activate emergency recording mode. The emergency icon will appear on the screen when activated. G-Sensor Emergency Recording: During video recording, the DrivePro will automatically activate Emergency Recording mode when detecting a collision.

  • Page 14: Browsing Photos And Playing Videos

    5. Browsing Photos and Playing Videos 5-1 Playing Videos / Browsing Photos 1. During video recording, press the Browse button 2. Use to select either Normal, Emergency or Snapshot, and press 3. Use to select the desired video file, and press 4.

  • Page 15: Deleting Videos

    5-2 Deleting Videos . The message, “Delete?” will pop up. 1. During playback of a video file, press to select “Yes,” and press 2. Use to delete the file. 5-3 Protecting Videos . The message, “Lock?”, will pop up. 1. During playback of a normal video file, press to select “Yes,”...

  • Page 16: Settings

    6. Settings In the Settings menu, you can adjust settings of video resolution, recording time and G-Sensor sensitivity. You can also set the date/time/time zone, change the interface language, format the memory card, or upgrade firmware. 1. During video recording, press the Settings button 2.
  • Page 17 Video Stamp: Display the current time of the event of the video being recorded. Available options: Disable / Enable Time-Lapse Video: Set a preferred time interval to make time-lapse videos. Time-lapse video mode can only be enabled manually; once enabled, it will replace Normal recording mode. Available options: Disable / 1 sec per shot / 2 sec per shot / 4 sec per shot Note: To prevent the car battery from being completely drained, the DrivePro will automatically power off after 48 consecutive hours of recording in Time-Lapse Video mode.
  • Page 18 DrivePro 110. 1. After downloading firmware from Transcend website, decompress it and then put the DP110V02.bin file in the “SYSTEM” folder of the microSD memory card.
  • Page 19 WARNING: NEVER remove the power cord or the microSD memory card while the firmware is being upgraded. If the DrivePro cannot be turned on due to firmware upgrade failure, please contact Transcend customer service for technical support.

  • Page 20: Drivepro Toolbox Software

    DrivePro without the need to install separate codecs. Download the installation files from: http://www.transcend-info.com/downloads Install DrivePro Toolbox software on your desktop or laptop. Useful features available for the DrivePro 110 include: Video Sorting Easily sort videos by file name, recorded date, or by group. Smooth Video Playback Connect the DrivePro or use a microSD card slot supported card reader or adapter to play back recorded events on your Windows OS computer.

  • Page 21: Transferring Files To A Computer

    8. Transferring Files to a Computer To transfer files between the DrivePro’s memory card and your computer: Option 1: Take the microSD memory card out of the DrivePro, and insert to a compatible card reader to transfer files to your computer. Option 2: 1.
  • Page 22 *Note: (I:) is an example drive letter – the letter in your “My Computer” window may differ. Your DrivePro is now ready to transfer data just like an external hard drive. To transfer videos, simply drag-and-drop files from the folder that represents the DrivePro. Proper removal of your DrivePro from Windows: Click once on the Removable Hardware icon in the system tray.
  • Page 23 1. WARNING: To prevent data loss, always follow the proper removal procedures when disconnecting the DrivePro from your computer. 2. When the DrivePro is connected to a computer, it can only be used for transferring files. You will not be able to use any of the DrivePro’s features at this time.

  • Page 24: Troubleshooting

    DrivePro for repair. If you cannot find any ideal solution to your question below, please consult your dealer, service center, or local Transcend branch office for further help. You can also visit Transcend website for FAQ and Technical Support services. For any Hardware issues, please refer to the DrivePro User’s Manual.

  • Page 25: Safety Cautions

     Do not use the DrivePro in an environment with strong magnetic fields or excessive vibration.  Only use the car adapter provided by Transcend. Other car adapters may not compatible with the DrivePro.  Lighter sockets of some types of vehicles will still supply power after the car engine is turned off.

  • Page 26: Specifications

    HD (1280 x 720) / 30fps CE, FCC, NCC, BSMI, EAC Certification 2 years Warranty Besides the bundled microSD card, we recommend Transcend’s High Endurance microSD card as an additional purchase to ensure the best recording performance: Note  32GB microSDHC card (TS32GUSD300S) ...

  • Page 27: Recycling And Environmental Protection

    12. Recycling and Environmental Protection Recycling the Product (WEEE): Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means that the product is covered by the European Directive 2002/96/EC: Never dispose of your product with other household waste.

  • Page 28: Federal Communications Commission (Fcc) Statement

    13. Federal Communications Commission (FCC) Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.

  • Page 29: Two-Year Limited Warranty

    Under special circumstances, Transcend may refund or credit the current value of the product at the time the warranty claim is made. The decision made by Transcend shall be final and binding upon you. Transcend may refuse to provide inspection, repair or replacement service for products that are out of warranty, and will charge fees if these services are provided for out-of-warranty products.

  • Page 30: Gnu General Public License (Gpl) Disclosure

    WITHOUT ANY WARRANTY, without even implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. The entire risk as to the quality and performance of the GPL Software is with you. Transcend does not provide any support for the GPL software.
  • Page 31 10. Miscellaneous. (a) This Agreement constitutes the entire agreement between Transcend and Customer concerning the subject matter hereof, and it may only be modified by a written amendment signed by an authorized executive of Transcend. (b) Except to the extent applicable law, if any, provides otherwise, this Agreement will be governed by the law of the Republic of China, excluding its conflict of law provisions.

  • Page 32: Eurasian Conformity Mark (Eac)

    17. Eurasian Conformity Mark (EAC)
