User's Manual
Drive Pro Car Video Recorder
(Version 0.1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Drive Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Transcend Drive Pro

Summary of Contents for Transcend Drive Pro

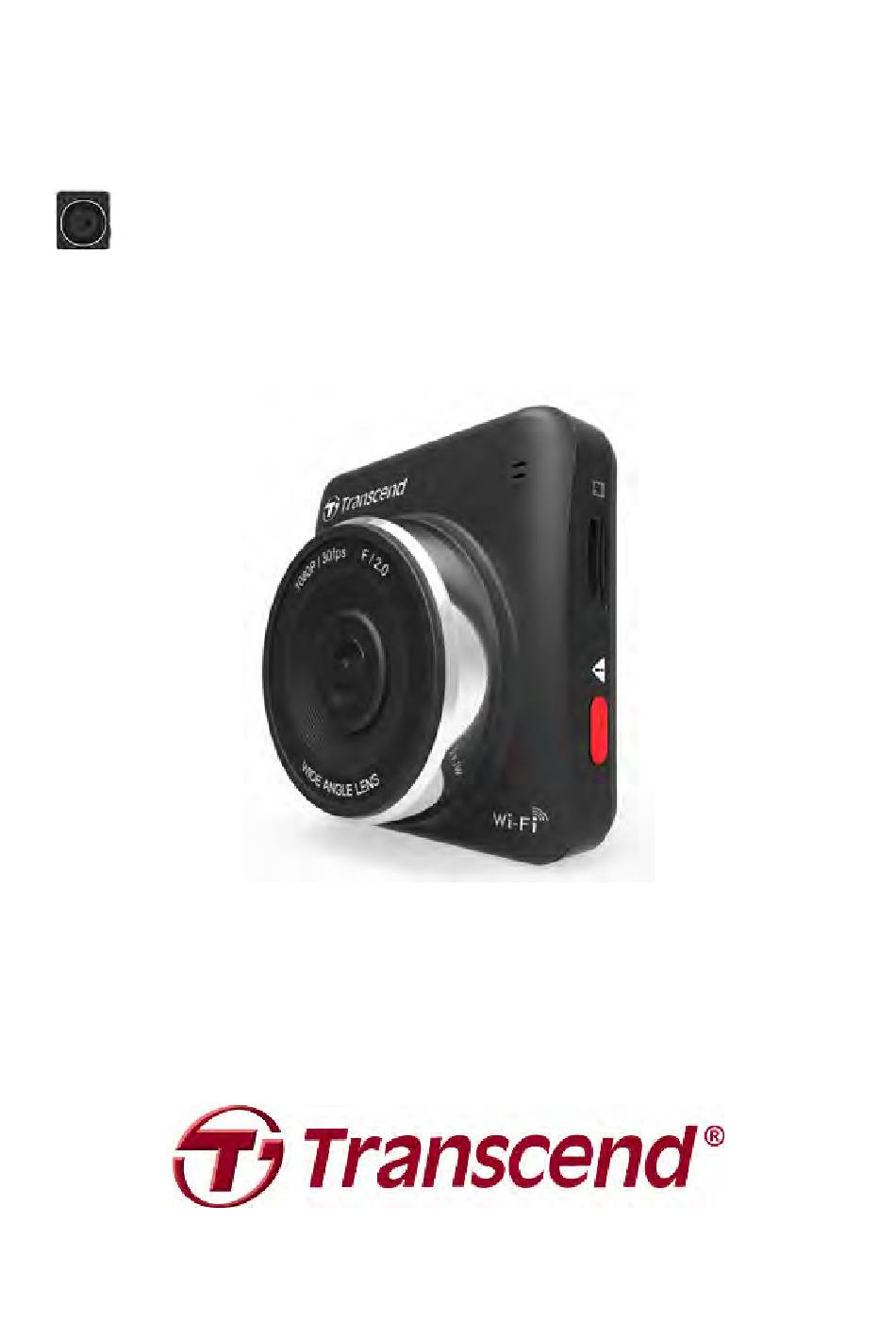

  • Page 1 User's Manual Drive Pro Car Video Recorder (Version 0.1)

  • Page 2: Table Of Contents

    Installing the Drive Pro App︱ ︱ ︱ ︱ ..................... 20 Connecting to the Drive Pro using iOS and Android Devices︱ ︱ ︱ ︱ ........21 Using the Drive Pro App on iOS and Android Devices︱ ︱ ︱ ︱ ..........23 Transfer Files to a Computer︱...

  • Page 3: Introduction

    Mounted on your car’s windshield, the Drive Pro uses a 120° Wide Angle Lens for the best field of view and records video in crystal clear Full HD 1080P to ensure all the important details of your trip are recorded. Videos are saved on a microSD memory card as the vehicle is driven.
  • Page 4 16GB microSD Memory Card Video Cable Quick Start Guide Warranty Card...

  • Page 5: Features

    120 degree wide angle lens Hi-Speed USB 2.0 connector for easy computer connectivity and fast file transfers Wi-Fi function lets you operate the Drive Pro on your mobile device Stream videos on a larger screen via VIDEO OUT port Bundled 16GB microSD memory card Records video in .MOV file format...

  • Page 6: Safety Precautions

    • Do not use the Drive Pro in environments with strong magnetic fields or excessive vibration. • Only use the Transcend provided car adapter with the Drive Pro. Use of other car adapters may cause unknown problems. • If your car’s lighter socket continues to provide power after the engine is switched off, unplug the Drive Pro when the engine is off or idling to reduce unnecessary power consumption and prevent any unexpected problems.

  • Page 7: Getting Started

    Getting Started︱ ︱ ︱ ︱ Wide Angle Lens Built-in Speaker VIDEO OUT Port 2.4” LCD Display Function Buttons LED Indicator Emergency Button Memory Card Slot Bracket Socket USB Connector Built-in Microphone Reset Button...

  • Page 8: Inserting A Microsd Memory Card

    Inserting a microSD Me mory Card You must insert a microSD memory card into the Drive Pro before you can start recording. Please use a Class 6 or above microSD memory card with 8GB, 16GB or 32GB capacity. Insert a microSD memory card into its appropriate card slot on the left-hand side of the Drive Pro.

  • Page 9: Mounting The Drive Pro

    Mounting the Drive Pro Insert the mounting bracket into the top of the Drive Pro and slide sideways until you hear a click. Thoroughly clean and dry the area of the windshield you wish to mount the Drive Pro. If possible, mount the Drive Pro in the middle of the windshield near the rear-view mirror for the best field of view.

  • Page 10: Connecting To Power

    Note: Insert a microSD memory card before connecting the Drive Pro to your car’s lighter socket. 1. Connect the small end of the car adapter to the USB connector of the Drive Pro. 2. Connect the other end of the car adapter to your car’s lighter socket.

  • Page 11: Recording Screen

    Note: On some cars, the lighter socket continues to provide power after the engine is switched off. If this happens, unplug the Drive Pro when the engine is off or idling to reduce unnecessary power consumption and prevent any unexpected problems.

  • Page 12: Function Buttons

    Protect Play/Pause *Press and hold for 3 seconds to turn on/off the Drive Pro in any mode. Emergency Recording During video recording, press the emergency button on the left-hand side of the Drive Pro to manually activate emergency recording mode.

  • Page 13: Set The Date And Time

    LED Indicator Reference Chart LED Status Definition Solid Red Stand by (Wi-Fi Off) Flashing Red Recording (Wi-Fi Off) Solid Blue Stand by (Wi-Fi On) Flashing Blue Recording (Wi-Fi On) Set the Date and Time To set the current date and time: During video recording, press the Settings button to select Date/Time Settings and press to adjust the value and press...

  • Page 14: Recording Videos

    In emergency recording mode, the Drive Pro records data 5 seconds before and 55 seconds after the event occurs (total 1 minute). The Drive Pro can save up to 15 emergency video files. Video files recorded in emergency mode are protected from being overwritten.
  • Page 15 G-Sensor event recording: During video recording, if the Drive Pro detects an impact, it will automatically activate emergency recording mode. If the G-Sensor sensitivity is set to “High”, even minor shocks will be detected. If the G-Sensor sensitivity is set to “Low”, it will only detect significant shocks.

  • Page 16: Browse And Playback Videos

    Browse and Playback Videos︱ ︱ ︱ ︱ Playing Videos 1. During video recording, press the Browse button 2. Use to select either Normal Files or Protected Files and press 3. Use to select the desired video file and press 4. Press to pause playback.

  • Page 17: Protecting Videos

    VIDEO OUT To playback recorded files on a TV set: 1. Connect the Drive Pro to your TV using the video cable. 2. Press the Settings button on the Drive Pro. 3. Use to select Video Out and press 4.

  • Page 18: Settings

    Settings︱ ︱ ︱ ︱ In the Settings menu, you can adjust settings such as video resolution, recording time, and G-Sensor sensitivity. You can also set the date/time, change interface language, format memory card, and upgrade firmware. 1. During video recording, press the Settings button 2.
  • Page 19 Available options: No / Yes WARNING: Formatting the memory card will erase all data on the card. Upgrade Firmware: Use this function to keep your Drive Pro up to date with the latest version from Transcend (available on the Transcend website).
  • Page 20 WARNING: NEVER remove the power cord or the microSD memory card while the firmware is being upgraded. If firmware upgrade fails and the Drive Pro will not turn on, please contact Transcend customer support. Restore Defaults: Reset all settings to factory default settings.

  • Page 21: Installing The Drive Pro App

    Installing the Drive Pro App︱ ︱ ︱ ︱ Developed specifically for iOS (iPhone/iPad) and Android devices, the free to download Drive Pro App allows you to wirelessly view live video footage during recording, control Drive Pro functions and playback videos directly from your smartphone or tablet.

  • Page 22: Connecting To The Drive Pro Using Ios And Android Devices

    Under Wi-Fi, select Drive Pro. Default Wi-Fi security key: ‘12345678’. To change the default SSID and setup Wi-Fi security key, please see the Using the Drive Pro App on iOS and Android Devices/Settings section of this manual for detailed instructions.

  • Page 24: Using The Drive Pro App On Ios And Android Devices

    Using the Drive Pro App on iOS and Android Devices︱ ︱ ︱ ︱ When the Drive Pro App is launched while connected to the Drive Pro, the live view screen will be displayed in landscape mode. Here you can see live video footage, recording format, microphone status, current time and recording status.
  • Page 25 Playback Videos From the file list, tap the thumbnail image of the desired video. For iOS: The selected file will play automatically. For Android: Choose one of the video player Apps installed on your device to play the video. Note: If the selected App cannot play the file, please download and install a suitable video player App from Google Play.
  • Page 26 For iOS: The file will be downloaded to the Camera Roll of the iOS device. For Android: The file will be downloaded to the /sdcard/Drive Pro folder of the Android device. Note: You can edit the default download path of your Android device in Settings.
  • Page 27 1. From the Drive Pro App home page, tap Settings. WARNING: After tapping Settings, the Drive Pro will automatically stop recording. To start recording again, go back to the live view page. The Drive Pro will automatically start recording. 2. Tap on the desired item to view more options.
  • Page 28 SSID and Key to differentiate your Wi-Fi Drive Pro from others that may be transmitting in your area. Note: The SSID / Key must be at least 8 characters long and no more than 32 characters.

  • Page 29: Transfer Files To A Computer

    Operating Systems have built-in drivers to support your Drive Pro. Upon successful connection to your computer, a new Removable Disk drive with a newly assigned drive letter representing the Drive Pro will automatically appear in the My Computer window and a Removable Hardware icon will appear in the Windows System Tray..
  • Page 30 *Note: (E:) is an example drive letter – the letter in your “My Computer” window may differ. Your Drive Pro is now ready to transfer data just like an external hard drive. To transfer videos, simply drag-and-drop files from the folder that represents the Drive Pro.
  • Page 31 When Drive Pro is connected to a computer, it can only be used for transferring files. You will not be able to use to use any of the Drive Pro’s features at this time. Please disconnect your Drive Pro from the computer to resume normal function.
  • Page 32 My computer’s operating system cannot detect my Drive Pro Check the following: 1. Is your Drive Pro properly connected to the USB port? If not, unplug it and plug it in again. Make sure the USB port is connected on both ends, as shown in the User’s Manual.

  • Page 33: Specifications

    Specifications︱ ︱ ︱ ︱ Panel: 2.4" LCD Speaker: 0.5 Watt USB interface: 1x USB mini B type interface Storage: With 16GB microSD memory card 4 buttons at front side Control key: 1 button at left side 1 button at below side 67mm ×72mm ×...

  • Page 34: Recycling And Environmental Considerations

    Recycling and Environmental Considerations︱ ︱ ︱ ︱ Recycling the Product (WEEE): Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC: Never dispose of your product with other household waste.

  • Page 35: Federal Communications Commission (Fcc) Statement

    Federal Communications Commission (FCC) Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation.

  • Page 36: 低功率電波輻射性電機管理辦法

    低功率電波輻射性電機管理辦法 低功率電波輻射性電機管理辦法 低功率電波輻射性電機管理辦法 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原 設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干 擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電 波輻射性電機設備之干擾。...

  • Page 37: Two-Year Limited Warranty

    Under special circumstances, Transcend may refund or credit the current value of the product at the time the warranty claim is made. The decision made by Transcend shall be final and binding upon you. Transcend may refuse to provide inspection, repair or replacement service for products that are out of warranty, and will charge fees if these services are provided for out-of-warranty products.
