User's Manual
Dual Camera Dashcam
DrivePro™ 620
2021/03
(Version 1.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DrivePro 620 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transcend DrivePro 620

Summary of Contents for Transcend DrivePro 620

  • Page 1 User’s Manual Dual Camera Dashcam DrivePro™ 620 2021/03 (Version 1.0)

  • Page 2: Table Of Contents

    Table of Contents Package Contents ................3 System Requirements ..............3 Getting Started ................4 3-1 Overview ...........................4 3-2 Inserting a microSD Memory Card ..................5 3-3 Mounting the DrivePro .....................6 3-4 Connecting to Power .......................7 3-5 Initial Pairing Setup ......................8 3-6 Function Buttons ......................9 3-7 LED Indicator Reference Chart ..................
  • Page 3 17. GNU General Public License (GPL) Disclosure ......30 18. End-User License Agreement (EULA) ........30 19. Eurasian Conformity Mark (EAC) ..........32...

  • Page 4: Package Contents

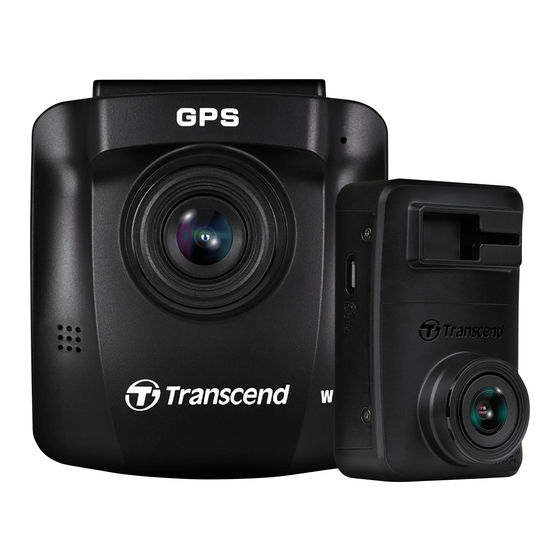

    1. Package Contents The DrivePro 620 dashcam package includes the following items:   Front camera (DrivePro 250) microSD card x2   Rear camera (DrivePro 10) Dual USB car charger   Adhesive mount 4m/8m micro-USB cable  ...

  • Page 5: Getting Started

    3. Getting Started 3-1 Overview Front Camera (DrivePro 250) micro USB Port Receiver Microphone Mounting Socket microSD Card Slot Emergency Button Reset Button LED Indicator Speaker Lens Function Buttons 2.4” LCD Display Rear Camera (DrivePro 10) Microphone Mounting Socket Lens LED Indicator Reset Button Emergency Button...

  • Page 6: Inserting A Microsd Memory Card

    Notice: Formatting will erase all data on the memory card. WARNING: DrivePro 620 can only support FAT32 and exFAT file format, but not NTFS. 2. To remove, push to eject the memory card out of the slot.

  • Page 7: Mounting The Drivepro

    3-3 Mounting the DrivePro Insert the mount bracket into the top of the cameras, and slide sideways until you hear a click. 2. Thoroughly clean and dry the area of the windshield you wish to mount the DrivePro. If possible, mount the front camera in the middle of the windshield, near the rear-view mirror for the best field of view.

  • Page 8: Connecting To Power

    Note: Insert a microSD memory card before connecting the DrivePro to your car power outlet. Transcend recommends having an experienced installer with proper knowledge of the vehicle install the device to ensure your safety. Transcend assumes no responsibility for any damage to vehicles in connection with an improper installation.

  • Page 9: Initial Pairing Setup

    4. After the car engine is switched on, the DrivePro will automatically turn on and start recording. 5. After the car engine is switched off, the DrivePro will automatically save the current recording, and power it off. Note: Car power outlets of some types of vehicles will still supply power after the car engine is turned off.

  • Page 10: Function Buttons

    3-6 Function Buttons Front Camera (DrivePro 250) Mode Video Recording Power/Wi-Fi Browse Files Settings Take Photos Browse/Settings Back Down Video Playback Back Play/Pause Protected/Unprotected Delete View Photos Back Down Delete 1. Press and hold the button for 3 seconds to manually turn on/off the DrivePro in any mode.

  • Page 11: Led Indicator Reference Chart

    Rear Camera (DrivePro 10) Mode Emergency Recording / Restore to Default Emergency Short press the red button to manually activate Emergency Recording. Recording Long press the red button for 10 Restore to Default seconds to reset device settings to default and format the memory card. Notice: Formatting will permanently erase all data.

  • Page 12: Setting Utc Timezone

    3. Use to adjust values, and press to move to the next block. 4. Repeat step 3 above until the date and time settings are complete. 3-9 Setting UTC Timezone To ensure the accuracy of GPS data: 1. During video recording, press the Settings button 2.

  • Page 13: Emergency Recording

    After the car engine is switched on, the DrivePro will automatically turn on and start recording. By default, one video file is saved for every 1 minute of recording. To adjust the recording length, please refer to the Settings section in this manual. After the car engine is switched off, the DrivePro will automatically save the current recording and power it off.

  • Page 14: Parking Mode Recording

    (connected to power). Transcend’s car lighter adapter does not supply power after the engine is switched off. If long-term recording in Parking mode is required, please use an external power supply. Enter the Parking mode manually by long-pressing the button during video recording.
  • Page 15 Note: Please fully charge the DrivePro before using.

  • Page 16: Browsing Photos And Playing Videos

    5. Browsing Photos and Playing Videos 5-1 Playing Videos / Browsing Photos 1. During video recording, press the Browse button 2. Use to select either Normal, Emergency or Snapshot, and press 3. Use to select the desired video file, and press 4.

  • Page 17: Deleting Videos

    5-2 Deleting Videos . The message, “Delete?” will pop up. 1. During playback of a video file, press to select “Yes,” and press 2. Use to delete the file. 5-3 Protecting Videos . The message, “Lock?”, will pop up. 1. During playback of a normal video file, press to select “Yes,”...

  • Page 18: Settings

    6. Settings In the Settings menu, you can adjust settings of video resolution, recording time and G-Sensor sensitivity. You can also set the date/time/time zone, change the interface language, format the memory card, and upgrade firmware. Some settings automatically apply to the DrivePro 10 (indicated by *) while some don’t.

  • Page 19: Menu Options (* Indicates The Settings Apply To The Drive Pro 10)

    6-1 Menu Options (* indicates the settings also apply to the Drive Pro 10) Camera Icon Feature Function/Option Set the resolution/quality for video recording. 1080P 60fps(FHD) (default) / 1080P 30fps(FHD) / 720P Resolution 60fps(HD) / 720P 30 fps(HD) Adjust exposure composition value to lighten or darken the Exposure preview screen.
  • Page 20 Alert the driver when the vehicle is getting too close to the car ahead. This function is activated when the driving speed exceeds Forward the value set ahead. Collision Disable (default) / 60 kmh ~ 150 kmh (40 mph~85 mph) Alert the driver with warning beeps if the driving speed exceeds the value set ahead.
  • Page 21 WARNING: Formatting will erase all the data stored in the Format Card card. No (default) / Yes Keep your DrivePro up-to-date with the latest version downloaded from the Transcend website. Upgrade https://www.transcend-info.com/Support/service. Firmware Cancel (default) / Confirm Reset all the settings to factory default settings.

  • Page 22: Firmware Upgrade

    6-2 Firmware Upgrade 1. User can download the latest firmware for the front (DP250) and the rear (DP10) cameras from the Transcend website. After downloading them, decompress and put them in the “SYSTEM” folder in the respective microSD memory card.

  • Page 23: Connecting To The Drivepro

    DrivePro, and see your driving paths of the recorded videos displayed on maps without the need to install separate codes. Download the installation files from https://www.transcend-info.com/downloads Install DrivePro Toolbox software on your computer. The useful features include: Video Sorting Easily sort videos by filename, recording date or group.

  • Page 24: Transferring Files To A Computer

    DrivePro. 3. Plug the large end of the cable into an available USB port on your computer. Cables in the DrivePro 620 package does not contain USB function. The DrivePro will display the following screen when connected to a computer:...
  • Page 25 Windows 7, 8, 8.1 and 10 ® No drivers are required for connecting the DrivePro to your desktop or laptop. Windows Operating Systems have built-in drivers to support your DrivePro. Upon successful connection to your computer, a new Removable Disk drive with a newly assigned drive letter representing the DrivePro will automatically appear in My Computer, and a Removable Hardware icon will appear in the Windows System Tray.

  • Page 26: Troubleshooting

    DrivePro for repair. If you cannot find an ideal solution to your question below, please consult your dealer, service center, or local Transcend branch office for further help. You can also visit the Transcend website for FAQ and Technical Support services. For any hardware issues, please refer to the DrivePro User’s Manual.
  • Page 27  Do not use the DrivePro in an environment with strong magnetic fields or excessive vibration.  Only use the car adapter provided by Transcend. Other car adapters may not compatible with the DrivePro.  Car power outlets of some types of vehicles will still supply power after the car engine is turned off.

  • Page 28: Specifications

    Satellite System CE, FCC, BSMI, KC, NCC, MIC, EAC, RCM Certification: 2 years Warranty: In addition to the bundled microSD card, we recommend Transcend’s High Endurance microSD cards or MLC-based memory cards to ensure the best recording performance.  Note:...

  • Page 29: Eu Compliance Statement

    13. EU Compliance Statement Transcend Information hereby declares that all CE marked Transcend products incorporating radio equipment functionality are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.transcend-info.com/eu_compliance...

  • Page 30: Federal Communications Commission (Fcc) Statement

    15. Federal Communications Commission (FCC) Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.

  • Page 31: Two-Year Limited Warranty

    WITHOUT ANY WARRANTY, without even implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. The entire risk as to the quality and performance of the GPL Software is with you. Transcend does not provide any support for the GPL software.
  • Page 32 Licensed Software or Product; or (f) circumvent or attempt to circumvent any methods employed by Transcend to control access to the components, features or functions of the Product or Licensed Software.
  • Page 33 10. Miscellaneous. (a) This Agreement constitutes the entire agreement between Transcend and Customer concerning the subject matter hereof, and it may only be modified by a written amendment signed by an authorized executive of Transcend. (b) Except to the extent applicable law, if any, provides otherwise, this Agreement will be governed by the law of the Republic of China, excluding its conflict of law provisions.
