User's Manual
Dashcam
DrivePro™ 10
2020/05
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DrivePro 10 and is the answer not in the manual?

Questions and answers

Related Manuals for Transcend DrivePro 10

Summary of Contents for Transcend DrivePro 10

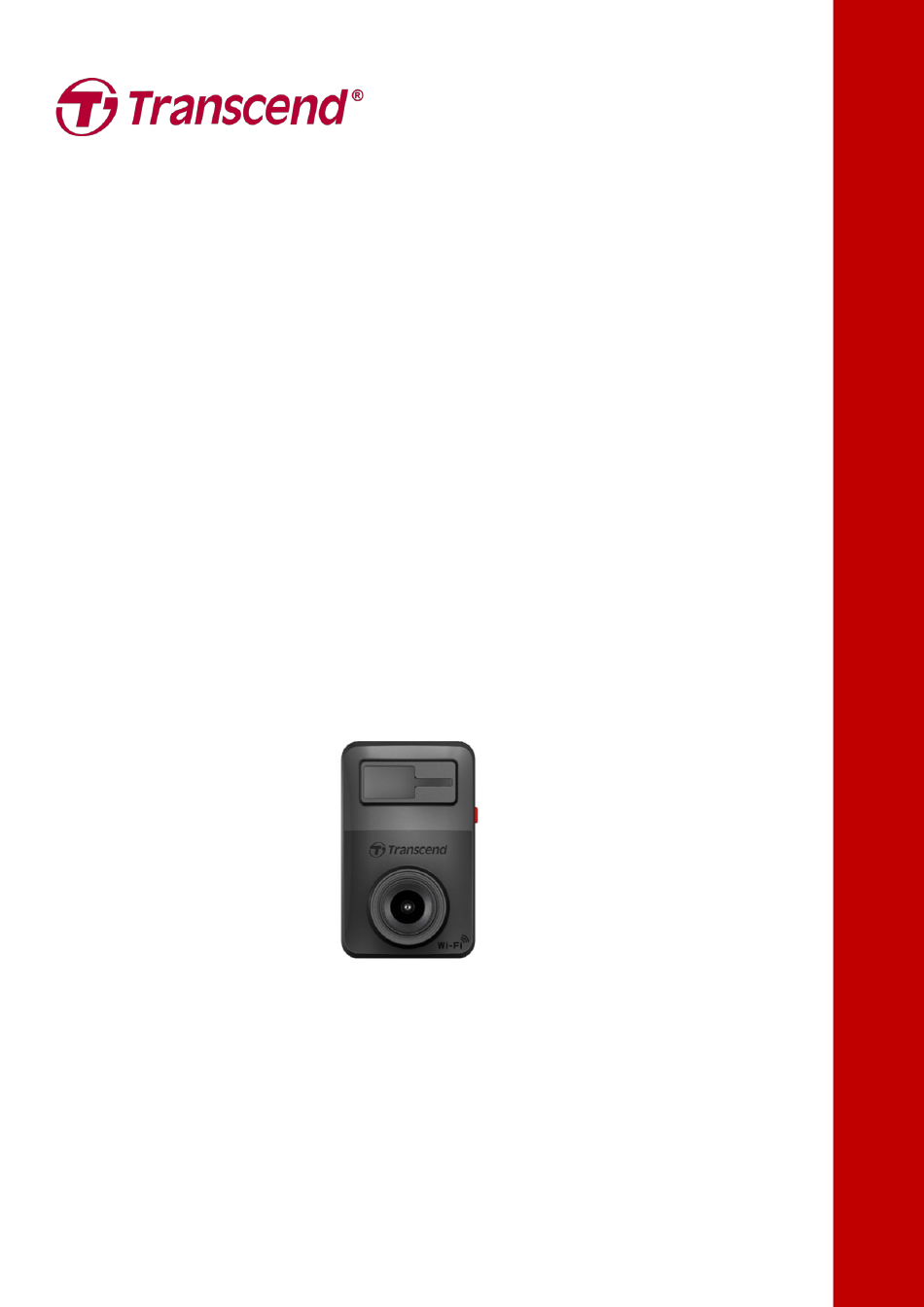

  • Page 1 User’s Manual Dashcam DrivePro™ 10 2020/05 Version 1.0...

  • Page 2: Table Of Contents

    Table of Contents System Requirements ..............2 Package Contents ................3 Getting Started ................. 4 3-1 Overview ..........................4 3-2 Inserting a microSD Memory Card ..................5 3-3 Mounting the DrivePro and Connecting to Power ..............5 3-4 Function Buttons ........................8 3-5 LED Indicator Chart ......................9 Recording Videos ................

  • Page 3: System Requirements

    1. System Requirements System requirements for connecting the DrivePro to a desktop or a laptop with a working USB port:  Windows ®  Windows ®  Windows ®  macOS ® X 10.14 or later System requirements for using the DrivePro Toolbox: ...

  • Page 4: Package Contents

    2. Package Contents The DrivePro 10 dashcam package includes the following items:  DrivePro 10 Dashcam  Adhesive Mount  Car Adapter  microSD Memory Card  Quick Start Guide...

  • Page 5: Getting Started

    3. Getting Started 3-1 Overview Built-in Microphone Mounting Socket Lens Recording Indicator Indicator Reset Pinhole micro USB Port Emergency Button microSD Card Slot...

  • Page 6: Inserting A Microsd Memory Card

    To format a memory card, go to Settings in the DrivePro app. The microSD card bundled with the DrivePro 10 does not require frequent formatting. However, for the best recording performance, we still recommend that the memory card be formatted on a regular basis.
  • Page 7 2. Thoroughly clean and dry the area of the windshield you wish to mount the DrivePro. 3. Peel off the protective film from the adhesive mount, and firmly attach the DrivePro to the windshield or the rear-view mirror. 4. Turn the adjustment knob anticlockwise to loosen, and then adjust the DrivePro’s position. 5.
  • Page 8 6. Connect the small end (Micro-B) of the car adapter to the USB connector of the DrivePro. 7. Plug the other end of the car adapter in your car’s lighter socket. 8. After the car engine is switched on, the DrivePro will automatically turn on and start recording.

  • Page 9: Function Buttons

    3-4 Function Buttons Mode Emergency Recording / Reset Button  Emergency Short press the red button to manually activate Recording Emergency Recording.  Long press the red button for 10 seconds to reset device settings to default and format the memory Restore to Default card.

  • Page 10: Led Indicator Chart

    3-5 LED Indicator Chart Recording: Wi-Fi Status Definition Flashing Recording with Wi-Fi ● Flashing Quickly Emergency Recording with Wi-Fi blue Solid Standby with Wi-Fi* Flashing Recording without Wi-Fi ● Flashing Quickly Emergency Recording without Wi-Fi Solid Standby without Wi-Fi* Note: Wi-Fi connection is only available when the DrivePro is connected to power. *The DrivePro will stop recording when a card error occurs or when you tap Data / Settings using the DrivePro app.

  • Page 11: Recording Videos

    4. Recording Videos 4-1 Normal Recording After the car engine is switched on, the DrivePro will automatically turn on and start recording. By default, one video file is saved for every one minute of recording. To adjust the recording length, go to Settings in the DrivePro app.

  • Page 12: Using The Drivepro App

    1. Before connecting to the DrivePro’s Wi-Fi, make sure the dashcam is connected to power via a car adapter. Then, launch the DrivePro app on your smart device. 2. In the app, select the DrivePro 10 (DP10) icon. 3. Select the Wi-Fi network with DP10 in the SSID. Enter the default password 12345678.
  • Page 13 4. Once the connection is established, you can start using app features such as Browser Live View.

  • Page 14: Playing Videos On A Smart Device

    5-3 Playing Videos on a Smart Device To browse saved clips, tap Browser. You can play back videos recorded in normal or emergency mode. download a video, or to delete. Note: The camera stops recording when you tap Browser or Settings in the app, the front LED turns solid blue.

  • Page 15: App Settings

    5-4 App Settings Settings, you can modify video and device configurations. VIDEO Resolution: Set the resolution/quality for video recording. Available options: 1080P 60FPS (default) / 1080P 30FPS / 720P 60FPS / 720P 30FPS (Note: Available options are displayed depending on your model.) Exposure Value: Adjust exposure composition value to lighten or darken the preview screen.
  • Page 16 The DrivePro™ will shut down and the red LED light will flash while the firmware is being upgraded. After the upgrade is complete, the DrivePro™ will restart automatically. If the DrivePro™ cannot be turned on due to firmware upgrade failure, please contact Transcend customer service for technical support.

  • Page 17: Drivepro Toolbox Software

    The DrivePro Toolbox features a user-friendly interface that allows you to select and play videos recorded on your DrivePro and display driving paths of recorded videos without the need to install extra codecs. 1. Download the software from: www.transcend-info.com/downloads 2. Install DrivePro Toolbox software on your desktop or laptop. Software Features 1. Video Sorting Easily sort videos by filename, recording date, or group.

  • Page 18: Transferring Files To A Computer

    7. Transferring Files to a Computer To transfer files between the DrivePro’s memory card and your computer: Option 1: Take the microSD memory card out of the DrivePro, and insert to a compatible card reader to transfer files to your computer. Option 2: 1.
  • Page 19 Proper removal of your DrivePro from Windows: Click once on the Removable Hardware icon in the system tray. A Safely Remove Hardware window will pop up. Click to continue. Unplug your DrivePro from the USB port. macOS ® X 10.14 or later No drivers are required.

  • Page 20: Safety Cautions

     Do not use the DrivePro in an environment with strong magnetic fields or excessive vibration.  Only use the car adapter provided by Transcend. Other car adapters may not compatible with the DrivePro.  Lighter sockets of some types of vehicles will still supply power after the car engine is turned off.

  • Page 21: Troubleshooting

    If a problem occurs to your DrivePro, please first check the instructions listed on our website before sending your DrivePro for repair. If you cannot find any ideal solution to your question, please consult your dealer, service center, or local Transcend branch office for further help. You can also visit Transcend website (https://www.transcend-info.com/Support/No-1145) for FAQs...

  • Page 22: Specifications

    Specifications USB 2.0 Connect Interface: microSD, 16GB / 32GB / 64GB /128GB (Class 10 or Storage Capacity: above) 58.3 mm (L) × 36 mm (W)× 22.8 mm (H) Dimensions: 2.3” (L) x 1.42” (W) x 0.9” (H) Weight: 1.41 oz Battery Li-Polymer Power Supply for...

  • Page 23: Recycling And Environmental Protection

    Recycling and Environmental Protection Recycling the Product (WEEE): Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means that the product is covered by the European Directive 2002/96/EC: Never dispose of your product with other household waste.

  • Page 24: Eu Compliance Statement

    EU Compliance Statement Transcend Information hereby declares that all CE marked Transcend products incorporating radio equipment functionality are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.transcend-info.com/eu_compliance...

  • Page 25: Federal Communications Commission (Fcc) Statement

    Federal Communications Commission (FCC) Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.

  • Page 26: Two-Year Limited Warranty

    Under special circumstances, Transcend may refund or credit the current value of the product at the time the warranty claim is made. The decision made by Transcend shall be final and binding upon you. Transcend may refuse to provide inspection, repair or replacement service for products that are out of warranty, and will charge fees if these services are provided for out-of-warranty products.

  • Page 27: Gnu General Public License (Gpl) Disclosure

    End-User License Agreement (EULA) Software license terms and conditions 1. Generally. Transcend Information, Inc. ("Transcend") is willing to grant the following license to install or use the software and/or firmware (“Licensed Software”) pursuant to this End-User License Agreement (“Agreement”), whether provided separately or associated with a Transcend product (“Product”), to the original purchaser of the Product upon or with which the Licensed Software was installed or associated as of the time of purchase ("Customer") only if Customer accepts all of the terms and conditions of this Agreement.
  • Page 28 9. Termination. Transcend may, in addition to any other remedies available to Transcend, terminate this Agreement immediately if Customer breaches any of its obligations under this Agreement.
  • Page 29 (d) A waiver by either party of any term or condition of this Agreement or any breach thereof, in any one instance, will not waive such term or condition or any subsequent breach thereof. (e) Transcend may assign its rights under this Agreement without condition. (f) This Agreement will be binding upon and will...
