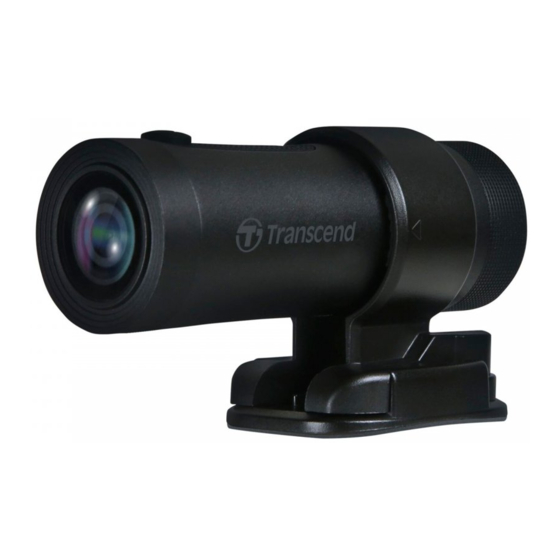

Transcend DrivePro 20 User Manual

Motorcycle dashcam
Hide thumbs Also See for DrivePro 20:
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual
Motorcycle Dashcam
DrivePro™ 20
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DrivePro 20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transcend DrivePro 20

Summary of Contents for Transcend DrivePro 20

  • Page 1 User’s Manual Motorcycle Dashcam DrivePro™ 20 Version 1.0...

  • Page 2: Table Of Contents

    Table of Contents 1. Package Contents 2. System Requirements 3. Getting Started 3-1 Overview 3-2 Inserting a microSD Memory Card 3-3 Mounting the DrivePro 3-4 Charging 3-5 Operation 3-6 LED Indicator 4. Recording Videos 4-1 Normal Recording 4-2 Emergency Recording Automatic Emergency Recording: 5.

  • Page 3: Package Contents

    1. Package Contents The DrivePro 20 dashcam package includes the following items: DrivePro 20 Camera holder Adhesive mounting base 32GB microSD card Quick Start Guide micro USB to USB Type-A power cable 2. System Requirements Desktop or Notebook computer together with a microSD card reader or an adapter.

  • Page 4: Getting Started

    3. Getting Started 3-1 Overview ① Power Button ④ Lens ⑦ micro USB Port ② LED Indicator ⑤ microSD Card Slot ⑧ Protective Case ③ Microphone ⑥ Reset Button ⑨ Lanyard Hole...

  • Page 5: Inserting A Microsd Memory Card

    Do not remove the memory card during a shutdown to avoid damages to the memory card and loss of recorded videos. DrivePro 20 can support FAT32 and exFAT file format, but not NTFS. The following table shows approximate recording time according to capacity and resolution...

  • Page 6: Mounting The Drivepro

    3-3 Mounting the DrivePro  NOTE Installation surface should first be cleaned and dried so 3M adhesive pad can be firmly attached. Avoid uneven surfaces. To separate mount and holder, press the holder and push it forward. The arrow symbol on the camera holder should point towards the lens. 3-4 Charging 1.

  • Page 7: Operation

    3-5 Operation Status Operation Vibration Turn on/off Long press Power Button for 3 s Vibration-short dashcam Turn on/off Wi- Press Power Button once Vibration-short In recording mode, long press Power Reset to default Vibration-long Button for 10 s Low battery Vibrate twice every 30 s Vibrate twice every 5 s and turn off...

  • Page 8: Recording Videos

    By default, one video file is saved for every 1 minute of recording. To adjust the recording length, please refer to the Settings section in this manual. When DrivePro 20 is fully charged, recording in 1080/60fps can last for 2.5 hours, while recording in 1080/30fps can last 3 hours. The actual recording time differs according to the recording condition.

  • Page 9: Using The Drivepro App

    5. Using the DrivePro App 5-1 Connecting to DrivePro App After downloading and installing the DrivePro App from the Google Play or App Store, 1. Tap Settings > Wi-Fi from your mobile device. 2. Select the Wi-Fi network with DP 20 in the SSID. (password is 12345678) 3.
  • Page 10 Video Length Set the recording length of each recorded video file. 1 min (default) / 3 mins / 5 mins Select the appropriate frequency to avoid flashing A/C light. Light Frequency 50Hz (default) / 60Hz Video Stamp Icon Feature Function/Option Display the current time of the video being recorded.
  • Page 11 The DrivePro will restart automatically after the upgrade is completed.  WARNING NEVER remove the power cord or the microSD memory card while the firmware is being upgraded. If the DrivePro cannot be turned on due to firmware upgrade failure, please contact Transcend customer service for technical support.

  • Page 12: Using The Drivepro Toolbox

    6. Using the DrivePro Toolbox 1. Download the installation files from https://www.transcend-info.com/Support/Software-180/ 2. Install DrivePro Toolbox software on your computer. 6-1 Toolbox Interface & Operation 6-1-1 Interface...

  • Page 13: Import Files And Review Snapshots (A)

    6-1-2 Import Files and Review Snapshots (A) When connecting the DrivePro to a Windows computer, the DrivePro Toolbox will automatically ask users whether to import the videos in the DrivePro. ① Tap **Import** to select the video files you wish to import; Tap **Snapshots** to open snapshot files.

  • Page 14: Video Editing, Snapshots, And Tools (B)

    6-1-3 Video Editing, Snapshots, and Tools (B) Video Icon Feature Description Snapshot Capture and save the snapshots in the video Trim Trim your video Sound Turn on/off the sound Full Screen Play video in full screen...

  • Page 15: Video Trimming

    6-1-4 Video Trimming Step 1: Enable clip mode Step 2: Specify the beginning of video clip...
  • Page 16 Step 3: Specify the end of video clip Step 4: Save the video clip...

  • Page 17: Preference Settings (C)

    3. Plug the large end of the cable into an available USB port on your computer. The DrivePro will display the following screen when connected to a computer. WARNING  DrivePro 20 package contains a USB cable. To prevent data loss, always follow the proper removal procedures when disconnecting the DrivePro from your computer.
  • Page 18 When the DrivePro is connected to a computer, it can only be used for transferring files. The DrivePro’s features are not available at this time. Please disconnect your DrivePro from the computer to resume normal function. NEVER use the “format” or “initialize disk” function while the DrivePro is connected to your computer, even if prompted to do so.

  • Page 19: Troubleshooting

    DrivePro for repair. If you cannot find an ideal solution to your question below, please consult your dealer, service center, or local Transcend branch office for further help. You can also visit the Transcend website for FAQ and Technical Support services (https://www.transcend-info.com/Support). For any hardware issues, please refer to the DrivePro User’s Manual.

  • Page 20: Safety Cautions

    User’s Manual of the computer or motherboard for USB driver information. 4. IP (Ingress Protection) 68 rating DrivePro 20 is backed by an international standard rating of IP68, able to withstand dust, dirt, splash or spray. Its protection against intrusions of solid objects/liquid does not mean invincible. The protection level may decrease as the device is used.
  • Page 21  DrivePro 20 is not resistant to liquid when the protective case is not tightened.

  • Page 22: Specifications

    9. Specifications DrivePro 20 Dimensions 90.2mm x 30mm x 30mm Weight 74g (2.6oz) Connect Interface USB2.0 microSD, 32GB/64GB/128GB/256GB Memory Card Supported memory card (Class 10 or above) Wi-Fi 802.11b/g/n Lens F/2.8, 140° (diagonal) MP4 (H.264: up to Video Formats 1920x1080 60fps)
  • Page 23 DrivePro 20 Note In addition to the bundled microSD card, we recommend Transcend’s High Endurance microSD cards or MLC-based memory cards to ensure the best recording performance. ● 32GB/64GB High Endurance microSDHC card (TS32GUSDHC10V/TS64GUSDXC10V) ● 64GB/128/256GB High Endurance microSDXC 350V card...

  • Page 24: Legal Compliance

    10. Legal Compliance 10-1 EU Compliance Statement Transcend Information hereby declares that all CE marked Transcend products incorporating radio equipment functionality are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.transcend-info.com/eu_compliance...
  • Page 25 CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

  • Page 26: Federal Communications Commission (Fcc) Statement

    Please visit www.transcend-info.com/warranty to view the Transcend Warranty Policy. By using the product, you agree that you accept the terms of the Transcend Warranty Policy, which may be amended from time to time. 10-5 GNU General Public License (GPL) Disclosure...

  • Page 27: End-User License Agreement (Eula)

    FITNESS FOR A PARTICULAR PURPOSE. The entire risk as to the quality and performance of the Licensed Software is with you. Transcend does not provide any support for the Licensed Software. The above license terms will control solely with respect to the open source components. In the event that this manual conflicts with the requirements of the above one or more terms with respect to the use of the...
  • Page 28 3. Intellectual Property Rights. As between Transcend and Customer, the copyright and all other intellectual property rights in the Licensed Software are the property of Transcend or its supplier(s) or licensor(s). Any rights not expressly granted in this License are reserved to Transcend.

  • Page 29: Eurasian Conformity Mark (Eac)

    Transcend. (b) Except to the extent applicable law, if any, provides otherwise, this Agreement will be governed by the law of the Republic of China, excluding its conflict of law provisions.
