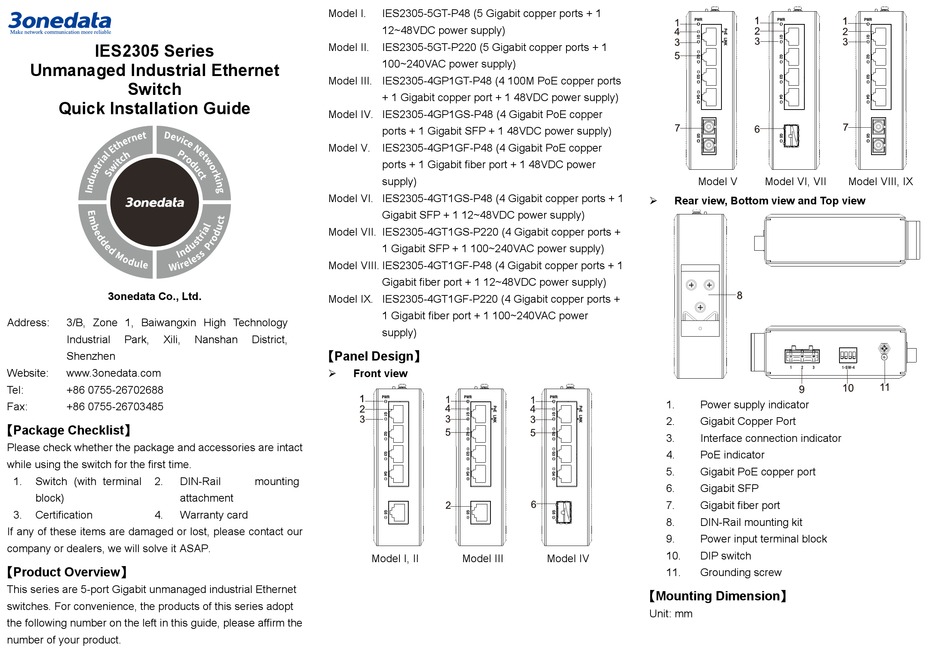

3onedata IES2305 Series Quick Installation Manual

IES2305 Series
Unmanaged Industrial Ethernet
Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485

【Package Checklist】

Please check whether the package and accessories are intact
while using the switch for the first time.
1. Switch (with terminal 2.
block)
3. Certification 4.
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

【Product Overview】

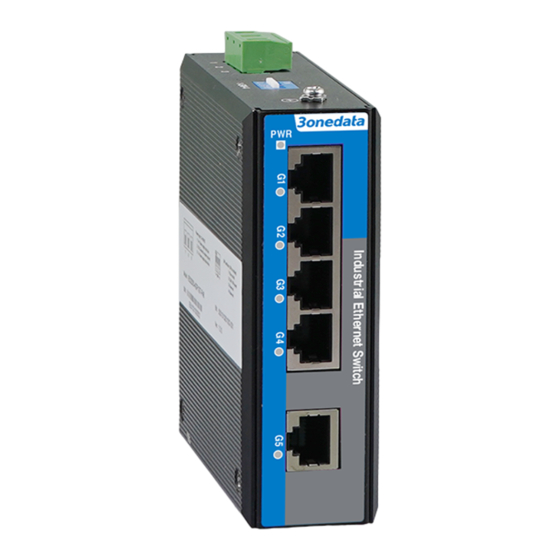

This series are 5-port Gigabit unmanaged industrial Ethernet
switches. For convenience, the products of this series adopt
the following number on the left in this guide, please affirm the
number of your product.
Model I.
Model II.
Model III. IES2305-4GP1GT-P48 (4 100M PoE copper ports
Model IV. IES2305-4GP1GS-P48 (4 Gigabit PoE copper
Model V.
Model VI. IES2305-4GT1GS-P48 (4 Gigabit copper ports + 1
Model VII. IES2305-4GT1GS-P220 (4 Gigabit copper ports +
Model VIII. IES2305-4GT1GF-P48 (4 Gigabit copper ports + 1
Model IX. IES2305-4GT1GF-P220 (4 Gigabit copper ports +
Nanshan District,

【Panel Design】

Front view

DIN-Rail mounting
attachment
Warranty card
IES2305-5GT-P48 (5 Gigabit copper ports + 1
12~48VDC power supply)
IES2305-5GT-P220 (5 Gigabit copper ports + 1
100~240VAC power supply)
+ 1 Gigabit copper port + 1 48VDC power supply)
ports + 1 Gigabit SFP + 1 48VDC power supply)
IES2305-4GP1GF-P48 (4 Gigabit PoE copper
ports + 1 Gigabit fiber port + 1 48VDC power
supply)
Gigabit SFP + 1 12~48VDC power supply)
1 Gigabit SFP + 1 100~240VAC power supply)
Gigabit fiber port + 1 12~48VDC power supply)
1 Gigabit fiber port + 1 100~240VAC power
supply)
Model I, II Model III Model IV
Model V Model VI, VII
Rear view, Bottom view and Top view

1. Power supply indicator
2. Gigabit Copper Port
3. Interface connection indicator
4. PoE indicator
5. Gigabit PoE copper port
6. Gigabit SFP
7. Gigabit fiber port
8. Din-Rail Mounting kit
9. Power input terminal block
10. DIP switch
11. Grounding screw

【Mounting Dimension】

Unit: mm
Model VIII, IX
