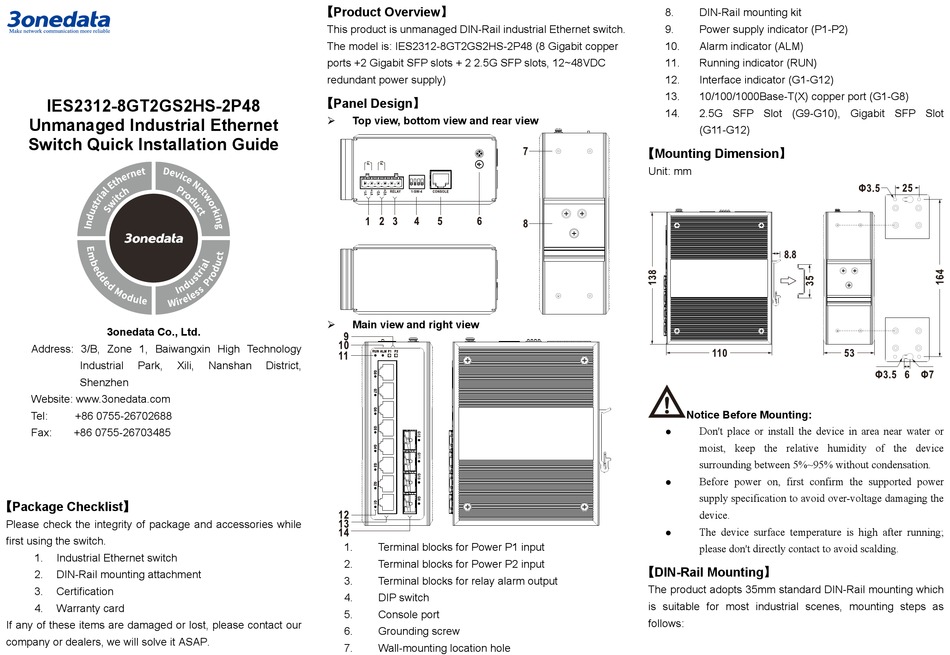

3onedata IES2312-8GT2GS2HS-2P48 Quick Installation Manual

IES2312-8GT2GS2HS-2P48
Unmanaged Industrial Ethernet
Switch Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch
2. DIN-Rail mounting attachment
3. Certification
4. Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This product is unmanaged DIN-Rail industrial Ethernet switch.
The model is: IES2312-8GT2GS2HS-2P48 (8 Gigabit copper
ports +2 Gigabit SFP slots + 2 2.5G SFP slots, 12~48VDC
redundant power supply)
【Panel Design】

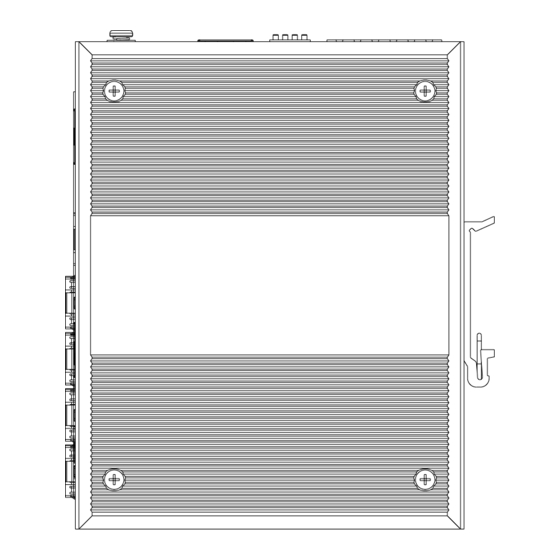

Top view, bottom view and rear view

Main view and right view

Nanshan District,
1. Terminal blocks for Power P1 input
2. Terminal blocks for Power P2 input
3. Terminal blocks for relay alarm output
4. DIP switch
5. Console port
6. Grounding screw
7. Wall-mounting location hole
8. DIN-Rail mounting kit
9. Power supply indicator (P1-P2)
10. Alarm indicator (ALM)
11. Running indicator (RUN)
12. Interface indicator (G1-G12)
13. 10/100/1000Base-T(X) copper port (G1-G8)
14. 2.5G SFP Slot (G9-G10), Gigabit SFP Slot
(G11-G12)
【Mounting Dimension】
Unit: mm
Notice Before Mounting:
Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.
【DIN-Rail Mounting】
The product adopts 35mm standard DIN-Rail mounting which
is suitable for most industrial scenes, mounting steps as
follows:
