Beckhoff EP1122-0001 Documentation

2-port ethercat junction
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Documentation | EN
EP1122-0001
2-port EtherCAT junction
2024-01-25 | Version: 1.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EP1122-0001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Beckhoff EP1122-0001

Summary of Contents for Beckhoff EP1122-0001

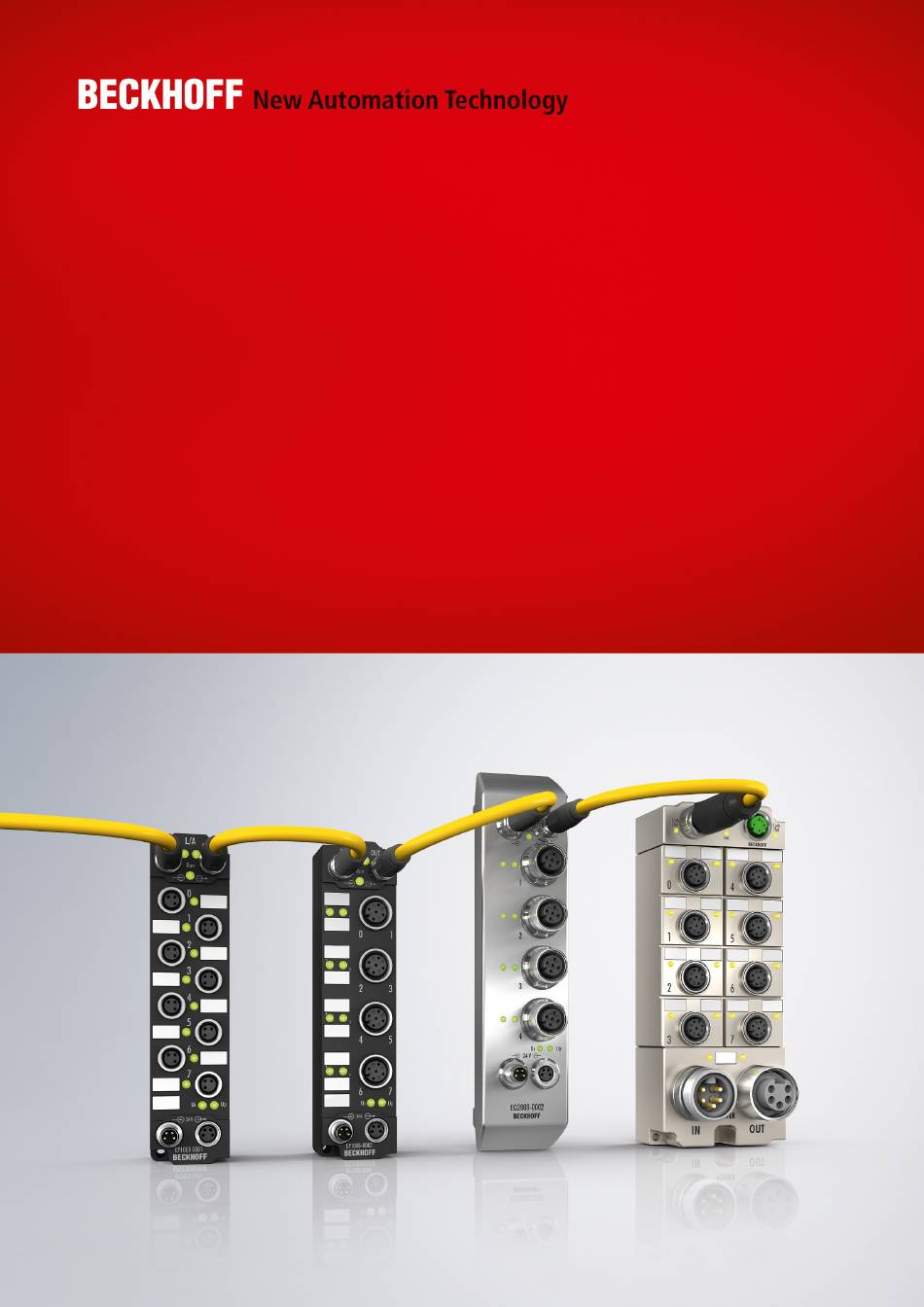

  • Page 1 Documentation | EN EP1122-0001 2-port EtherCAT junction 2024-01-25 | Version: 1.5...

  • Page 3: Table Of Contents

    Version identification of EtherCAT devices .................. 42 7.3.1 General notes on marking.................... 42 7.3.2 Version identification of IP67 modules ................ 43 7.3.3 Beckhoff Identification Code (BIC) ...................  44 7.3.4 Electronic access to the BIC (eBIC).................  46 Support and Service........................ 48 EP1122-0001 Version: 1.5...
  • Page 4 Table of contents Version: 1.5 EP1122-0001...

  • Page 5: Foreword

    , XTS and XPlanar are registered trademarks of and licensed by Beckhoff Automation GmbH. Other designations used in this publication may be trademarks whose use by third parties for their own purposes could violate the rights of the owners. Patent Pending...

  • Page 6: Safety Instructions

    All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. Personnel qualification This description is only intended for trained specialists in control, automation and drive engineering who are familiar with the applicable national standards.

  • Page 7: Documentation Issue Status

    YY - year of production 10 - year of production 2010 FF - firmware version 02 - firmware version 02 HH - hardware version 01 - hardware version 01 Further information on this topic: Version identification of EtherCAT devices [} 42]. EP1122-0001 Version: 1.5...

  • Page 8: Ethercat Box - Introduction

    • digital outputs with 0.5 or 2 A output current • analog inputs and outputs with 16 bit resolution • Thermocouple and RTD inputs • Stepper motor modules XFC (eXtreme Fast Control Technology) modules, including inputs with time stamp, are also available. Version: 1.5 EP1122-0001...
  • Page 9 Fig. 3: EtherCAT Box with M12 connections for sensors/actuators Basic EtherCAT documentation You will find a detailed description of the EtherCAT system in the Basic System Documentation for EtherCAT, which is available for download from our website (www.beckhoff.com) under Downloads. EP1122-0001 Version: 1.5...

  • Page 10: Product Overview

    Product overview Product overview Product Description 2-port EtherCAT junction EP1122-0001 [} 11] 2-port EtherCAT junction with Fast Hot Connect EP1122-8001 [} 12] Version: 1.5 EP1122-0001...
  • Page 11 M8 sockets with direct display of link and activity status. The Run LED indicates the status of the EP1122-0001. Through TwinCAT and other suitable EtherCAT masters the EP1122-0001 also supports coupling and uncoupling of EtherCAT segments during operation (Hot Connect).
  • Page 12 The EK1122-0080 EtherCAT junction with Fast Hot Connect should be used to set up a star topology in the control cabinet. The two lower ports are standard ports. Quick links Technical data [} 13] Connections [} 27] EtherCAT system documentation for more information on Fast Hot Connect. Version: 1.5 EP1122-0001...

  • Page 13: Technical Data

    Product overview Technical data All values are typical values over the entire temperature range, unless stated otherwise. EtherCAT EP1122-0001 EP1122-8001 Connection 4 x M8 socket, 4-pin, A-coded, shielded (1 input, 3 outputs) Data transfer medium EtherCAT cables Cable length up to 100 m between two devices (100BASE-TX) Baud rate 100 MBaud...
  • Page 14 Product overview Test Explanation Vibration 10 frequency sweeps in 3 axes 5 Hz < f < 60 Hz displacement 0.35 mm, constant amplitude 60.1 Hz < f < 500 Hz acceleration 5 g, constant amplitude Shocks 1000 shocks in each direction, in 3 axes 35 g, 11 ms Version: 1.5 EP1122-0001...

  • Page 15: Scope Of Supply

    Pre-assembled protective caps do not ensure IP67 protection Protective caps are pre-assembled at the factory to protect connectors during transport. They may not be tight enough to ensure IP67 protection. Ensure that the protective caps are correctly seated to ensure IP67 protection. EP1122-0001 Version: 1.5...

  • Page 16: Technology

    Product overview Technology 3.5.1 EtherCAT data flow The following figure shows the logical path of an EtherCAT frame through the box. Ports to which no device is connected are automatically bridged. Version: 1.5 EP1122-0001...

  • Page 17: Basic Function Principles Of Ethercat Junctions

    Basic function principles of EtherCAT junctions Basic function principles of EtherCAT junctions Some Beckhoff EtherCAT devices can be used for junctions in the EtherCAT segment. These include EK1122, EK1521, EP1122, CU1128 and EP9128. In the following examples only the EK1122 is used. The technical and system characteristics of the other devices are similar.
  • Page 18 100 µs cycle time. Nevertheless, at least one lost frame can never be ruled out if a connection is disconnected while an Ethernet frame is in transit on this line and in the bus segment downstream of the separation point. Version: 1.5 EP1122-0001...
  • Page 19 Basic function principles of EtherCAT junctions Implementation: EL terminal A standard EtherCAT slave  such as a Beckhoff EL terminal has 2 ports: • one for incoming frames (port 0 [A]) • one for outgoing frames (e.g. port [D]). The other two ports are internally closed in the ESC. An EtherCAT telegram enters the processing unit via port 0 (A)/top and is forwarded to the next slave via port 3 (D)/left, if a link to this port exists - see green arrows.
  • Page 20 The wiring diagram is shown in the TwinCAT online topology, see Fig. Online topology. The EK1122 is selected, so that further information is shown. The green bars above the slaves indicate the correct RUN state in all slaves. Version: 1.5 EP1122-0001...
  • Page 21 This has the effect that the next incoming EtherCAT telegram is immediately forwarded to port D (port 3) and the EL4732. The link is missing here; the System Manager indicates this in the online display, see Fig. Example configuration with interrupted cable. EP1122-0001 Version: 1.5...
  • Page 22 The logger output can be displayed in the lower part of the System Manager (Display--> Show Logger Output). This may be helpful for diagnostic purposes (for link interruptions and other situations). In the topology view this interruption is indicated by a red border around the affected slaves, see figure below. Version: 1.5 EP1122-0001...
  • Page 23 - all slaves are operating properly. The image on the right shows a significant increase (currently 77 acyclic frames/sec): The EtherCAT master has quickly detected that not all slaves are properly taking part in the data exchange. Once the master has located the fault, it continuously tries to restore the connection. EP1122-0001 Version: 1.5...
  • Page 24 ADS (see figures on this page). System Manager functions can also be triggered via PLC or ADS. Please refer to the relevant sections in the Beckhoff Information System and the notes on EtherCAT diagnostics.

  • Page 25: Mounting And Connection

    CuZn, gold-plated Power feed through max. 4 A Installation position variable Protection class IP65, IP66, IP67 (conforms to EN 60529) when screwed together Dimensions (H x W x D) approx. 126 x 30 x 26.5 mm (without connectors) EP1122-0001 Version: 1.5...

  • Page 26: Fixing

    Dirty connectors can lead to malfunctions. Protection class IP67 can only be guaranteed if all cables and connectors are connected. • Protect the plug connectors against dirt during the assembly. Mount the module with two M3 screws on the mounting holes in the corners of the module. The mounting holes have no thread. Version: 1.5 EP1122-0001...

  • Page 27: Connection

    EtherCAT downstream connection [} 30] with Fast Hot Connect, port C M8 plug 0.4 Nm Supply voltage input [} 31] connector M8 socket 0.4 Nm Supply voltage downstream connection [} 31] Mount plugs on these connectors using a torque wrench, e.g. ZB8801 from Beckhoff. EP1122-0001 Version: 1.5...

  • Page 28: Ethercat

    For standardization, the core colors of the ZB9030, ZB9032 and ZK1090-3xxx-xxxx cables have been changed to the EN61918 core colors: yellow, orange, white, blue. So there are different color codes in circulation. The electrical properties of the cables have been retained when the core colors were changed. Version: 1.5 EP1122-0001...
  • Page 29 (CAT5) according to EN 50173 or ISO/IEC 11801 should be used. EtherCAT uses four wires for signal transmission. Thanks to automatic line detection ("Auto MDI-X"), both symmetrical (1:1) or cross-over cables can be used between Beckhoff EtherCAT. Detailed recommendations for the cabling of EtherCAT devices EP1122-0001...

  • Page 30: Ethercat With Fast Hot Connect (Ep1122-8001 Only)

    Accessories [} 41] are suitable uncrossed cables. Fast Hot Connect inputs and Fast Hot Connect outputs are assigned in such a way that the signals are automatically connected correctly if you use an uncrossed cable. Version: 1.5 EP1122-0001...

  • Page 31: Supply Voltages

    In some types of EtherCAT Box modules the ground potentials GND and GND are connected. • If several EtherCAT Box modules are supplied with the same electrically isolated voltages, check whether there is an EtherCAT Box among them in which the ground potentials are connected. EP1122-0001 Version: 1.5...
  • Page 32 Control voltage Brown Peripheral voltage White GND to U Blue GND to U Black The core colors apply to cables of the type: Beckhoff ZK2020-3xxx-xxxx 5.3.4.2 Status LEDs Display Meaning (control voltage) The supply voltage U is not available. green illuminated The supply voltage U is available.
  • Page 33 Vert. Faktor: 0,45 cm / V Vert. Faktor: 0,4 0.34 mm² Vert. Faktor: 0,45 cm / V Vert. Faktor: 0.5 mm² 0.25 mm² 0.34 mm² 0.75 mm² 0.5 mm² 0.75 mm² Cable length (m) Cable length (m) EP1122-0001 Version: 1.5...

  • Page 34: Ul Requirements

    To meet the UL requirements, EtherCAT Box Modules has to be operated only at an ambient temperature range of -25 °C to +55 °C! Marking for UL All EtherCAT Box Modules certified by UL (Underwriters Laboratories) are marked with the following label. Fig. 14: UL label Version: 1.5 EP1122-0001...

  • Page 35: Atex Notes

    FF - firmware version HH - hardware version Example with batch number 29 10 02 01: 29 - week of production 29 10 - year of production 2010 02 - firmware version 02 01 - hardware version 01 EP1122-0001 Version: 1.5...

  • Page 36: Bg2000 - Ethercat Box Protection Enclosures

    EtherCAT Box. Installation Put the cables for EtherCAT, power supply and sensors/actuators through the hole of the protection enclosure. Fig. 15: BG2000 - putting the cables Fix the wires for EtherCAT, power supply and sensors/actuators to the EtherCAT Box. Version: 1.5 EP1122-0001...

  • Page 37: Atex Documentation

    Notes about operation of EtherCAT Box Modules (EPxxxx-xxxx) in potentially explosive areas (ATEX) Pay also attention to the continuative documentationNotes about operation of EtherCAT Box Modules (EPxxxx-xxxx) in potentially explosive areas (ATEX) that is available in the download area of the Beckhoff homepage http:\\www.beckhoff.com! EP1122-0001 Version: 1.5...

  • Page 38: Disposal

    Products marked with a crossed-out wheeled bin shall not be discarded with the normal waste stream. The device is considered as waste electrical and electronic equipment. The national regulations for the disposal of waste electrical and electronic equipment must be observed. Version: 1.5 EP1122-0001...

  • Page 39: Commissioning

    The procedure for integration in a TwinCAT project is described in these Quick start guide. The designations of the EtherCAT ports are different in TwinCAT than on the imprint on the housing. You can find the correlation between the different designations in the Connection overview [} 27]. EP1122-0001 Version: 1.5...

  • Page 40: Appendix

    (ph value > 12) unstable > 40 °C Acetic acid unstable Argon (technically pure) stable • resistant: Lifetime several months • non inherently resistant: Lifetime several weeks • not resistant: Lifetime several hours resp. early decomposition Version: 1.5 EP1122-0001...

  • Page 41: Accessories

    ZB8801-0000 Torque wrench for plugs, 0.4…1.0 Nm ZB8801-0001 Torque cable key for M8 / wrench size 9 for ZB8801-0000 Further accessories Further accessories can be found in the price list for fieldbus components from Beckhoff and online at https://www.beckhoff.com. EP1122-0001 Version: 1.5...

  • Page 42: Version Identification Of Ethercat Devices

    Associated and synonymous with each revision there is usually a description (ESI, EtherCAT Slave Information) in the form of an XML file, which is available for download from the Beckhoff web site. From 2014/01 the revision is shown on the outside of the IP20 terminals, see Fig. “EL5021 EL terminal, standard IP20 IO device with batch number and revision ID (since 2014/01)”.

  • Page 43: Version Identification Of Ip67 Modules

    Version identification of IP67 modules The serial number/ data code for Beckhoff IO devices is usually the 8-digit number printed on the device or on a sticker. The serial number indicates the configuration in delivery state and therefore refers to a whole production batch, without distinguishing the individual modules of a batch.

  • Page 44: Beckhoff Identification Code (Bic)

    7.3.3 Beckhoff Identification Code (BIC) The Beckhoff Identification Code (BIC) is increasingly being applied to Beckhoff products to uniquely identify the product. The BIC is represented as a Data Matrix Code (DMC, code scheme ECC200), the content is based on the ANSI standard MH10.8.2-2016.
  • Page 45 Fig. 20: Example DMC 1P072222SBTNk4p562d71KEL1809 Q1 51S678294 An important component of the BIC is the Beckhoff Traceability Number (BTN, position 2). The BTN is a unique serial number consisting of eight characters that will replace all other serial number systems at Beckhoff in the long term (e.g.

  • Page 46: Electronic Access To The Bic (Ebic)

    Electronic access to the BIC (eBIC) Electronic BIC (eBIC) The Beckhoff Identification Code (BIC) is applied to the outside of Beckhoff products in a visible place. If possible, it should also be electronically readable. Decisive for the electronic readout is the interface via which the product can be electronically addressed.
  • Page 47 • For processing the BIC/BTN data in the PLC, the following auxiliary functions are available in Tc2_Utilities from TwinCAT 3.1 build 4024.24 onwards ◦ F_SplitBIC: The function splits the Beckhoff Identification Code (BIC) sBICValue into its components based on known identifiers and returns the recognized partial strings in a structure ST_SplitBIC as return value.

  • Page 48: Support And Service

    Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages: www.beckhoff.com You will also find further documentation for Beckhoff components there.
