- Page 1 Operating manual | EN EPX1058-0022 Eight channel, digital EtherCAT Box for NAMUR sensors, Ex i 2023-01-09 | Version: 1.0.0...
-
Page 3: Table Of Contents
Documentation Issue Status ...................... 7 Marking of EPX modules........................ 8 2 Product overview ............................ 10 EPX1058-0022 - Introduction ...................... 10 EPX1058-0022 - Technical data ..................... 11 Intended use ........................... 13 3 Mounting and connection........................ 14 Special conditions for EPX EtherCAT Box modules ............... 14 Installation notes for EPX EtherCAT Box Modules ................. - Page 4 Table of contents Version: 1.0.0 EPX1058-0022...
-
Page 5: Foreword
, XTS and XPlanar are registered trademarks of and licensed by Beckhoff Automation GmbH. Other designations used in this publication may be trademarks whose use by third parties for their own purposes could violate the rights of the owners. Patent Pending... -
Page 6: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. Personnel qualification This description is only intended for trained specialists in control, automation and drive engineering who are familiar with the applicable national standards. -
Page 7: Documentation Issue Status
• Chapter Mounting and connection updated • Product images updated • Chapter Marking of EPX modules updated • Product overview updated • Technical data updated • Mounting and connection updated • New title page • First draft EPX1058-0022 Version: 1.0.0... -
Page 8: Marking Of Epx Modules
• Beckhoff Traceability Number, or BTN for short (as a serial number it clearly identifies each module) Date code The date code is an eight-digit number given by Beckhoff and printed on the EPX module. The date code indicates the build version in the delivery state and thus identifies an entire production batch but does not distinguish between the modules in a batch. -
Page 9: Fig. 1 Side Name Plate Of Epx1058-0022, Epx3158-0022 And Epx3184-0022
II 3 (1) D Ex tc [ia Da] IIIC T135°C Dc I (M1) [Ex ia Ma] I IECEx BVS 22.0043X BVS 22 ATEX E 047 X Ta: -25 … +70 °C Examples Fig. 1: Side name plate of EPX1058-0022, EPX3158-0022 and EPX3184-0022 EPX1058-0022 Version: 1.0.0... -
Page 10: Product Overview

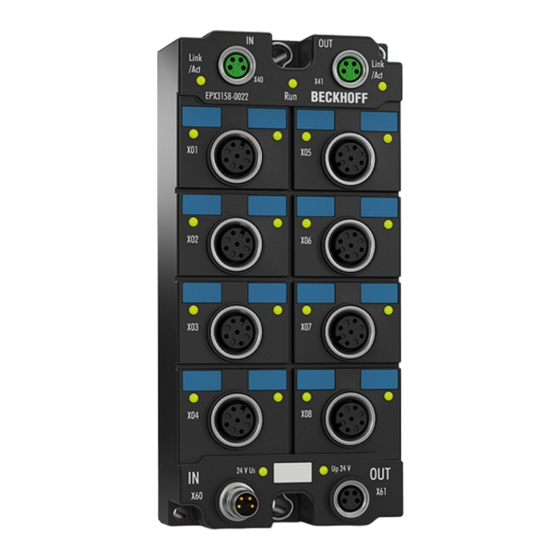

Fig. 2: EPX1058-0022 - 8-channel digital EtherCAT Box for NAMUR sensors, Ex i The EPX1058-0022 digital EtherCAT Box allows the direct connection of intrinsically safe NAMUR field devices from hazardous areas of zones 0/20 and 1/21 and acquires their signals according to IEC 60947-5-6. -
Page 11: Epx1058-0022 - Technical Data
Product overview EPX1058-0022 - Technical data EtherCAT EPX1058-0022 Connection 2x M8 socket, 4-pin, green Supply voltage EPX1058-0022 Connection Input M8 connector, 4-pin, black Downstream M8 socket, 4-pin, black connection nominal voltage 24 V (-15 % / +20 %) current consumption typically 40 mA sum current: I max. - Page 12 Product overview Approvals EPX1058-0022 Approvals / markings* CE, UL, ATEX, IECEx *) Real applicable approvals/markings see type plate on the side (product marking). Technical data for explosion protection EPX1058-0022 Ex marking II 3 (1) G Ex ec [ia Ga] IIC T4 Gc II 3 (1) D Ex tc [ia Da] IIIC T135°C Dc...
-
Page 13: Intended Use
Any infringement can damage the EPX EtherCAT Box Modules and thus eliminate the explosion protection. CAUTION Ensure traceability! The buyer has to ensure the traceability of the device via the Beckhoff Traceability Number (BTN). EPX1058-0022 Version: 1.0.0... -
Page 14: Mounting And Connection
Special conditions for EPX EtherCAT Box modules WARNING Observe the special conditions for the intended use of Beckhoff EPX EtherCAT Box mod- ules in hazardous areas (ATEX Directive 2014/34/EU)! • The connection points are to be protected by a modification in such a way that a protection against me- chanical danger is guaranteed! •... - Page 15 [} 9]. Observe the polarity dependency of connected intrinsically safe circuits, if applicable! WARNING Observe the minimum distances according to IEC 60079-14! Also observe the specified minimum distances between intrinsically safe and non-intrinsically safe circuits according to IEC 60079-14! EPX1058-0022 Version: 1.0.0...
-
Page 16: Mounting
Polyurethane Mounting two mounting holes Ø 4.5 mm for M4 Metal parts brass, nickel-plated Contacts CuZn, gold-plated Installation position variable Protection rating IP65, IP66, IP67 (conforms to EN 60529) when screwed together Dimensions (H x W x D) approx. 126 x 60 x 26.5 mm (without connectors) Version: 1.0.0 EPX1058-0022... -
Page 17: Functional Earth (Fe)
Products marked with a crossed-out wheeled bin shall not be discarded with the normal waste stream. The device is considered as waste electrical and electronic equipment. The national regulations for the disposal of waste electrical and electronic equipment must be observed. EPX1058-0022 Version: 1.0.0... -
Page 18: Connection
The specified tightening torque must be observed in order to be allowed to use the product in the haz- ardous area! • Mount plugs and protective caps on these connectors with a torque wrench; e.g. Beckhoff ZB8801. • Ensure the correct seating and tightening torque of pre-assembled protective caps. Protective caps are pre-assembled at the factory to protect connectors during transport. -
Page 19: Ethercat
For standardization, the core colors of the ZB9030, ZB9032 and ZK1090-3xxx-xxxx cables have been changed to the EN 61918 core colors: yellow, orange, white, blue. So there are different color codes in circulation. The electrical properties of the cables have been retained when the core colors were changed EPX1058-0022 Version: 1.0.0... -
Page 20: Fig. 8 Ethercat - Status Leds
EtherCAT system documentation For further information on EtherCAT states etc. please refer to the EtherCAT system docu- mentation, which is also available from the Beckhoff homepage on the product page of your EtherCAT device under Documentation and Downloads / Technical Documentation. -
Page 21: Power Supply
Fig. 10: Connector of the power supply - pin assignment Contact Function Description Core color Control voltage brown Peripheral voltage white GND to U blue GND to U black *) The core colors apply to cables of type: Beckhoff ZK2020-3xxx-xxxx EPX1058-0022 Version: 1.0.0... -
Page 22: Fig. 11 Status Leds For The Supply Voltages
Take into account the voltage drop on the supply line when planning a system. Avoid the voltage drop being so high that the supply voltages at the box lies below the minimum nominal voltage. Fig. 12: Voltage drop on the supply line Voltage fluctuations of the power supply unit must also be taken into account. Version: 1.0.0 EPX1058-0022... -
Page 23: Signal Inputs
3.4.4.2 Operation modes and LED displays The EtherCAT Box EPX1058-0022 has four operation modes which can be selected channel by channel in the CoE via the object Input Type (Index 0x80nD:11). In addition, individual channels can be switched off (Channel disabled). -
Page 24: Shielding And Potential Separation
Operation mode Dry Contact NC (normally closed) Input Error Meaning Sensor on channel in conductive state Sensor on channel in blocking state 3.4.5 Shielding and potential separation Shielding Encoder, analog sensors and actors should always be connected with shielded, twisted paired wires! Version: 1.0.0 EPX1058-0022... - Page 25 Mounting and connection CAUTION Observe installation requirements in areas of potentially explosive atmospheres! During installation, observe the requirements for cables, shielding and earth potential equalization in areas of potentially explosive atmospheres according to IEC 60079-11, IEC 60079-14 and IEC 60079-25! EPX1058-0022 Version: 1.0.0...
-
Page 26: Appendix
The modules are intended for use with Beckhoff’s UL Listed EtherCAT System only. Examination For cULus examination, the Beckhoff I/O System has only been investigated for risk of fire and elec- trical shock (in accordance with UL508 and CSA C22.2 No. 142). -
Page 27: Support And Service
Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages: https://www.beckhoff.com You will also find further documentation for Beckhoff components there. - Page 28 Table of figures Fig. 1 Side name plate of EPX1058-0022, EPX3158-0022 and EPX3184-0022 ........Fig. 2 EPX1058-0022 - 8-channel digital EtherCAT Box for NAMUR sensors, Ex i ......Fig. 3 EPX EtherCAT Box - Dimensions ....................Fig. 4 EPX EtherCAT Box - Functional earth via the fastening holes ............
