Evaluation Board User Guide
Use four screws (PN 010440CD125) to secure the fan onto the standoffs. Then, attach the black wire of the fan to FAN_GND
5.
and attach the red wire of the fan to FAN_VCC of the female connector P11. See
Secure the four plastic standoffs (PN 1902C) to the back of the board with four plastic screws (PN NY PMS 440
6.
0025 PH), as seen in
analog.com
Arrow.com.
Downloaded from

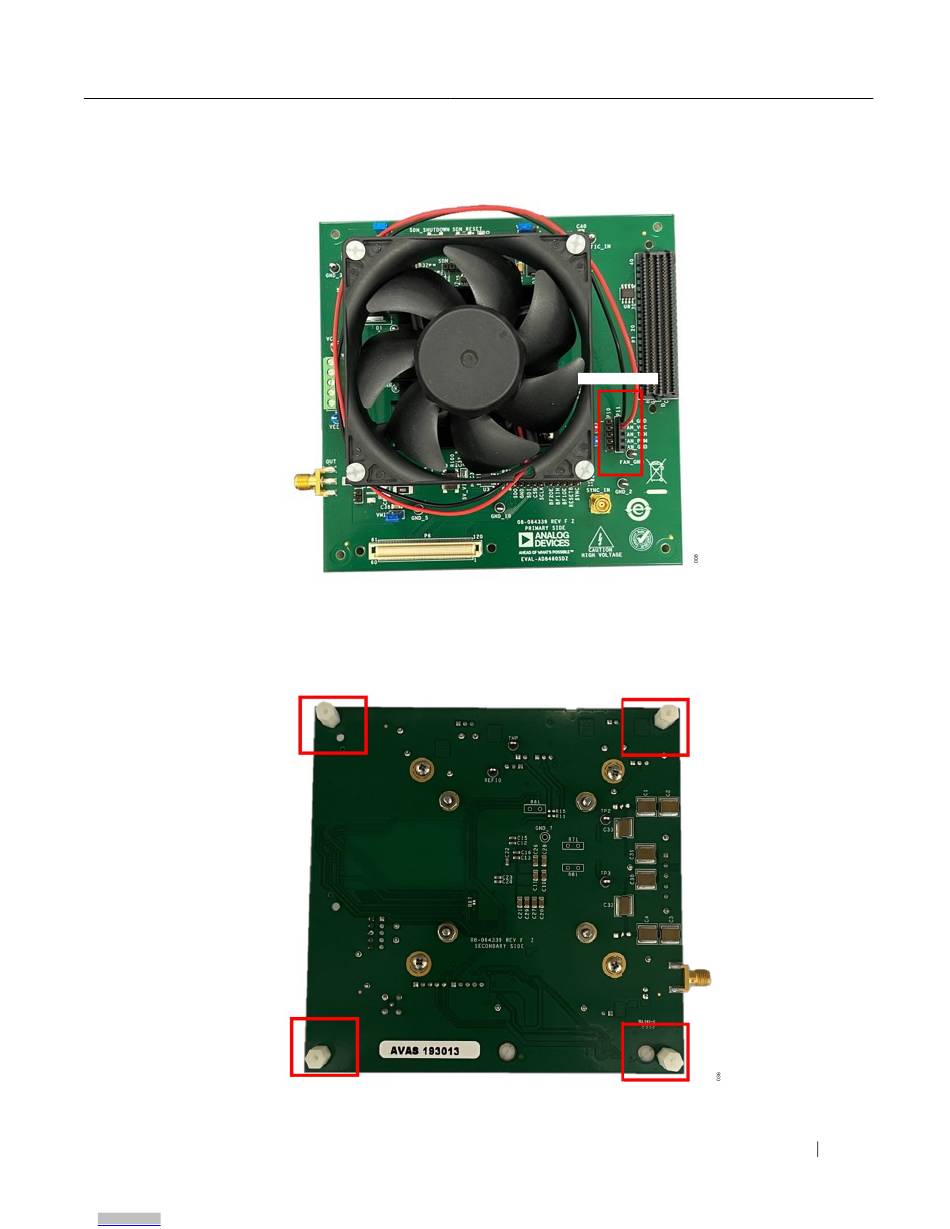

Figure 9. AD8460 Evaluation Board with Fan Attached
Figure
10.
Figure 10. Back of Evaluation Board with Plastic Standoffs
AD8460
Figure
11.
FAN CONNECTION
Rev.0
6 of 31
