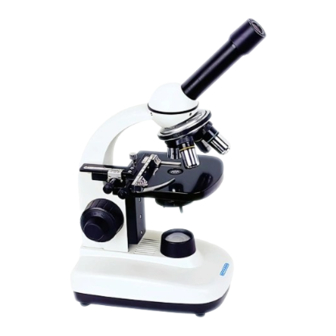

MODEL A11.1123 BIOLOGICAL MICROSCOPE
This information manual will identify, in a general way, the various parts and
functions 800X Biological microscope. It is intended to familiarize the first time user with
their instrument.
These microscope are ruggedly built for classroom and laboratory use. The
instruments feature fully-coated achromatic optics and international standard DIN
objectives and eyepieces. Optically, they are excellent systems with good resolution,
centering, and paragon features. Mechanical movements are smooth and positive.
Mechanical stage, and rack stop serve to minimize damage.
SPECIFICATIONS
Viewing Head: Monocular Head Inclined at 30* .
Eyepiece: WF10X.,20X
Mechanical stage size: 90mm x 90mm.Condenser: N.A.0.65 with Iris diaphragm
Objective: 4X,10X,40X
Focusing: coarse focus adjustment
Illumination: LED Illumination
SET-UP
1. GETTING THE MICROSCOPE READY FOR USE
First, familiarize yourself both visually and physically with the machanical parts of
your microscope. Gently operate each part by hand(no tools required) to see how it
behaves and what result it produces.
2.
MOUNTING THE OBJECTIVE AND EYEPIECE
To put the eyepiece in place simply slide it into the eyepiece tube. The
objective lenses screw
are already mounted in the nosepiece, check to see if they are tightly in
place. To do this, grip the knurled ring on the objectives with your finger
www.cnoec.com.cn
into the rotating nosepiece.
Page 1 of 3
If the four objectives
