- Page 1 A11.1007 Biological Microscope Instruction Manual To ensure the safety and obtain satisfactory performance, please study this instruction manual thoroughly before start to use your instrument.

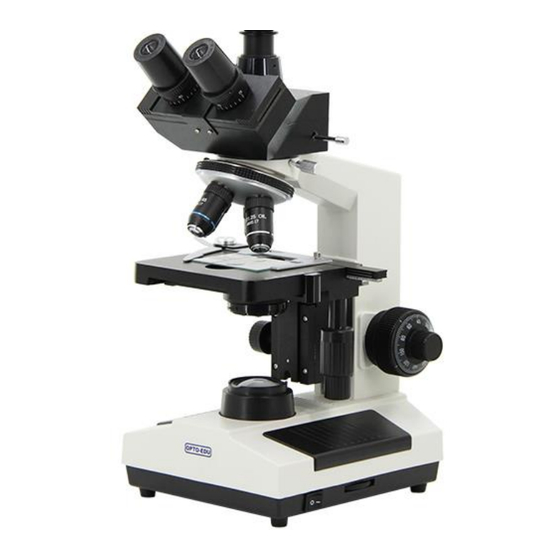

- Page 2 I. Application A11.1007 microscope has modern frame and can fit 45° inclined monocular, binocular, trinocular head on it. Double layer mechanical stage with adjustable long handle and coaxial coarse/fine focus knob make the operation easily. It is also provided with high quality achromatic objectives, wide field eyepieces and LED lamp adjustable brightness, which guarantee the best image.
- Page 3 III. Structure (showed as diagram) A11.1007 microscope is composed of nine main component parts: 1. Stand: It’s the base bearing total weight of microscope, which built in illumination system, electronic parts and connecting control. 2. Rise and fall support: It connects with stage, arm and condenser. Stage and condenser can move vertically through it for proper operation.
- Page 4 6. When the lamp needs to replace, you should shut off the power switch and replace it after the lamp is cool. NOTE: The contact must be firmed, and the filament center should be adjusted. A11.1007 Microscope Structure Diaphragm 1-STAND 2- RISE AND FALL SUPPORT 3- ARM 4-BINOCULAR HEAD 5-EYEPIECE 6-NOSEPIECE 7-OBJECTIVE 8-STAGE 9-CONDENSER V.
- Page 5 5. Please send the instrument to the special repair shop if it goes out of order. 6. When the objectives and eyepieces won’t be used for a long time, please place them into a dry box , and put the dust cover onto the microscope. VI. Standard Outfit of A11.1007 Biological Microscope ● Objective 4X, 10X, 40(S), 100X(S, Oil) ●...
