CableCover F55 • Setup Guide

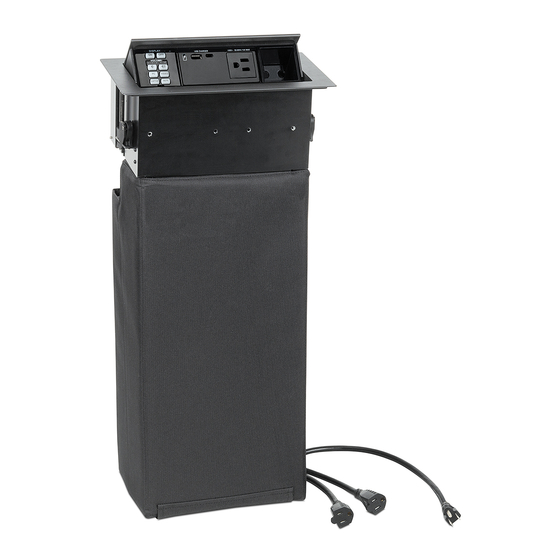

The Extron CableCover F55 mounts to the bottom of select Cable Cubby F55 enclosures to
minimize cable tangles and accidental disconnections, and improve cable management. Follow
the instructions below to attach and set up the CableCover F55.
Locating the Mounting Holes
Compatible Cable Cubby F55 enclosures have
seven mounting holes at the bottom to secure
the CableCover pins.
The mounting hole locations are shown below.
Cable Cubby F55
Bottom View
Installing the CableCover F55
Mounting Hole
Table
Cable Cubby F55
Rear View
1
CableCover F55
NOTE: Before inserting the CableCover
pins into the enclosure, make sure the
pins are in the unlocked position so
they can fit into the mounting holes.
UNLOCKED
LOCKED
If a pin is locked, pull the plunger
downward to unlock it.
1
Insert each pin into its
corresponding mounting hole
and push in the plunger to
secure it in place.
Plunger
1
