Air Lift
1000

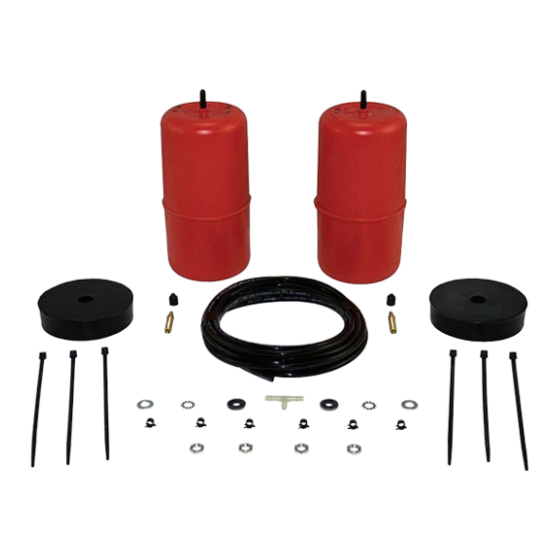

Kit 60739
91-96 Toyota Previa
INSTALLATION GUIDE
For maximum effectiveness and safety,
please read these instructions completely
before proceeding with installation.
Failure to read these instructions can result in an
incorrect installation.
Cover
illustration
may not depict
actual kit.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Air Lift 60739
Summary of Contents for Air Lift 60739

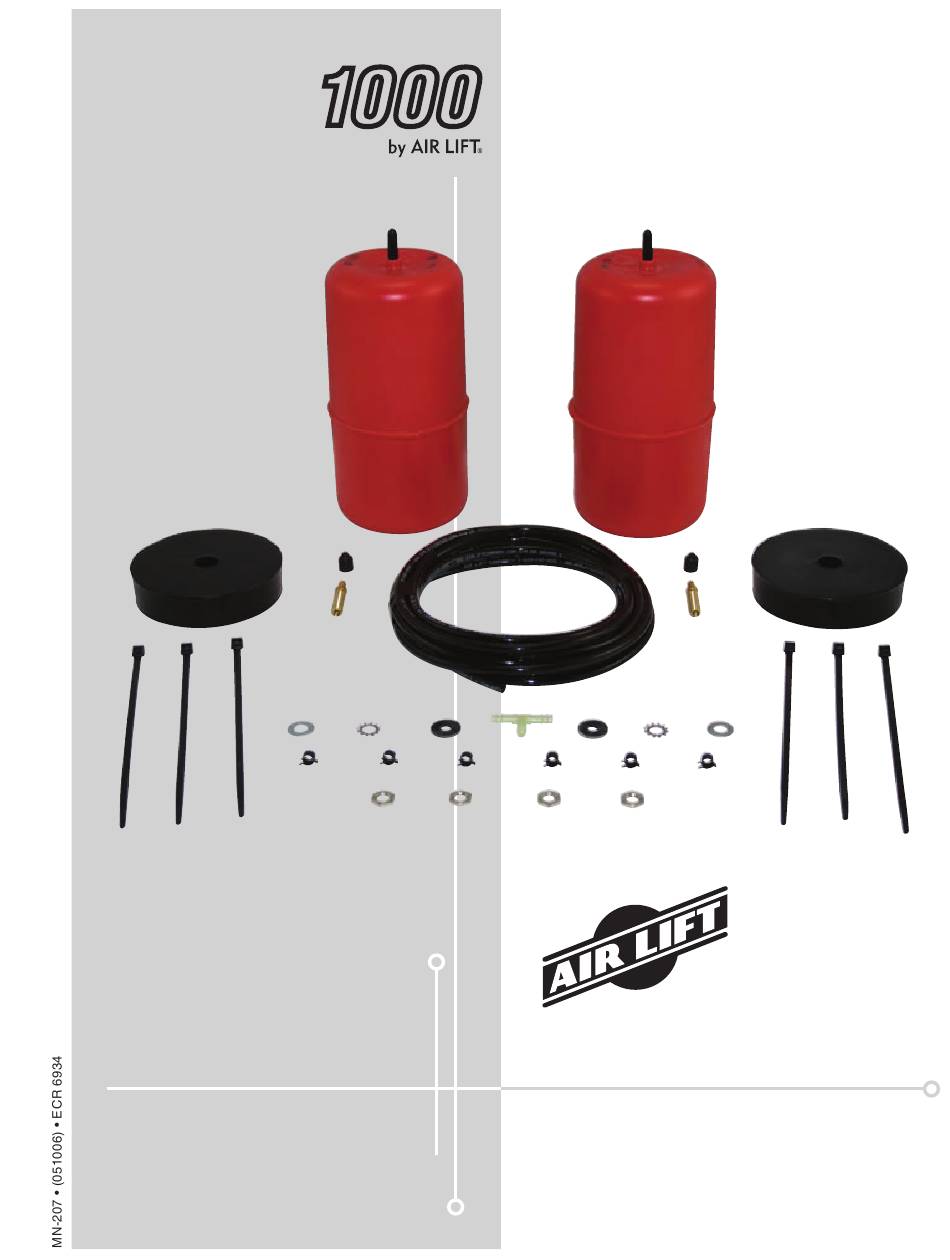

- Page 1 Kit 60739 1000 Air Lift 91-96 Toyota Previa Cover illustration may not depict actual kit. INSTALLATION GUIDE For maximum effectiveness and safety, please read these instructions completely before proceeding with installation. Failure to read these instructions can result in an...
-
Page 3: Table Of Contents
Notation Explanation ..........2 Installing the Air Lift 1000 System ..... 3 Getting Started . -
Page 4: Introduction
Air Lift Company reserves the right to make changes and improvements to its products and publications at any time. For the latest version of this manual, contact Air Lift Company at (800) 248-0892 or visit our website at www.airliftcompany.com. -
Page 5: Installing The Air Lift 1000 System
1. Carefully lower axle or raise body of car until suspension is fully extended. FORWARD 2. Remove plastic cap and flatten the Air Lift air cylinder by hand, then replace the plastic cap. 3. Insert the air cylinder into the coil with the valve stem at the top. -
Page 6: Tee Air Line Routing
Air Lift 1000 Tee air line installation recommended unless weight in vehicle varies from one side to the other and unequal pressures are needed to level the load. Dual air lines are used in this case. TEE AIR LINE ROUTING... -
Page 7: Dual Air Line Routing
If heat shield is Figure 5 provided, install it. Air Lift 1000 NOTE: Attach shock absorbers if removed earlier in the installation. N. Continue with step 8 on page 1. NOTE DO NOT INFLATE AIR CYLINDERS BEFORE READING MAINTENANCE/OPERATION TIPS. - Page 8 Air Lift 1000 fig. 9 Good Cut Poor Cut WHEN CUTTING OR TRIMMING THE AIR LINE, USE A HOSE CUTTER, A RAZOR BLADE, CAUTION OR A SHARP kNIFE. A CLEAN, SqUARE CUT WILL ENSURE AGAINST LEAkS. DO NOT USE WIRE CUTTERS OR SCISSORS TO CUT THE AIR LINE. THESE TOOLS MAY FLATTEN OR CRIMP THE AIR LINE CAUSING IT TO LEAk AROUND THE O-RING SEAL INSIDE THE ELBOW FITTING (FIG.
-
Page 9: Installing The Heat Shield
DO NOT CUT OFF THE AIR LINE COMPLETELY AS THIS WILL USUALLY NICk THE CAUTION BARB AND RENDER THE FITTING USELESS. 3. If the preceding steps have not resolved the problem, call Air Lift customer service at (800) 248-0892. MN-207... -
Page 10: Before Operating
If a heat shield was included in the kit, install it. If there is no heat shield, but one is required, call Air Lift customer service at (800) 248-0892. Fastener test — Recheck all bolts for proper torque. -
Page 11: Product Use, Maintenance And Servicing
4. Look for a kink or fold in the air line. Reroute as needed. If the preceding steps do not solve the problem, it is possibly caused by a failed air spring — either a factory defect or an operating problem. Please call Air Lift at (800) 248-0892 for assistance. MN-207... -
Page 12: Frequently Asked Questions
No. Adding air springs will not change the weight ratings (GAWR, GCWR and/or GVWR) of a vehicle. Exceeding the GVWR is dangerous and voids the Air Lift warranty. Q. Is it necessary to keep air in the air springs at all times and how much pressure will they need? The minimum air pressure should be maintained at all times. -
Page 13: Guidelines For Adding Air
17 Replacement Information If you need replacement parts, contact the local dealer or call Air Lift customer service at (800) 248-0892. Most parts are immediately available and can be shipped the same day. Contact Air Lift Company customer service at (800) 248-0892, first if: •... -
Page 14: Warranty And Return Policy
(elsewhere, (517) 322-2144) for a Returned Materials Authorization (RMA) number. Returns to Air Lift can be sent to: Air Lift Company • 2727 Snow Road • Lansing, MI • 48917. Product failures resulting from abnormal use or misuse are excluded from this warranty. The loss of use of the product, loss of time, inconvenience, commercial loss or consequential damages is not covered. -
Page 15: T-12795 Template
T-12795 Template... - Page 20 Thank you for purchasing Air Lift products — the professional installer’s choice! Air Lift Company • 2727 Snow Road • Lansing, MI 48917 or PO Box 80167 • Lansing, MI 48908-0167 Toll Free (800) 248-0892 • Local (517) 322-2144 • Fax (517) 322-0240 • www.airliftcompany.com...
