Air Lift 60823 Installation Manual

2008- scion xb
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Kit 60823
2008-
Scion xB

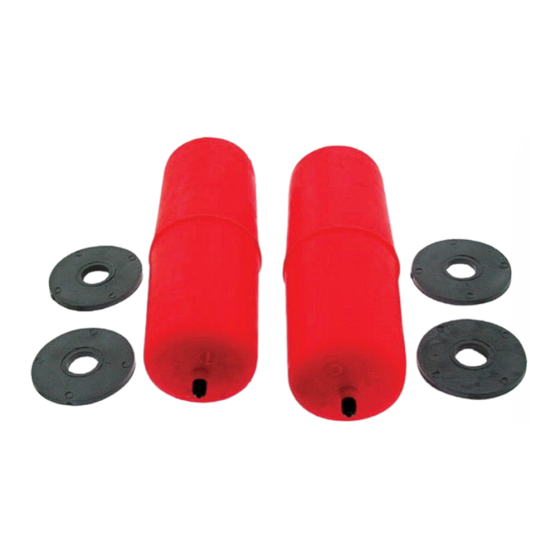

Cover illustration
Cover illustration
may not depict
may not depict
actual kit.
actual kit.
INSTALLATION GUIDE
For maximum effectiveness and safety,
please read these instructions completely
before proceeding with installation.
Failure to read these instructions can result in an
incorrect installation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 60823 and is the answer not in the manual?

Questions and answers

Related Manuals for Air Lift 60823

Summary of Contents for Air Lift 60823

  • Page 1 Kit 60823 2008- Scion xB Cover illustration Cover illustration may not depict may not depict actual kit. actual kit. INSTALLATION GUIDE For maximum effectiveness and safety, please read these instructions completely before proceeding with installation. Failure to read these instructions can result in an...
  • Page 2 Air Lift 1000 MN-739...

  • Page 3: Table Of Contents

    Notation Explanation ..........2 Installing the Air Lift 1000 System ....3 Hardware List .

  • Page 4: Introduction

    Air Lift Company reserves the right to make changes and improvements to its products and publications at any time. Contact Air Lift Company at (800) 248-0892 or go online at www.airliftcompany.com for the latest version of this manual.

  • Page 5: Installing The Air Lift 1000 System

    5/16” Flat washer ........2 21236 Tee ............. 1 21455 Valve ............2 Missing or damaged parts? Call Air Lift customer STOP! service at (800) 248-0892 for a replacement part. Installing the Air Lift 1000 System GETTING STARTED 1. Jack up the rear of the vehicle or raise on a hoist. Support the frame with safety stands (Fig.

  • Page 6: Installing The Air Line

    Air Lift 1000 Valve stem at the top Install the protector on the top fig. 3 fig. 4 5. Push the air spring up within the coil by hand or with a blunt instrument such as a spoon- type tire iron.
  • Page 7 Air Lift 1000 Use this procedure for all air line connections: a. Slide the air line clamp onto the air line. b. Push the air line over the barbed stem. fig. 5 c. Compress the ears on the air line clamp with pliers and slide it forward to fully cover the barbed section.

  • Page 8: Dual Air Line Routing

    Air Lift 1000 DO NOT INFLATE AIR SPRINGS BEFORE READING THE MAINTENANCE AND CAUTION OPERATION SECTION. 11. Continue to “Completing the Installation.” DUAL AIR LINE ROUTING TO PREVENT AIR LINE FROM MELTING, KEEP IT AT LEAST 8” FROM ExHAUST CAUTION SYSTEM.

  • Page 9: Maintenance And Servicing

    Air Lift 1000 Maintenance and Servicing Minimum Air Pressure Maximum Air Pressure 5 PSI 35 PSI FAILURE TO MAINTAIN CORRECT MINIMUM PRESSURE (OR PRESSURE PROPORTIONAL TO LOAD), BOTTOMING OUT, OVER-ExTENSION OR RUBBING AGAINST ANOTHER COMPONENT WILL VOID THE WARRANTY. MAINTENANCE GUIDELINES By following these steps, vehicle owners will obtain the longest life and best results from their air springs.

  • Page 10: Product Use

    No. Adding air springs will not change the weight ratings (GAWR, GCWR and/or GVWR) of a vehicle. Exceeding the GWVR is dangerous and voids the Air Lift warranty. Q. Is it necessary to keep air in the air springs at all times and how much pressure will they need? The minimum air pressure should be maintained at all times.

  • Page 11: Guidelines For Adding Air

    Air Lift 1000 GUIDELINES FOR ADDING AIR 1. Start with the vehicle level or slightly above. 2. When in doubt, always add air. 3. For motorhomes, start with 50-100 PSI in the rear because it can be safely assumed that it is heavily loaded.

  • Page 12: Warranty And Return Policy

    (elsewhere, (517) 322-2144) for a Returned Materials Authorization (RMA) number. Returns to Air Lift can be sent to: Air Lift Company • 2727 Snow Road • Lansing, MI • 48917. Product failures resulting from abnormal use or misuse are excluded from this warranty. The loss of use of the product, loss of time, inconvenience, commercial loss or consequential damages is not covered.

  • Page 13: Replacement Information

    Air Lift 1000 Replacement Information If you need replacement parts, contact the local dealer or call Air Lift customer service at (800) 248-0892. Most parts are immediately available and can be shipped the same day. Contact Air Lift Company customer service at (800) 248-0892, first if: •...
  • Page 16 Thank you for purchasing Air Lift products — the professional installer’s choice! Air Lift Company • 2727 Snow Road • Lansing, MI 48917 or PO Box 80167 • Lansing, MI 48908-0167 Toll Free (800) 248-0892 • Local (517) 322-2144 • Fax (517) 322-0240 • www.airliftcompany.com...
