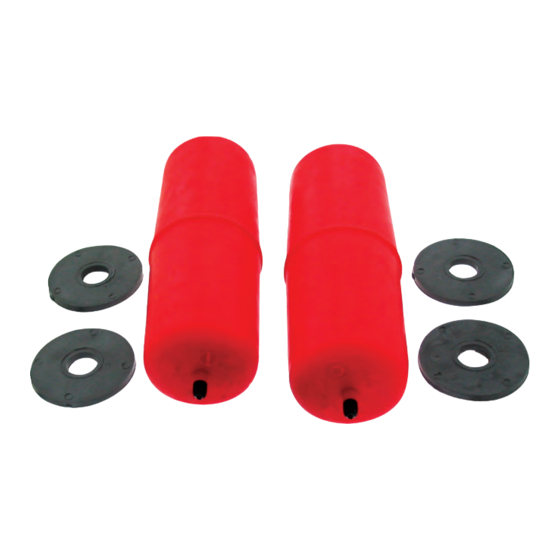

Kit 60822
2007-2009
Kia Sorrento
Cover illustration
Cover illustration
may not depict
may not depict
actual kit.
actual kit.
INSTALLATION GUIDE
For maximum effectiveness and safety,
please read these instructions completely
before proceeding with installation .
Failure to read these instructions can result in an
incorrect installation.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Air Lift 60822
Summary of Contents for Air Lift 60822
- Page 1 Kit 60822 2007-2009 Kia Sorrento Cover illustration Cover illustration may not depict may not depict actual kit. actual kit. INSTALLATION GUIDE For maximum effectiveness and safety, please read these instructions completely before proceeding with installation . Failure to read these instructions can result in an...
- Page 2 Air Lift 1000 MN-729...
-
Page 3: Table Of Contents
Installing the Air Lift 1000 System . . . . . . . . . . . . . . . . . -
Page 4: Introduction
. Air Lift Company reserves the right to make changes and improvements to its products and publications at any time. Contact Air Lift Company at (800) 248-0892 or go online at www .airliftcompany .com for the latest version of this manual . -
Page 5: Installing The Air Lift 1000 System
Valve ............2 Missing or damaged parts? Call Air Lift customer STOP! service at (800) 248-0892 for a replacement part. -
Page 6: Installing The Air Line
Air Lift 1000 Valve stem at the top fig. 3 5. Push the air spring up within the coil by hand or with a blunt instrument such as a spoon- type tire iron . When the air spring is completely within the coil, remove the cap and allow the air spring to assume its “as molded”... - Page 7 Air Lift 1000 6. Push the air line onto the stem, covering all the barbs (fig. 5). With the pliers, slide the air line clamp upward until it fully covers the barbed section . 7. Push the remaining air line over the last fitting on the tee and route it along the frame to the desired inflation valve location.
-
Page 8: Dual Air Line Routing
Air Lift 1000 DUAL AIR LINE ROUTING TO PREVENT AIR LINE FROM MELTING, KEEP IT AT LEAST 8” FROM ExHAUST CAUTION SYSTEM. 1. Select a location for the inflation valves in the rocker panel flange, or rear bumper, assuring that each valve will be protected and accessible with an air hose . -
Page 9: Maintenance And Servicing
Air Lift 1000 Maintenance and Servicing Minimum Air Pressure Maximum Air Pressure 5 PSI 35 PSI FAILURE TO MAINTAIN CORRECT MINIMUM PRESSURE (OR PRESSURE PROPORTIONAL TO LOAD), BOTTOMING OUT, OVER-ExTENSION OR RUBBING AGAINST ANOTHER COMPONENT WILL VOID THE WARRANTY. MAINTENANCE GUIDELINES By following these steps, vehicle owners will obtain the longest life and best results from their air springs . -
Page 10: Product Use
No. Adding air springs will not change the weight ratings (GAWR, GCWR and/or GVWR) of a vehicle. Exceeding the GWVR is dangerous and voids the Air Lift warranty. Q . Is it necessary to keep air in the air springs at all times and how much pressure will they need? The minimum air pressure should be maintained at all times . -
Page 11: Guidelines For Adding Air
Air Lift 1000 GUIDELINES FOR ADDING AIR 1. Start with the vehicle level or slightly above. 2 . When in doubt, always add air . 3. For motorhomes, start with 50-100 PSI in the rear because it can be safely assumed that it is heavily loaded . -
Page 12: Warranty And Return Policy
Air Lift 1000 ....Lifetime Limited Load Controller (I) ... . 2 Year Limited RideControl . -
Page 13: Replacement Information
Air Lift 1000 Replacement Information If you need replacement parts, contact the local dealer or call Air Lift customer service at (800) 248-0892. Most parts are immediately available and can be shipped the same day. Contact Air Lift Company customer service at (800) 248-0892, first if: •... - Page 16 Thank you for purchasing Air Lift products — the professional installer’s choice! Air Lift Company • 2727 Snow Road • Lansing, MI 48917 or PO Box 80167 • Lansing, MI 48908-0167 Toll Free (800) 248-0892 • Local (517) 322-2144 • Fax (517) 322-0240 • www.airliftcompany.com...
