Summary of Contents for Air Lift 60819

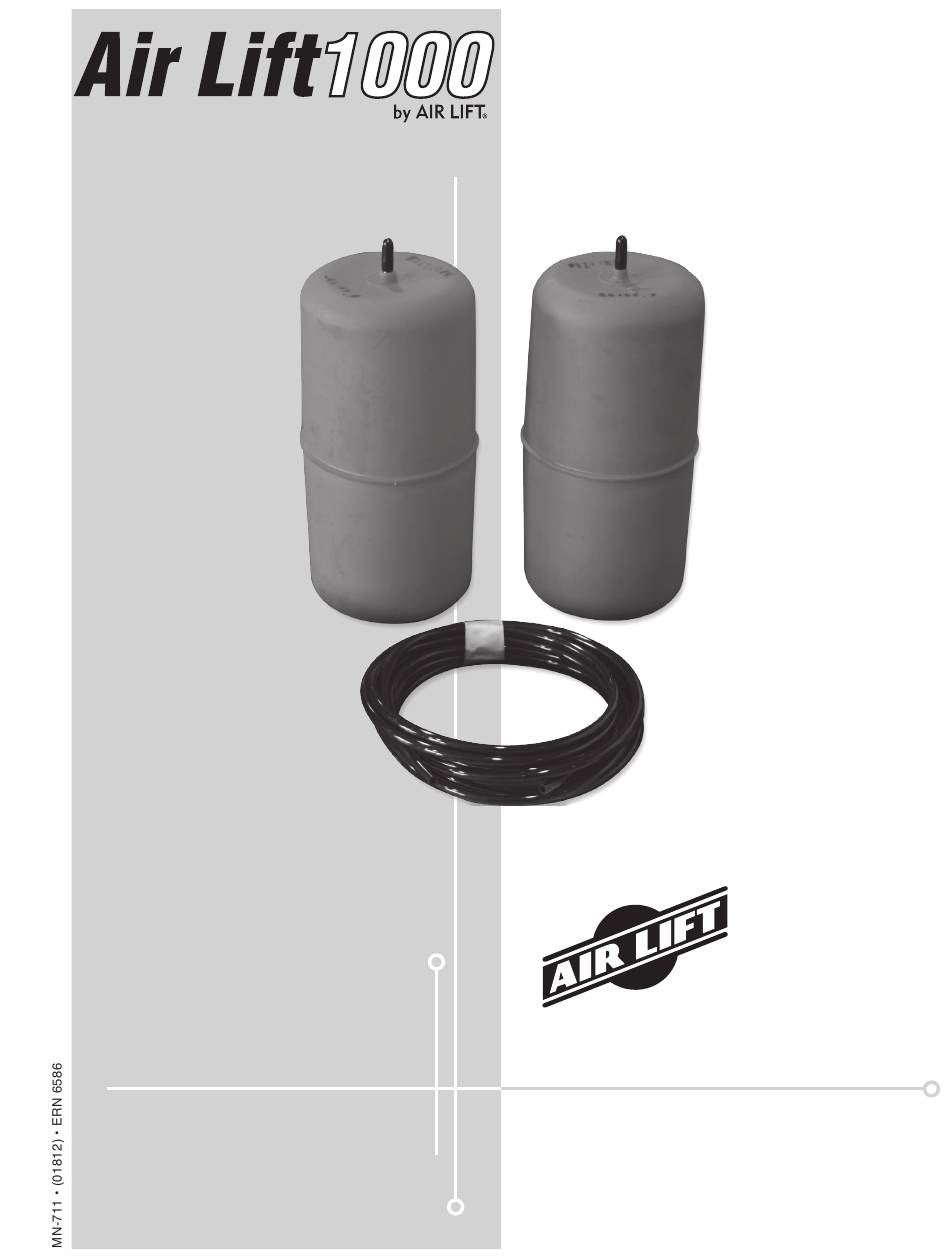

- Page 1 Kit 60819 Ford/Lincoln Edge MKX 2WD & AWD Cover illustration may not depict actual kit. INSTALLATION GUIDE For maximum effectiveness and safety, please read these instructions completely before proceeding with installation. Failure to read these instructions can result in an...
-
Page 3: Table Of Contents
Installing the Air Lift 1000 System . . . . . . . . . . . . . . . . . -
Page 4: Introduction
Air Lift Company reserves the right to make changes and improvements to its products and publications at any time. Contact Air Lift Company at (800) 248-0892 or go online at www.airliftcompany.com for the latest version of this manual. -
Page 5: Installing The Air Lift 1000 System
Wheel speed sensor bolt Stabilizer bar link Brake caliper anchor plate bolts Wheel lug nuts Missing or damaged parts? Call Air Lift customer STOP! service at (800) 248-0892 for a replacement part. Installing the Air Lift 1000 System PREPARING THE VEHICLE NOTE It is recommended that all nuts and bolts removed be replaced. - Page 6 Air Lift 1000 10. Pull outward on the knuckle while lowering the jack or jack stand until the spring can be removed (fig. 2 & 3). AWD: pull the half shaft through the knuckle opening and secure aside. THE SPRING IS UNDER EXTREME COMPRESSION. CARE MUST BE TAKEN AT ALL CAUTION TIMES.
- Page 7 Air Lift 1000 Speed Sensor/Bolt/Clip Toe Link Upper Control fig. 2 Lower Shock and Mount fig. 3 Support the lower control arm with a jack Existing slot in side of frame above Hose spring seat Grommet fig. 4 MN-711...
-
Page 8: Installing The Air Line
Air Lift 1000 INSTALLING THE AIR LINE A tee air line installation is recommended. If the weight in the vehicle varies from one side to the other and unequal pressures are needed to level the load or compensate for axle torque transfer in racing applications, use dual air lines (see page 6). -
Page 9: Dual Air Line Routing
Air Lift 1000 7. Slide the air line clamp over the air line. Push the air line onto the fitting covering all barbs. Using pliers, slide the air line clamp forward until it fully covers the barbed section (fig. 10). -
Page 10: Completing The Installation
Air Lift 1000 6. Slide a clamp onto the air line and push the air line over the fitting, covering all the barbs. With pliers slide the air line clamp forward until it fully covers the barbed section (see fig. 10). -
Page 11: Product Use
No. Adding air springs will not change the weight ratings (GAWR, GCWR and/or GVWR) of a vehicle. Exceeding the GVWR is dangerous and voids the Air Lift warranty. Q . Is it necessary to keep air in the air springs at all times and how much pressure will they need? The minimum air pressure should be maintained at all times. -
Page 12: Guidelines For Adding Air
Unlevel Replacement Information If you need replacement parts, contact the local dealer or call Air Lift customer service at (800) 248-0892. Most parts are immediately available and can be shipped the same day. Contact Air Lift Company customer service at (800) 248-0892, first if: •... -
Page 13: Warranty And Return Policy
Air Lift 1000 ....Lifetime Limited Load Controller (I) ... . 2 Year Limited RideControl . - Page 16 Thank you for purchasing Air Lift products — the professional installer’s choice! Air Lift Company • 2727 Snow Road • Lansing, MI 48917 or PO Box 80167 • Lansing, MI 48908-0167 Toll Free (800) 248-0892 • Local (517) 322-2144 • Fax (517) 322-0240 • www.airliftcompany.com...
