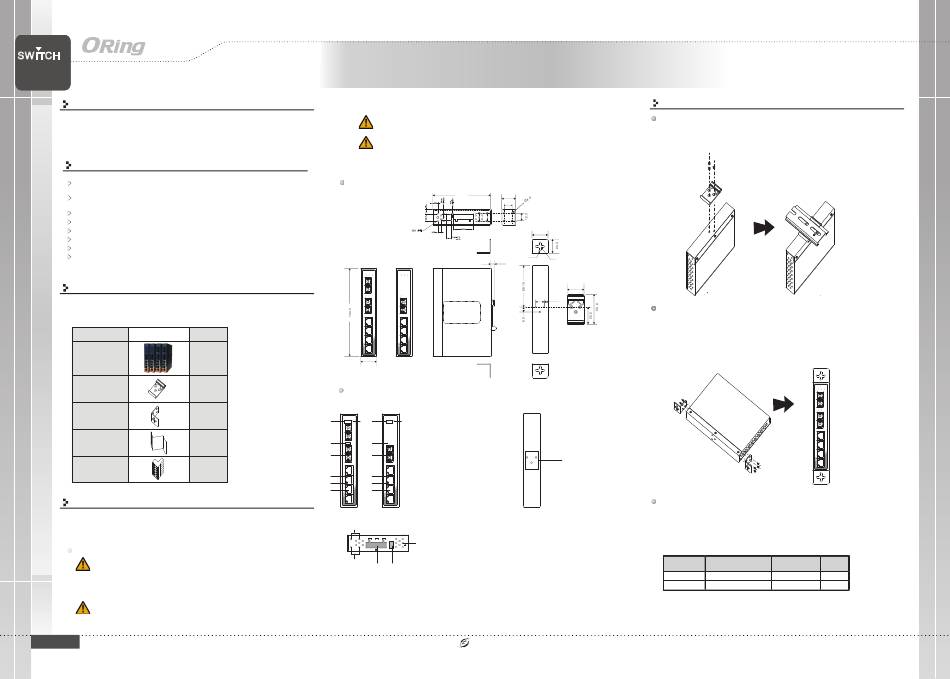

ORiNG IES-1041FX-MM-SC Quick Installation Manual

SWITCH
I N D U S T R I A L
Q I
uick nstallation
Introduction
IES-1041FX/1042FX series are unmanaged Ethernet switches with 4 x 10/100Base-T(X)
and 100Base-FX ports. IES-1041FX/1042FX series
configurable relay output alarm and rigid IP-30 housing. In addition, the wide operating
temperature range from -40 to 75oC can satisfy most of operating environment.
Features
IES-1041FX series provide 4x10/100Base-T(X) and 1x100Base-FX single/multi-
mode fiber ports
IES-1042FX series provide 4x10/100Base-T(X) and 2x100Base-FX single/multi-
mode fiber ports
Support auto-negotiation and auto-MDI/MDI-X
Support store and forward transmission
Support flow control
Provide Relay output
Compact size for easily installation
Rigid IP-30 housing design
DIN-Rail and wall mounting enable
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative for
assistance.
Contents Pictures
IES-1080A
DIN-rail Kit
Wall-mount Kit
QIG
6-pin terminal block
Preparation
Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Installation of the equipment in a rack should be such
that the amount of air flow required for safe operation of the equipment is
not compromised.
Q I G
IES-1041/1042FX
IES-1041/1042FX Series
G
uide
support redundant power inputs,
Dimension
IES-1042FX
P1 P2 Fault
TX
6
RX
LINK/
ACT
TX
5
RX
4
3
Number
2
1
X 1
26.1
X 1 Panel Layouts
Front View
X 2
IES-1042FX
2
1 1
P1 P2 Fault
TX
6
RX
X 1
3 LINK/ 3
ACT
TX
5
4 4
RX
X 1
4
5 5
3
6 6
7 2 7
1
Top Panel
1
PWR-2 1A@24V
V2+ V2-
1
2
1907-200-E1042FXXX2-FX010
Mechanical Loading: Mounting of the equipment in the rack should be such that a
hazardous condition is not achieved due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the equipment to
the supply circuit and the effect that overloading of the circuits might have on overcurrent
protection and supply wiring. Appropriate consideration of equipment nameplate ratings
should be used when addressing this concern.
Unit =mm (Tolerance ±0.5mm)
94.9 24.3
13.1
25.6
Ø3.0
Ø5.9
8.5
IES-1041FX
P1 P2 Fault
LINK/ACT
14.0 6.05
TX
5
RX
4
3
2
1
Rear View
1. Din-rail screw holes
IES-1041FX 1. PWR indicators
2
P1 P2 Fault
2. Faulty relay indicator
3. Fiber port link/act indicator
4. Fiber port
LINK/ACT
5. LAN port link/act indicator
TX
6. LAN port duplex indicator
5
7. LAN ports
RX
4
3
2
1
1. Wall-mount screw holes
PWR-1 DC12-48V 2. Terminal blocks: PWR1, PWR2
4
, Relay
V1+ V1-
3. DIP Switch
4. Ground wire.
3
PRINTED ON RECYCLED PAPER
Industrial Unmanaged Switch
Installation
DIN-rail Installation
Step 1: Slant the switch and screw the Din-rail kit onto the back of the switch, right in
the middle of the back panel.
Step 2: Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch
clicks into the rail firmly.
25.0
Wall-mounting
Step 1: Screw the wall-mount kit onto the rear panel of the switch. A total of six
screws are required, as shown below.
Step 2: Use the switch, with wall mount plates attached, as a guide to mark the
correct locations of the four screws.
Step 3: Insert a screw head through the large parts of the keyhole-shaped apertures,
and then slide the switch downwards. Tighten the screws for added stability.
1
Network Connection
The switch provides standard Ethernet ports. According to the link type, the switch uses
CAT 3,4,5,5e UTP cables to connect to any other network devices (PCs, servers,
switches, routers, or hubs). Please refer to the following table for cable
specifications.
Cable Types and Specifications:
Cable Type
10BASE-T Cat. 3, 4, 5 100-ohm
100BASE-TX Cat. 5 100-ohm UTP
Version 2.0
IES-1042FX
P1 P2 Fault
TX
6
RX
LINK/
ACT
TX
5
RX
4
3
2
1
Max. Length Connector
UTP 100 m (328 ft) RJ-45
UTP 100 m (328 ft) RJ-45
Quick Installation Guide
