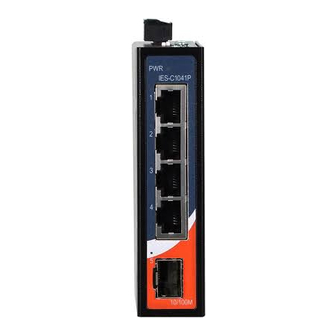

ORiNG IES-C1041P Hardware Installation Manual

Hardware Installation Guide
Unmanaged Fast Ethernet Switches
IES-C1041P
IES-C1062P
1. Introduction
Ethernet Switches are designed with a very compact housing size and are fitted with a
robust housing. To ensure reliable, error-free operation, and to prevent damage or injury,
please read the operating instructions, all safety information provided in this document
and any other safety information that were supplied with the product.
2. Safety notice
Switch off the electrical power before removing the power connection!
Éteignez le courant avant de le débrancher!
The device heats up during operation. Allow the unit to cool down or use
protection gloves when carrying out any work.
L'équipement se réchauffe pendant le fonctionnement. Laissez l'appareil
refroidir ou utilisez des gants de protection lorsque vous effectuez des
travaux.
The device may only be connected to the supply voltage shown on the
product label. Higher voltage than specified will destroy the device.
L'appareil ne peut être connecté qu'à la tension d'alimentation indiquée
sur l'étiquette du produit. Une tension supérieure à celle spécifiée peut
endommager l'appareil.
The device must be supplied by a class 2 source.
L'équipement doit être fourni par une source d'alimentation de classe 2.
Installation, commissioning and maintenance may only be performed by
qualified electricians.
Seuls les électriciens qualifiés peuvent effectuer l'installation, la mise en
service et la maintenance.
Observe the operating instructions.
Suivez les instructions de fonctionnement.
 Indoor use and pollution degree 2, it must be wiped with a dry cloth for
clean up the device and label.
L'utilisation intérieure et la contamination sont de classe 2 et doivent
être essuyées avec un chiffon sec pour nettoyer l'équipement et les
étiquettes.
 Shall be mounted in the Industrial Control Panel and ambient
temperature is not exceed 60 degrees C.
Doit être installé dans le panneau de commande industriel, la
température ambiante ne dépasse pas 60 ℃
Intended use
The device is intended for the realization of communication networks within an industrial
environment, The device may only be used within the scope of the specified technical
data. The device is intended to be mounted to a well-grounded mounting surface, such
as a metal panel. Any other use may result in unintentional malfunction and damage.
Observing the documentation is part of the intended use.
Environmental conditions
This equipment is intended to be used in a restricted access location.
When planning the installation site make sure that the ambient temperature during
operation will not exceed the temperature given in the technical data.
Also make sure that the air flow will not be compromised by other devices.
Ensure that the mounted and wired device is not exposed to any mechanical stress
1
3. Package Checklist
Your Ethernet Switch is shipped with the following items:
 Ethernet Switch
 Hardware Installation Guide (printed)
 2-Pin Terminal connector
4. Panel Layouts
1.Terminal block for power input PWR
2.Grounding screw / Frame ground
Note: The shielding ground of the LAN port is
electrically connected to the grounding screw.
3.Power input LEDs
4.4/6 x 10/100Base -T(X)
5.1/2 X 100Base-FX SFP Ports
6.LAN port Link/Activity LED
IES-C1041P IES-C1062P
5. DIP Switch
DIP Switch Setting
Enable the Quality of Service to handle
packet priorities in two WRR queues.
QoS and ToS/DSCP priority mapping matrix
in each queue
Quality of Service ON
QoS 3bit
(QoS)
OFF Disable the Quality of service
Broadcast storm Enables broadcast storm protection (only
ON
allow maximum of 200 broadcast packets per
protection
second）for each Ethernet port.
(BSP)
OFF
Disables the broadcast storm protection
.
1
DIP Switch
Description
7.6.5.4 3.2.1.0
priority
Queues 1 0
WRR 16 1
2

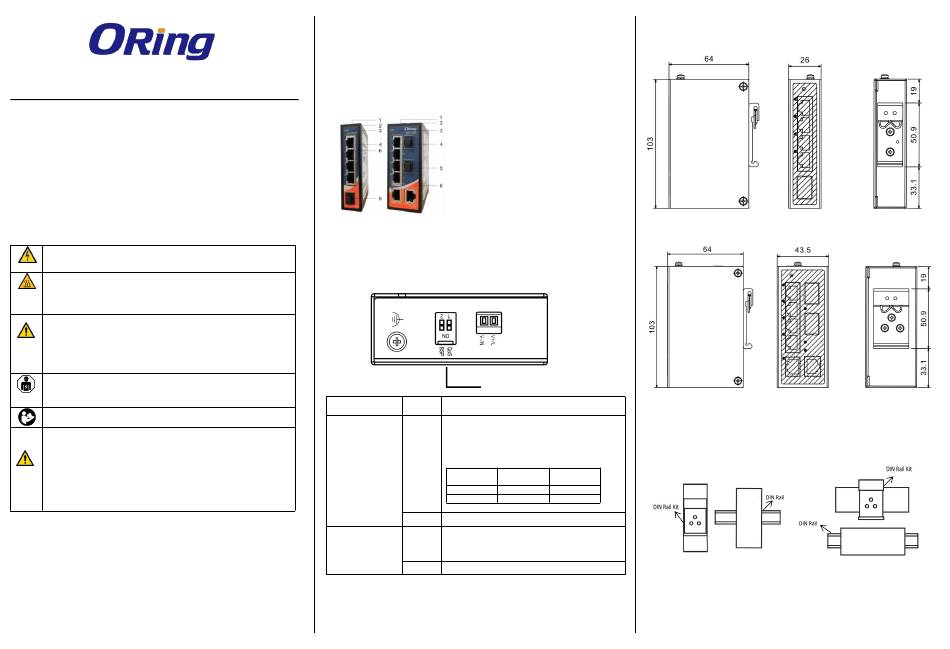

6. Mounting Dimensions
IES-C1041P (units = mm)
IES-C1062P (units = mm)
7. DIN-Rail Mounting
The Switch support horizontal and vertical installation.The DIN rail kit can be
adjusted according to the actual application to meet different installation
requirements. .
Horizontal Installation
3
Vertical installation
