Positioning
Positioning holes
holes for
for Dowelpins
dowelpins
Mounting holes with
Mounting holes with
inner M5 thread
inner M5 thread

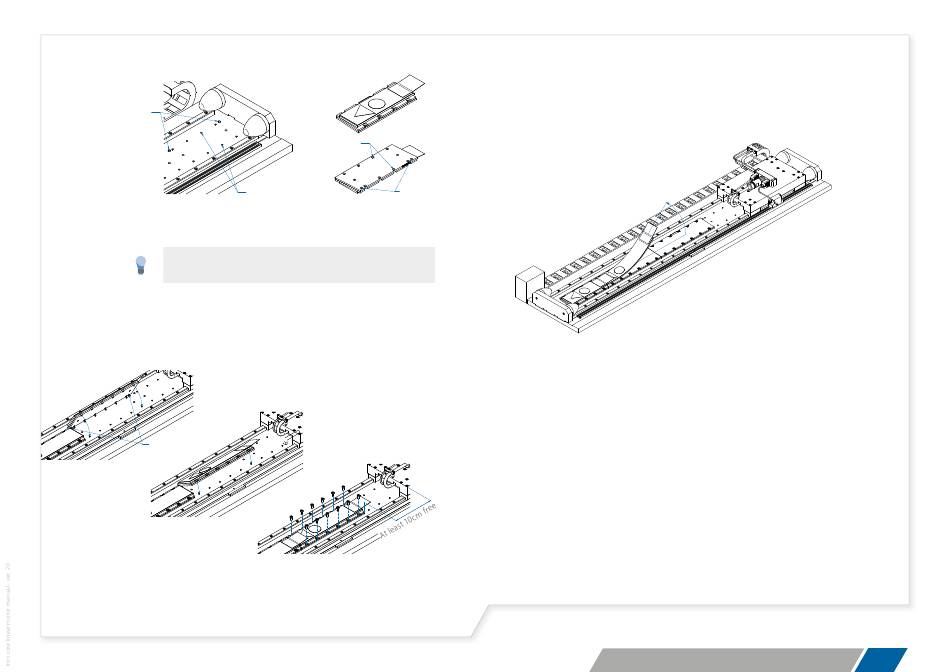

Figure 4.7: Positioning and mounting holes in magnet plates and axis.
Use dowel pins with M3 internal thread to facilitate dismantlement
afterwards.
3. Take care that the magnet plate is oriented correctly and fix the
magnet plate to the mounting frame using all mounting holes.
See figure 4.8.
Dowelpins for
allignment
Figure 4.8: Fixing the magnet plate.
Mounting holes
Mounting holes
Positioning
Positioning holes
holes
4. Remove the protection plate from the mounted magnet plate
and move the slide to the other end of the stroke. Secure the
slide against unwanted movements. See figure 4.9.
Figure 4.9: Removal of the protection plate.
The slide can be secured against unwanted movement by reposition-
ing a protection plate in front of the slide. See figure 4.10.
