MB 30 SWING-AWAY Video Camera
Matte Box
(P-MB-30)
A s s e m b l y M a n u a l

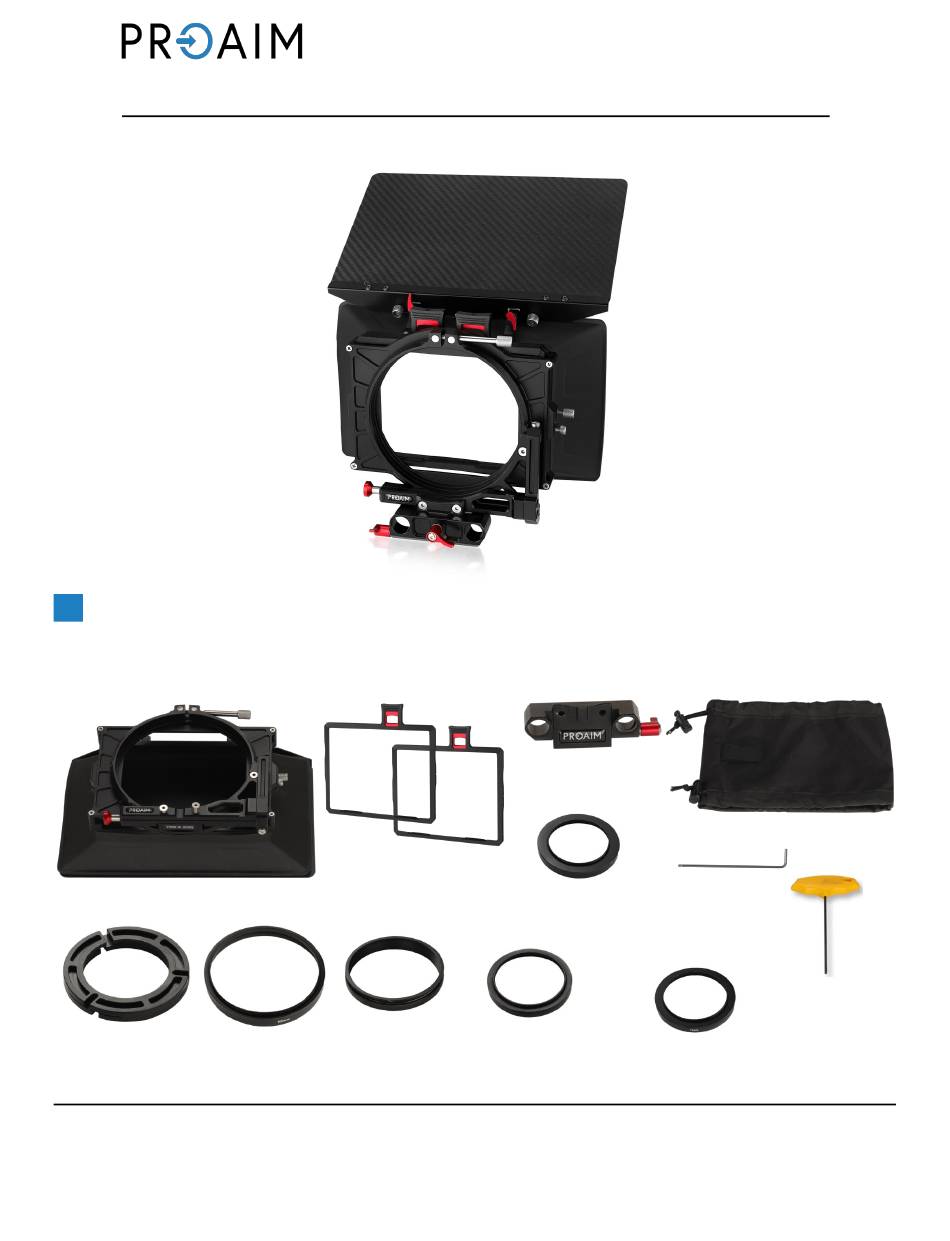

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
15mm LWS Rod
Bracket
124mm Fabric Knicker
2 x 4 x 5.6" Filter Tray
L-Type
Matte Box
(OD-87)-(ID-77) mm
Allen Key
Threaded Adapter Ring
(Size : 2mm)
T-Type Allen Key
(Size : 2.5mm)
(OD-87)-(ID-82)
(OD-87)-(ID-72)
124-87mm Plastic
124mm
(OD-87)-(ID-67) mm
mm Threaded
mm Threaded
Adapter Ring
Metal Ring
Threaded Adapter Ring
Adapter Ring
Adapter Ring
