Dynamic Wedge Tilt Levelling Plate
(P-MWP-D)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything
that is listed below.
Screw Bolt with
Washer (1/4")
Screw Bolt with
Washer (3/8")

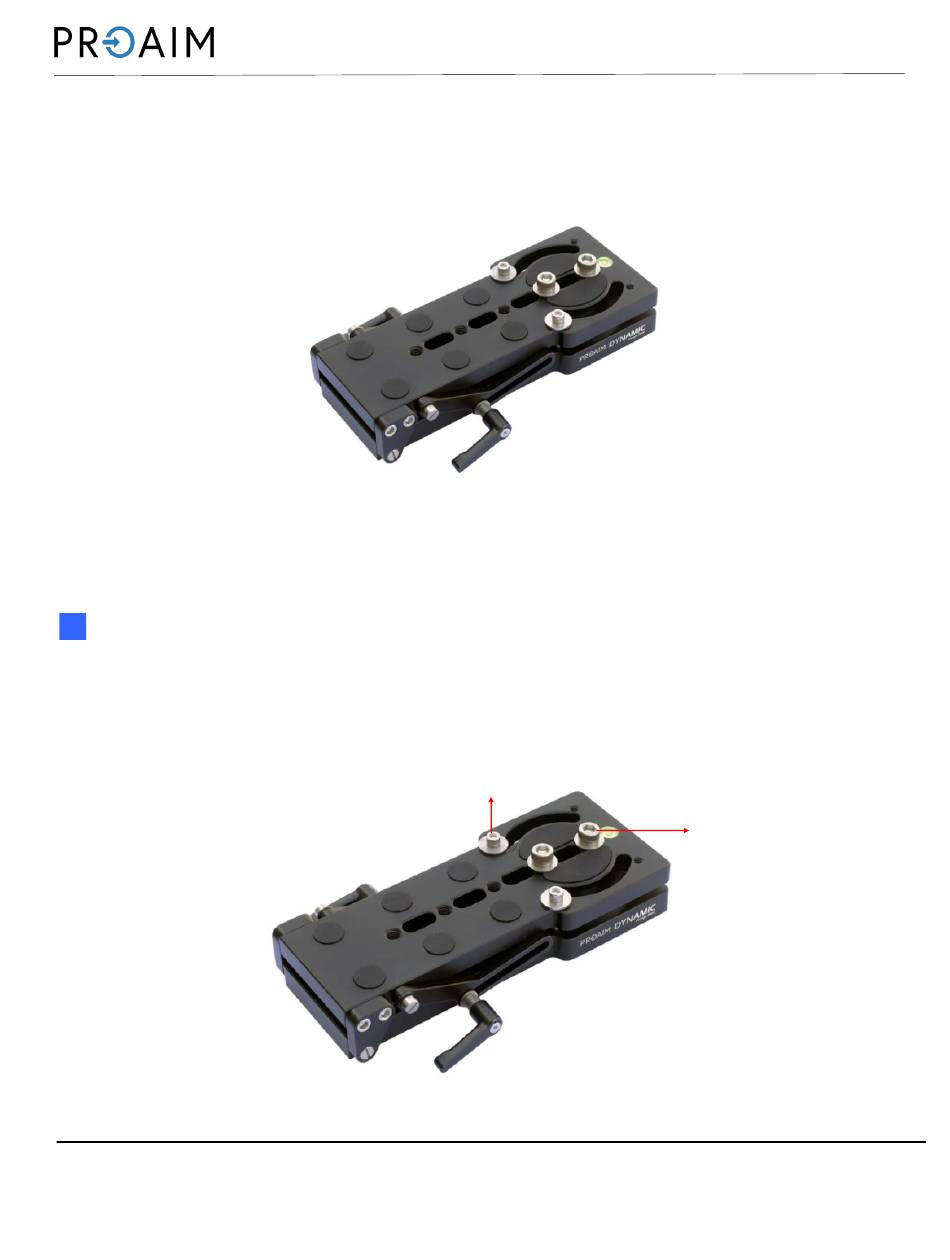

Wedge Plate
