Mallia Senses with Netatmo
TM

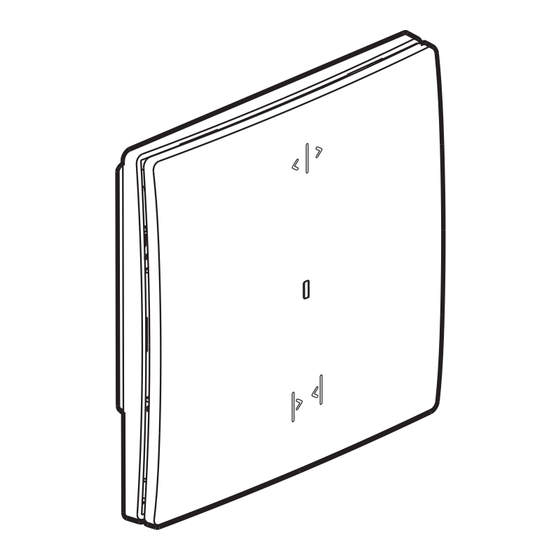

Connected curtain/roller blind switches
2 815 11DS/MB/MW

1. USE

For local or remote control of curtains/roller shutters.
Can be combined with one or more wireless curtains/roller shutters controls.
Can be installed in place of an existing curtains/roller shutters switch in a flush-mounting box 25 mm deep (minimum).
The Mallia Senses with Netatmo solution is compatible with curtains, roller shutters with a mechanical or electronical stop, controlled by a standard wired
switch.
Caution: Must be connected to the neutral.
Not compatible with only radio-controlled roller shutter motors.

2. RANGE

Connected curtain/roller blind switches with neutral.
Equipped with an LED indicator.
Hidden reset button used to return to factory settings.
Complete delivered with protection film and 2 screws M3.5 for BS boxes.

3. DIMENSIONS (mm)

B
A B
86 86

4. CONNECTION

Terminal type : with screws
Terminal capacity: 2 x 1.5 mm - 2 x 2.5 mm
2
Stripping length: 8 mm
Technical data sheet: F03713EN/01
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 55 06 87 87 - Fax: +33(0)5 55 06 88 88
www.legrand.com
Description
C
D
C D
32.5 12
- 1 x 4 mm
2 2
Updated: 01/09/2023
Cat. Nos: 2 815 10DS/MB/MW - 2 815 11DS/MB/MW
2 815 10DS/MB/MW
Silver
2 815 11DS
1-gang
2 815 10DS
2-gang

5. OPERATION

Integrated time delay for up/down inversion: 500 ms
1-gang: 2 815 11DS/MB/MW
STOP
Black White
2 815 11MB 2 815 11MW
1-gang 1-gang
2 815 10DS 2 815 10DS
2-gang 2-gang
Up when pressed at the top:
- short press opens raises to the top
- long press opens raises until released
LED indicator:
- useful during installation
Down when pressed at the bottom:
- short press closes lowers to the bottom
- long press closes lowers until released
RESET button
used to return to factory settings
Created: 14/04/2022
