Assembly and operating instructions
Barrel pump
DULCO
Trans 25/700 PP
®
EN
A2266
Please carefully read these operating instructions before use. · Do not discard.
BARRELPUMP.IR
The operator shall be liable for any damage caused by installation or operating errors.
The latest version of the operating instructions are available on our homepage.
983317
Original Operating Instructions (2006/42/EG) / Target group: commercial use
BA DTR 002 10/16 EN
Advertisement
Table of Contents
Related Manuals for ProMinent DULCO Trans 25/700 PP
Summary of Contents for ProMinent DULCO Trans 25/700 PP
- Page 1 Assembly and operating instructions Barrel pump DULCO Trans 25/700 PP ® A2266 Please carefully read these operating instructions before use. · Do not discard. BARRELPUMP.IR The operator shall be liable for any damage caused by installation or operating errors. The latest version of the operating instructions are available on our homepage. 983317 Original Operating Instructions (2006/42/EG) / Target group: commercial use BA DTR 002 10/16 EN...
- Page 2 Supplemental instructions General non-discriminatory approach In order to make it easier to read, this document uses the male form in grammatical structures but with an implied neutral sense. It is aimed equally at both men and women. We kindly ask female readers for their understanding in this simplification of the text.
-
Page 3: Table Of Contents
Table of contents Table of contents Function, Resistance and Scope of Delivery......4 Safety Chapter..............6 2.1 Labelling of Warning Information........6 2.2 Users' qualifications............7 2.3 Intended Use..............8 2.4 Foreseeable Misuse............. 8 2.5 Safety................8 2.5.1 Safety Information for Pump and Motor..... 9 2.5.2 Safety Information for the Pump Nozzle.... -
Page 4: Function, Resistance And Scope Of Delivery

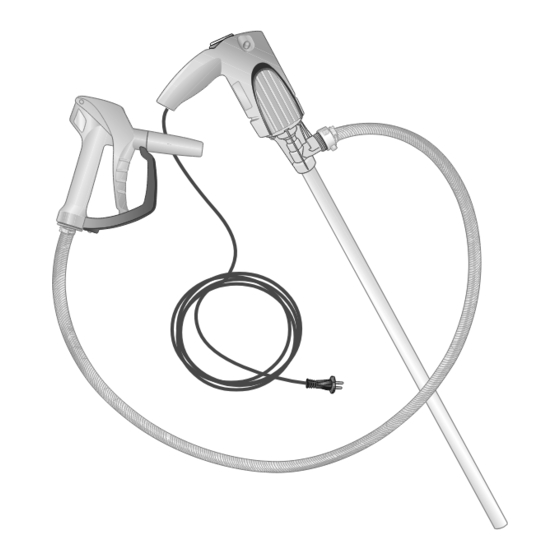

External and internal pipe, pump nozzle Drive shaft Hastelloy ® Rotor ETFE Metering hose PVC with woven inner layer The resistance list, which is continually updated, can be found on the manufacturer’s homepage www.prominent.com Nameplate A2356 Fig. 1: Nameplate on the pump housing. BARRELPUMP.IR... - Page 5 Function, Resistance and Scope of Delivery Scope of delivery A2267 Fig. 2: Scope of delivery. PVDF pump nozzle assembled on the PVC Barrel pump DULCO Trans 25/700PP. ® pump hose. Packaging. Installation and Operating Instructions. PVC hose with hose connection. Overview of the key components A2271 Fig.
-
Page 6: Safety Chapter
Safety Chapter Safety Chapter 2.1 Labelling of Warning Information Introduction These operating instructions provide information on the technical data and functions of the product. These operating instructions pro‐ vide detailed warning information and are provided as clear step- by-step instructions. The warning information and notes are categorised according to the following scheme. -
Page 7: Users' Qualifications
Electricians must comply with the provisions of the applicable statutory direc‐ tives on accident prevention. Customer Service depart‐ Customer Service department refers to service technicians, who have ment received proven training and have been authorised by ProMinent to work on the system. BARRELPUMP.IR... -
Page 8: Intended Use
Safety Chapter Note for the system operator The pertinent accident prevention regulations, as well as all other generally acknowledged safety regulations, must be adhered to! 2.3 Intended Use The barrel pump is used for the fast and safe drainage or transfer of storage tanks, drums and container. -
Page 9: Safety Information For Pump And Motor
Safety Chapter 2.5.1 Safety Information for Pump and Motor WARNING! Danger from hazardous substances! Possible consequence: Fatal or very serious injuries. Please ensure when handling hazardous substances that you have read the latest safety data sheets pro‐ vided by the manufacture of the hazardous substance. The actions required are described in the safety data sheet. -
Page 10: Safety Information For The Pump Nozzle
Safety Chapter Do not expose the pump to weathering. Clean the pump after each use, referring to the material safety data sheets issued by the manufacturer of the hazardous material. Do not store the pump in aggressive fumes. 2.5.2 Safety Information for the Pump Nozzle WARNING! Danger from hazardous substances! Possible consequence: Fatal or very serious injuries. -
Page 11: Sound Pressure Level
Safety Chapter Clean the pump nozzle after each use, referring to the material safety data sheets issued by the manufacturer of the haz‐ ardous material. Do not store the pump nozzle in aggressive fumes. 2.6 Sound pressure level The sound pressure level is < 70 dB (A). This value was measured on the manufacturer's test stand. -
Page 12: Storage And Transport
Storage and Transport Storage and Transport Ä Chapter 2.2 ‘Users' User qualification: instructed user, see qualifications’ on page 7 Environmental conditions for storage and transport: Permissible ambient temperature: +1 °C ... +40 °C. Humidity: maximum 90 % relative air humidity, non-con‐ densing. -
Page 13: Assembly And Commissioning
Assembly and Commissioning Assembly and Commissioning Ä Chapter 2.2 ‘Users' User qualification: instructed user, see qualifications’ on page 7 4.1 Assembly of the Pump A2269 Fig. 4: Assembly. Check whether there is a seal (1) in the threaded connector. Manually tighten the threaded connector clockwise. 4.2 Motor Description and Overcurrent Tripping Air-ventilated collector motor with 2-stage switch and overcurrent protection switch. -
Page 14: Operation
Operation Operation Ä Chapter 2.2 ‘Users' User qualification: instructed user, see qualifications’ on page 7 WARNING! Electrical voltage Possible consequence: Fatal or very serious injuries. – Before using, check the mains connection cable for damage. – Keep the mains connection cable away from sol‐ vents. - Page 15 Operation A2268 Fig. 5: 2-stage switch (1). Place the pump in the liquid and fix the pump to the container using the integral grip (2). Check whether the manual lever of the pump nozzle returns automatically to its starting position. ð...
-
Page 16: Cleaning After Each Use
Cleaning After Each Use Cleaning After Each Use Ä Chapter 2.2 ‘Users' User qualification: instructed user, see qualifications’ on page 7 WARNING! Change of medium = Clean the pump Hazard from the chemical incompatibility of the media. Possible consequence: Health risk and/or damage to the pump and/or medium. -
Page 17: Repair, Faults And Spare Parts
Repair, Faults and Spare Parts Repair, Faults and Spare Parts 7.1 Checks/Repairs Ä Chapter 2.2 ‘Users' User qualification: trained user, see qualifications’ on page 7 Replacing the hose connection or seal: Regularly check the pump in accordance with stat‐ – utory/country-specific regulations and accident pre‐... -
Page 18: Troubleshooting
Please contact Service with all other faults. For contact data see the Legal Notices. Check on the manufacturer's website www.prominent.com whether a more recent version of the operating instructions is available, as further remedies may have been developed in the meantime. -
Page 19: Spare Parts For The Motor
Repair, Faults and Spare Parts 7.3.2 Spare Parts for the Motor A2273 Fig. 8: Spare parts drawing for the motor. Spare parts list for the motor Position Description Quantity Order number Motor, complete 310 00 023 Motor housing, left half 310 00 025 Cord 925 95 906... - Page 20 Repair, Faults and Spare Parts Position Description Quantity Order number Grooved ball bearing 922 20 002 Securing washer 908 05 007 Anchor, complete with pos. 22, 23, 25, 27, 48 310 00 031 Fan blade 310 00 008 Clamp pin 914 47 002 Bolt 902 25 000...
-
Page 21: Spare Parts For The Pump
Repair, Faults and Spare Parts 7.3.3 Spare Parts for the Pump A2274 Fig. 9: Spare parts drawing for the pump. Spare parts list for the pump Position Description Quantity Order number Wetted materials Pump, complete, without motor 314 40 001 Coupling spider 303 40 637 Coupling cage... - Page 22 Repair, Faults and Spare Parts Position Description Quantity Order number Wetted materials 1-ear clamp 959 13 239 Food-safe lubricant for shaft sealing ring. 1 kg 952 00 012 BARRELPUMP.IR...
-
Page 23: Spare Parts For The Pump Nozzle
Repair, Faults and Spare Parts 7.3.4 Spare Parts for the Pump Nozzle A2358 Fig. 10: Spare parts drawing for the pump nozzle. Spare parts list for the pump nozzle Position Description Quantity Order number Wetted materials Pump nozzle, complete 001 13 127 Cylinder pin 914 72 002 Housing with nozzle, Ø... -
Page 24: Accessories
Repair, Faults and Spare Parts 7.3.5 Accessories Accessories Description Quantity Order number Barrel threaded connector (PP) Ø 25, with external thread R 2 001 14 076 BARRELPUMP.IR... -
Page 25: Use Parts Disposal/Declaration Of Decontamination
NOTICE! Regulations governing the disposal of used parts – Note the national regulations and legal standards that currently apply in your country when disposing of the product. ProMinent GmbH, Heidelberg/Germany will take back clean used parts. BARRELPUMP.IR... -
Page 26: Technical Data At A Glance
Technical Data at a Glance Technical Data at a Glance Part no. 1023085 Parameter Value/Design Pump type DULCO ® Trans 25/700 PP Feed rate*) 900 l/h (motor at stage II) Max. delivery height 5.0 m (motor at stage II) Max. viscosity <... -
Page 27: Performance Diagram
Technical Data at a Glance 9.1 Performance Diagram A2357 Fig. 11: Performance diagram. Measured values ± 10 %, meas‐ ured with water 20°C, hose and pump nozzle connected. 2-stage switch at "I" II. 2-stage switch at "II" 9.2 Dimensional Drawing with Main Dimensions DN13 A2271 Fig. -
Page 28: Ec Declaration Of Conformity For Machinery
In accordance with DIRECTIVE 2006/42/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL, Appendix I, BASIC HEALTH AND SAFETY REQUIREMENTS, section 1.7.4.2. C. ProMinent GmbH Im Schuhmachergewann 5 - 11 D - 69123 Heidelberg, Germany, hereby declare that the product specified in the following, complies... -
Page 29: Index
Index Index 1, 2, 3 ... 2-stage switch ......13 Nameplate ......4 Non-discriminatory approach . - Page 30 BARRELPUMP.IR...
- Page 31 BARRELPUMP.IR...
- Page 32 ProMinent GmbH Im Schuhmachergewann 5 - 11 D-69123 Heidelberg Telephone: +49 6221 842-0 Fax: +49 6221 842-419 Email: info@prominent.com Internet: www.prominent.com 983317, 1, en_GB BARRELPUMP.IR © 2016...
