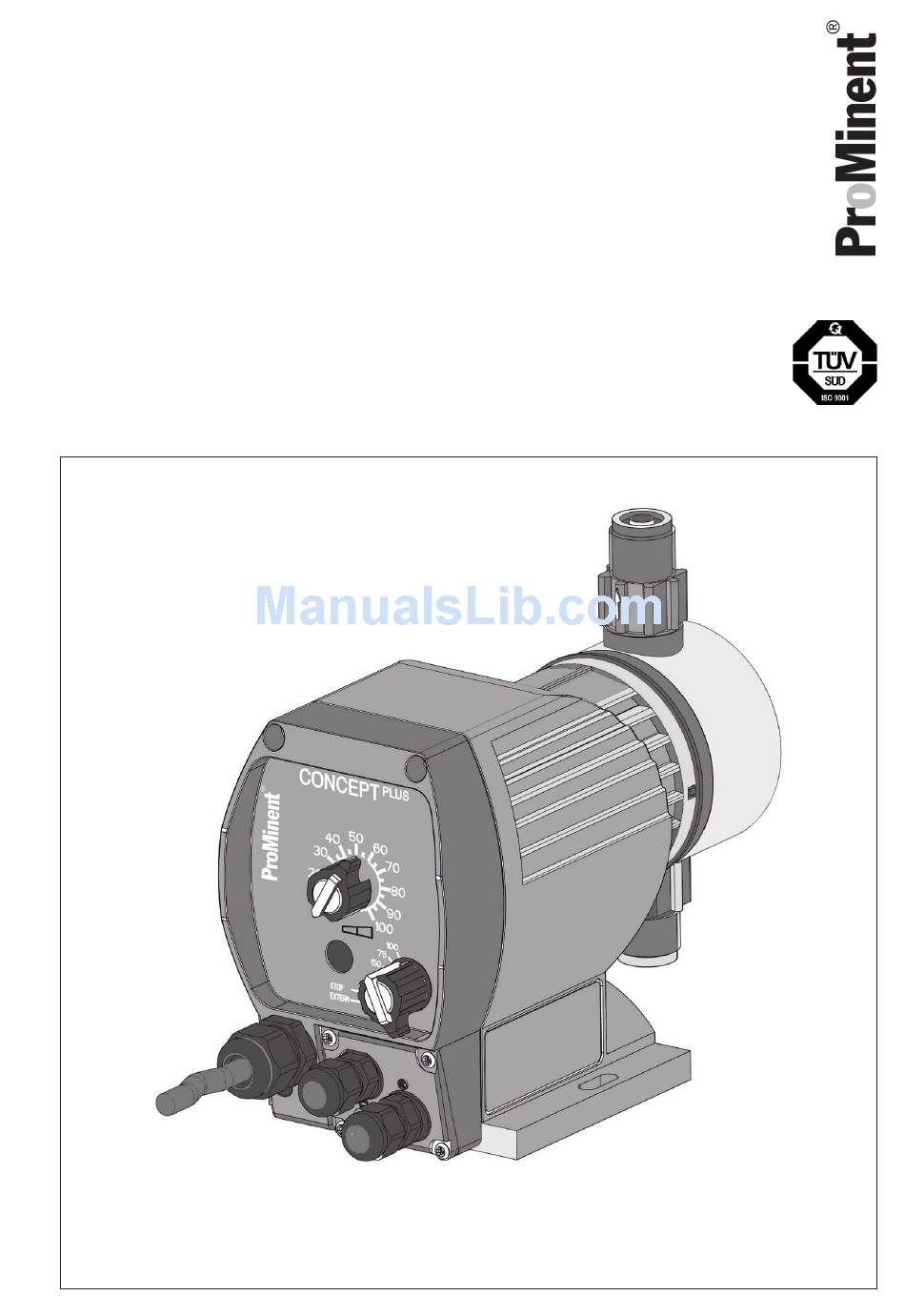

- Page 1 Betriebsanleitung Operating Instructions Mode d’emploi Instrucciones de servicio ® PLUS ProMinent CONCEPT Part No. 987033 ProMinent Dosiertechnik GmbH · 69123 Heidelberg · Germany BA CO 015 02/05 G/GB/F/E...
- Page 2 Betriebsanleitung in Deutsch von Seite 3 bis 13 Operating Instructions in English from page 15 to page 25 Mode d’emploi en francais de la page 27 à la page 37 Instrucciones de servicio en español de página 39 hasta página 49 ProMinent ®...
-
Page 3: Table Of Contents
5 Assembly and installation ............19 6 Commissioning ................20 7 Maintenance ................20 8 Repair ..................21 9 Troubleshooting ................. 21 10 Decommissioning and disposal ..........22 11 Technical data ................22 12 Accessories ................23 Declaration of Conformity ProMinent ®... -
Page 4: General User Instructions
This operating instructions manual is aimed at experts in metering pumps and their operation. If you require detailed installation instructions please order ”Gene- ® ral Operating Instructions Manual, ProMinent Solenoid Metering Pumps” (Order No. 987057). ProMinent ®... -
Page 5: Equipment Overview
5 “External actuation” socket (actuation via contact signal in ”external” operating mode; Retrofit kit) 6 “Float switch” socket (for 1-stage float switch; Retrofit kit) 7 Suction valve 8 Discharge valve The leakage bore is between the suction valve and the drive housing. ProMinent ®... -
Page 6: Type Overview/Material Details
• The pump cannot be switched off! In the case of an electrical failure, disconnect the mains cable from the power supply. • Disconnect the power cable from the mains before working on the pump. ProMinent ®... -
Page 7: Storage And Transport
ProMinent is not allowed and can lead to harm to persons or property for which no liability can be accepted. • Note all national directives which apply to the installation. -
Page 8: Commissioning
It is not otherwise possible to ensure the durability of the connection to the pump valves! • For tips on hydraulic installation, order the ”General Operating ® Instructions Manual, ProMinent Solenoid Metering Pumps” (Order No. 987057). • Check that the mains power supply and frequency match the values specified on the rating plate! •... -
Page 9: Repair
• Cleaning a valve • Replacing the diaphragm (installation instructions included with replacement diaphragm) ® For all other repairs consult your ProMinent Subsidiary. Troubleshooting The pump does not prime despite full stroke action and venting Cause: Crystalline deposits on the ball seat due to valves drying out. -
Page 10: Decommissioning And Disposal
0.5 A Switch-on peak current < 3 A for < 0.1 ms Switch-on peak current < 4 A for < 0.1 ms Fuse*: 0.315 AT Fuse*: 0.16 AT * Fuses must have approvals according to VDE, UL and CSA. ProMinent ®... -
Page 11: Accessories
The delivery scope also includes the parts required for connecting the pump. Retrofit kits Retrofit kit External + level CNP 1022099 Retrofit kit level switch CNP* 1022115 *connecting parts given suction lances and tanks provided by the customer ProMinent ®... - Page 12 Technical data PLUS CONCEPT (dimensions in mm) 92.5 M20 x1.5 10.5 33.9 56.1 105.3 98 (110*) * dimensions for pump type 0308, 0213 ProMinent ®...
-
Page 13: Declaration Of Conformity
Conformity declaration ProMinent ®...
